5.5 Calibrate pedal
After mounting the setpoint adjuster, it is necessary to calibrate the pedal. In addition,
a speed curve can be determined that influences the acceleration of the machine
head. The speed curves refer to the set maximum speed, the minimum speed and the
following pedal positions.

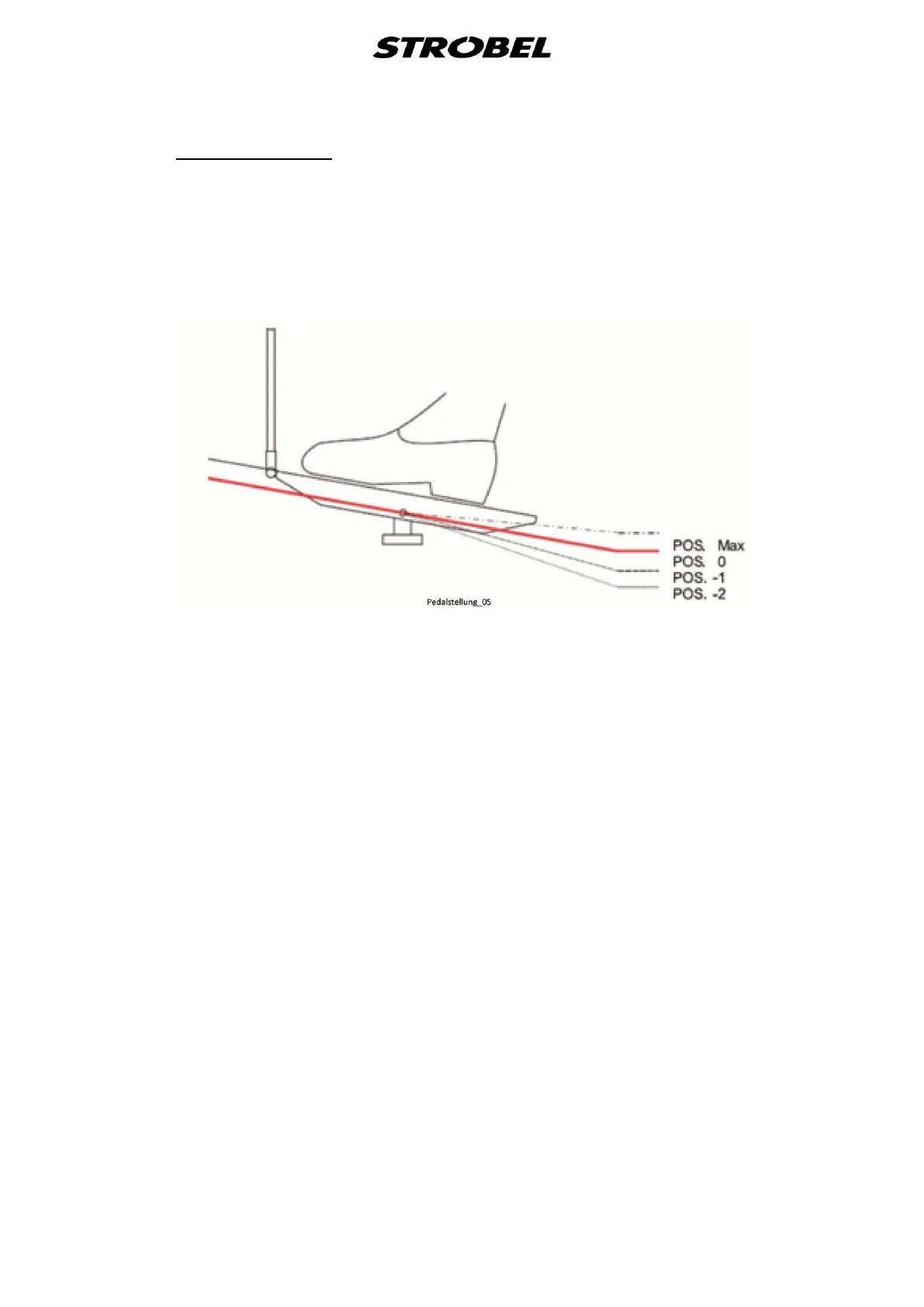

Fig. 11
To calibrate the pedal:
1. Call up parameter t 08 20.
2. Press the “OK“ button.
The LED of the "P" button flashes. The display shows “POS -2?“
3. Press the pedal to position -2.
4. Confirm with the "OK" button. The display shows “POS -1?“
5. Press the pedal to position -1.
6. Confirm with the "OK" button. The display shows “POS -0?“
7. Press the pedal to position -0.
8. Confirm with the "OK" button. The display shows “POS Max?“
9. Press the pedal all the way forward.
10. Press the “OK“ button.
The display jumps back to parameter t 08 20.
You can navigate to the next parameter to change the pedal levels.
