7

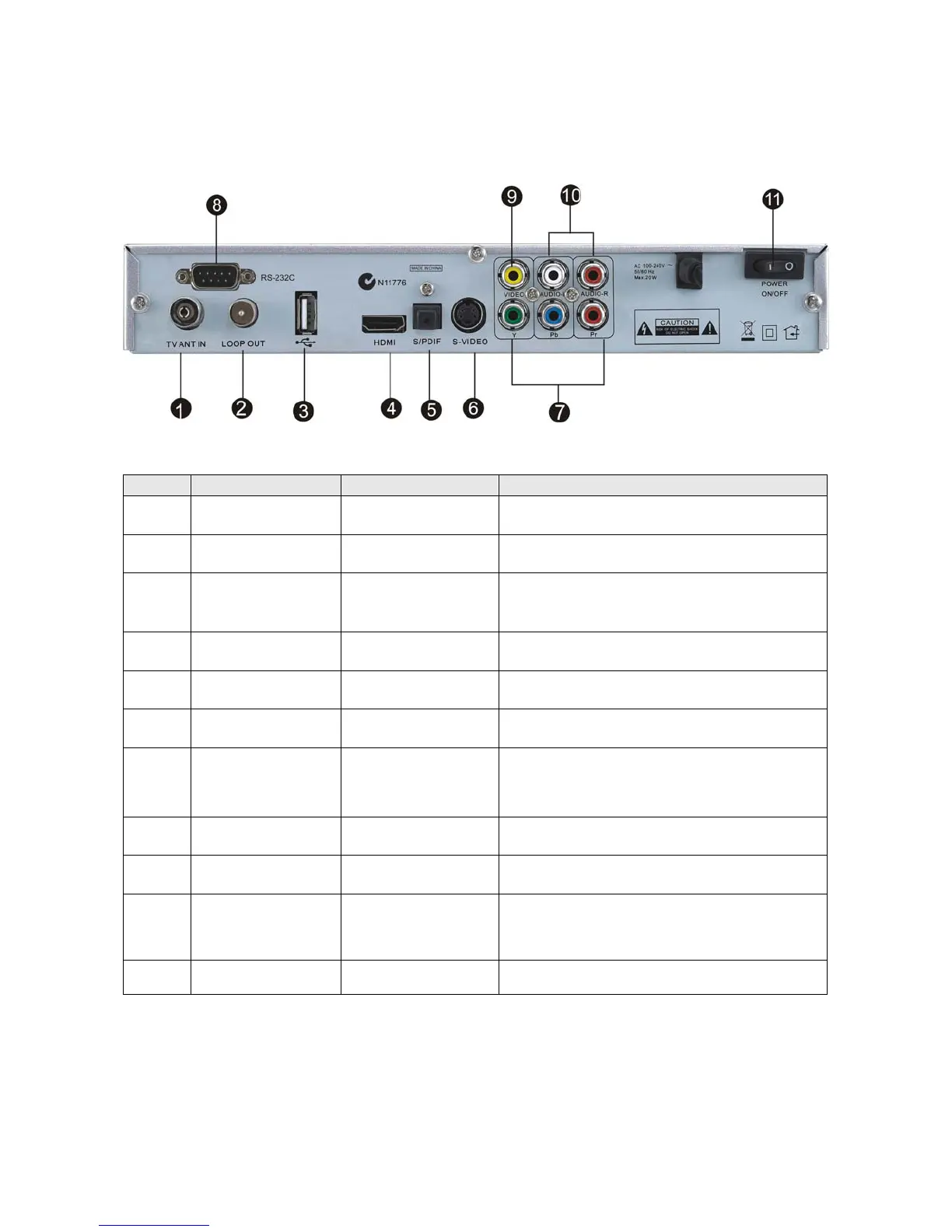

Rear panel
No. Name Connector Function
1 TV ANT IN IEC 169-24 female Input from terrestrial antenna
2 LOOP OUT IEC 169-24 female Loop-through output to VCR, etc.
3 USB USB 2.0 A-type
cable
Music and software upgrades
4 HDMI HDMI cable HDMI video-and-audio connection
5 S/PDIF Fibre optic Digital audio output (optical)
6 S-Video MINI-DIN S-VHS video output
7 Y/Pb/Pr RCA
Component
RCA cinch
(green/blue/red)
Component connection (Y/Pb/Pr)
8 RS-232 DB-9 Serial port
9 Video RCA RCA cinch( yellow) Composite video connection
10
Audio (Left and
Right)
RCA cinch
• white: left audio
• red: right audio
Left and right audio for Component or
Composite connection
11 Power switch —
To turn unit on or off
