INSTALLATION, CONT’D: ATTACHING SPLASH GUARD BRACKET TO REAR FRAME SUPPORT RAIL

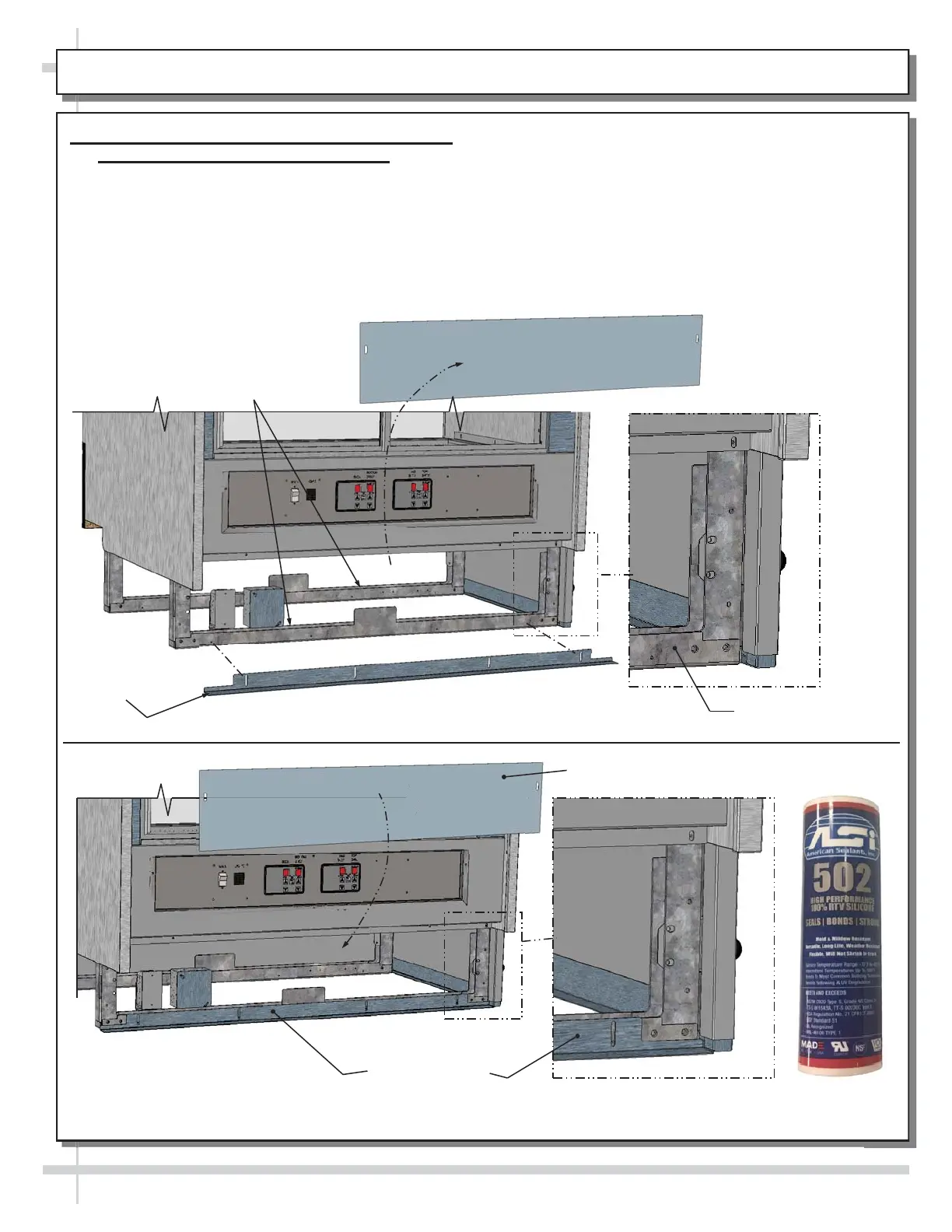

4. Attaching and Sealing Splash Guard Bracket
To Frame Support Rail at Case Rear
x The separately shipped splash guard bracket is
designed to prevent entry or leakage of liquid or
moisture to underside of case.
x After case has been properly positioned and frame
support rails have been shimmed, place a bead of
silicone sealant to underside of splash guard
Frame Support Rail
Silicone Sealant
bracket (that rests on floor). Center back of
bracket flush against frame support rail.
x Then, attach to frame support rail with
SCC-supplied screws.
x After splash guard bracket has been secured to
frame support rail, apply another bead of silicone
sealant where front of bracket meets floor.
x Attach rear toe-kick to case (with 2 screws).
Splash Guard
Bracket (Shown
Attached)
Removable Toe-Kick
Splash Guard
Bracket
Frame Support
Rails
--- View With Splash Guard Bracket Attached ---
--- View With Splash Guard Bracket Removed ---
