INSTALLATION, CONT’D: REMOVABLE FRONT & REAR TOE-KICKS
6. Removable Front Toe-Kick (Magnetized)
x Front toe-kick is usually shipped separately.
x Front toe-kick is removable by grasping
toe-kick’s upper lip and pulling toward you (to
release from magnets).

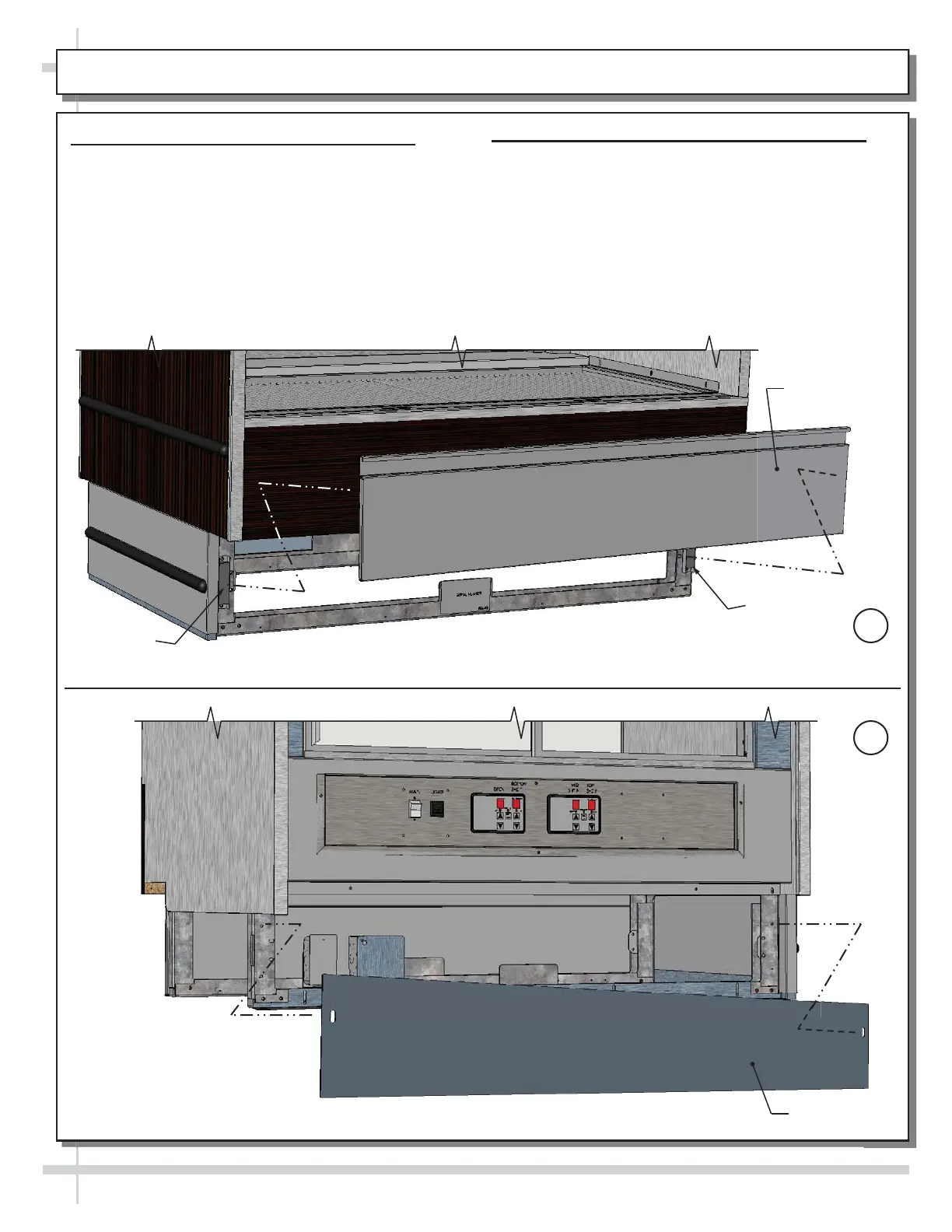

x See illustration below.
--- Toe-Kick Removable From Case Rear ---
Front
Toe-Kick
--- Toe-Kick Removable From Case Front ---
Rear
Toe-Kick
Magnet
Magnet
6
7
7. Removable Rear Toe-Kick (Screw-Retained)
x Rear toe-kick is usually attached at case
shipment.
x Rear toe-kick is removable by removing two (2)
screws and lifting away from case.
x See illustration below.
