INSTALLATION, CONTINUED
5. Electrical Connections (Certain Remote Cases)
Field wiring connection / electrical access location is at
customer-left side of case.
Single phase leads are provided.
6. Evaporator Fan Area

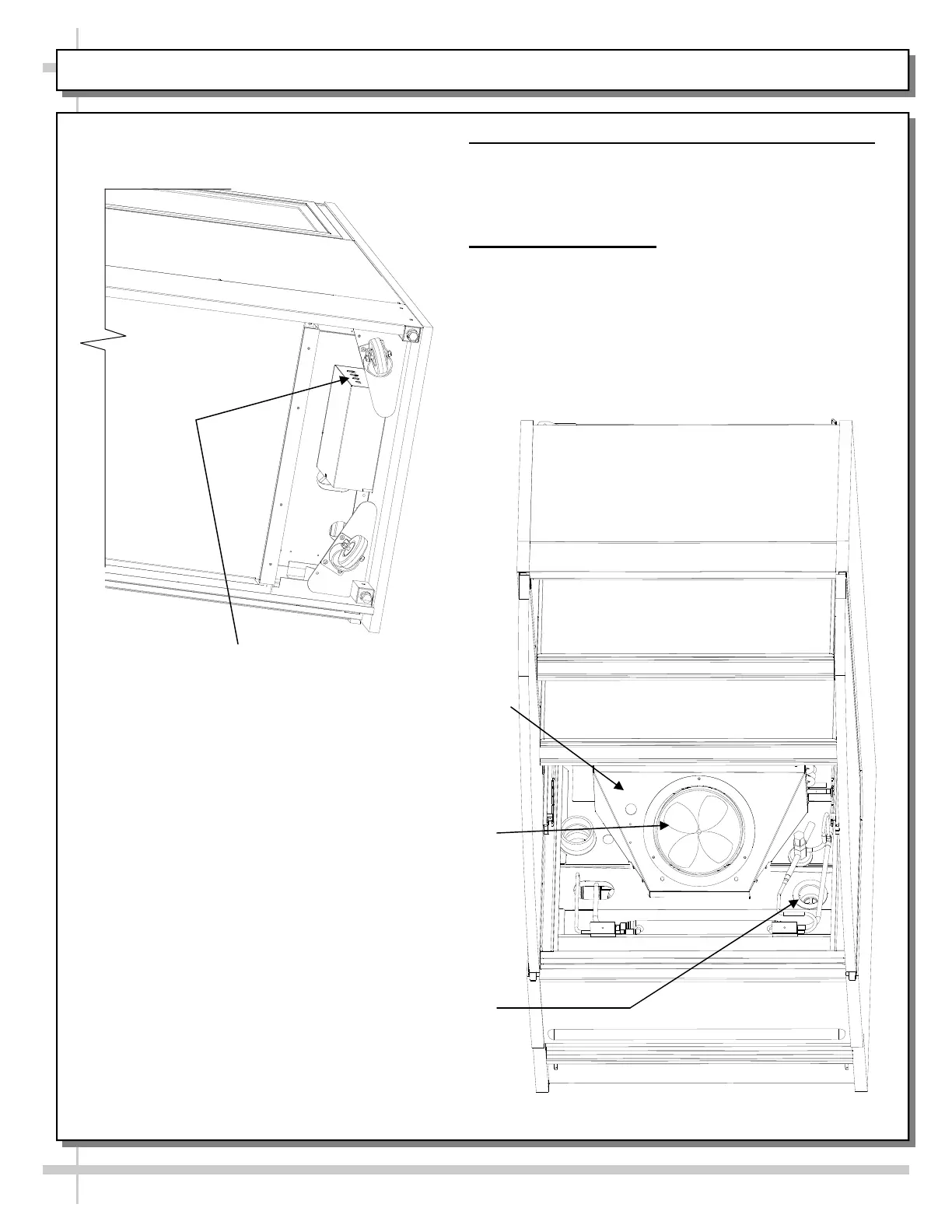

Illustration below shows front of case with decking
removed.
See Preventive Maintenance section in this manual
for guidelines on cleaning this area.
Case Rear
Field Wiring Electrical
Connections
Fan Shroud
Fan Blade
Drain
