Torque item A
to 13 ± 2 ft-lb
Torque item A
to 13 ± 2 ft-lb
Torque item B
to 13 ± 2 ft-lb
A
B
A
F
F
F
D
E

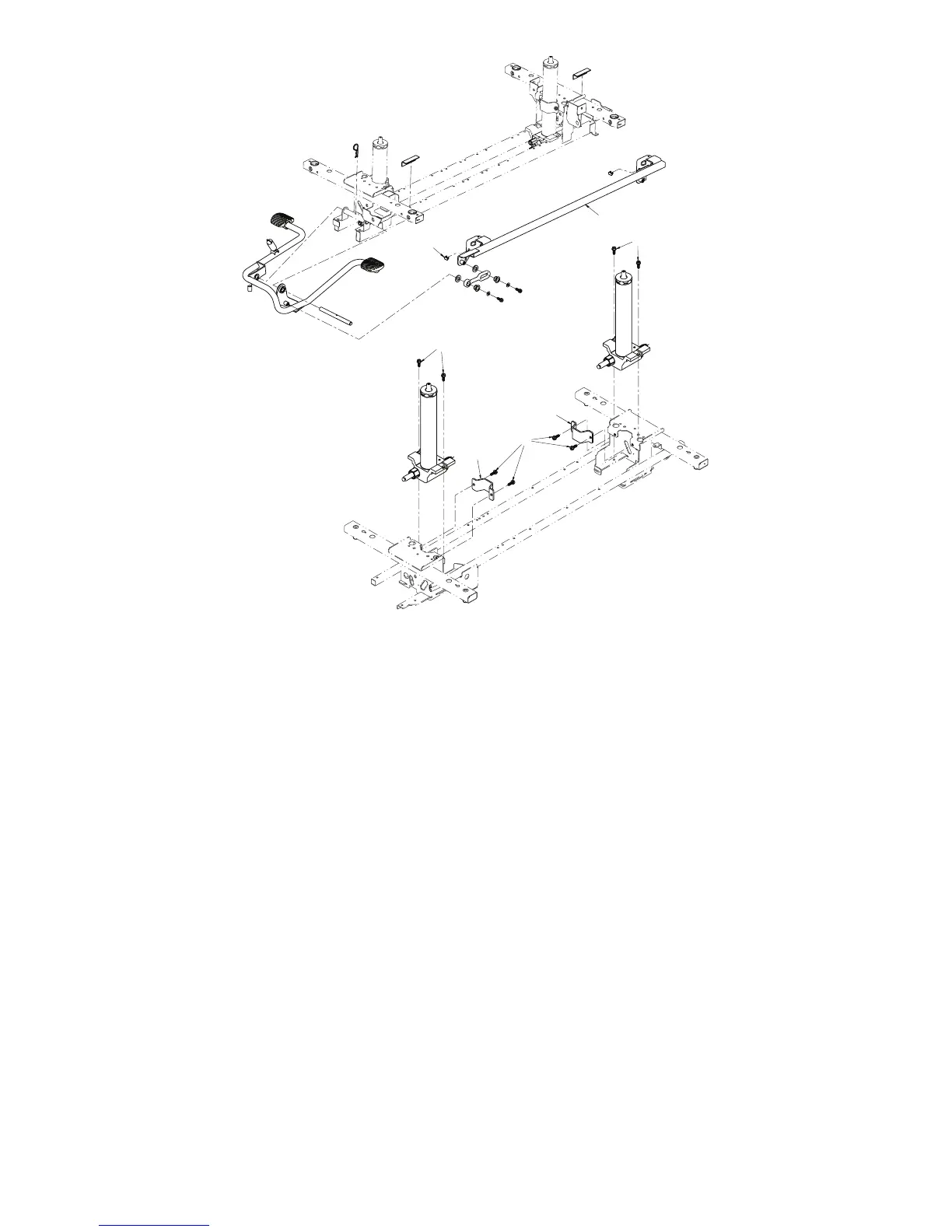

FFiigguurree 1100 –– RReeppllaaccee tthhee jjaacckk
RReelleeaassee ppeeddaall aaddjjuussttmmeenntt
TToooollss RReeqquuiirreedd::
• Needle nose pliers
• Bungee cords
1. Raise the base hood and support the base hood with bungee cords.
2. Using needle nose pliers, remove the rue ring cotter from the release pedal assembly.
3. Remove the clevis joint from the release pedal assembly.
4. To increase the descent rate, increase the amount of the release rod thread in the clevis joint.
5. To decrease the descent rate, decrease the amount of release rod thread in the clevis joint.
6. Reverse steps 1-3 to reinstall.
7. Verify proper operation before you return the product to service.
NNoottee -- If you thread the clevis joint too far on the release rod, the release valve will activate and the jack will drift.
RReelleeaassee ppeeddaall rreeppllaacceemmeenntt,, ffoooott eenndd ((tthhrreeee--ssiiddeedd hhyyddrraauulliiccss))
TToooollss RReeqquuiirreedd::
• Bungee cords
• Needle nose pliers
EN 28
0747-109-002 Rev A.3
