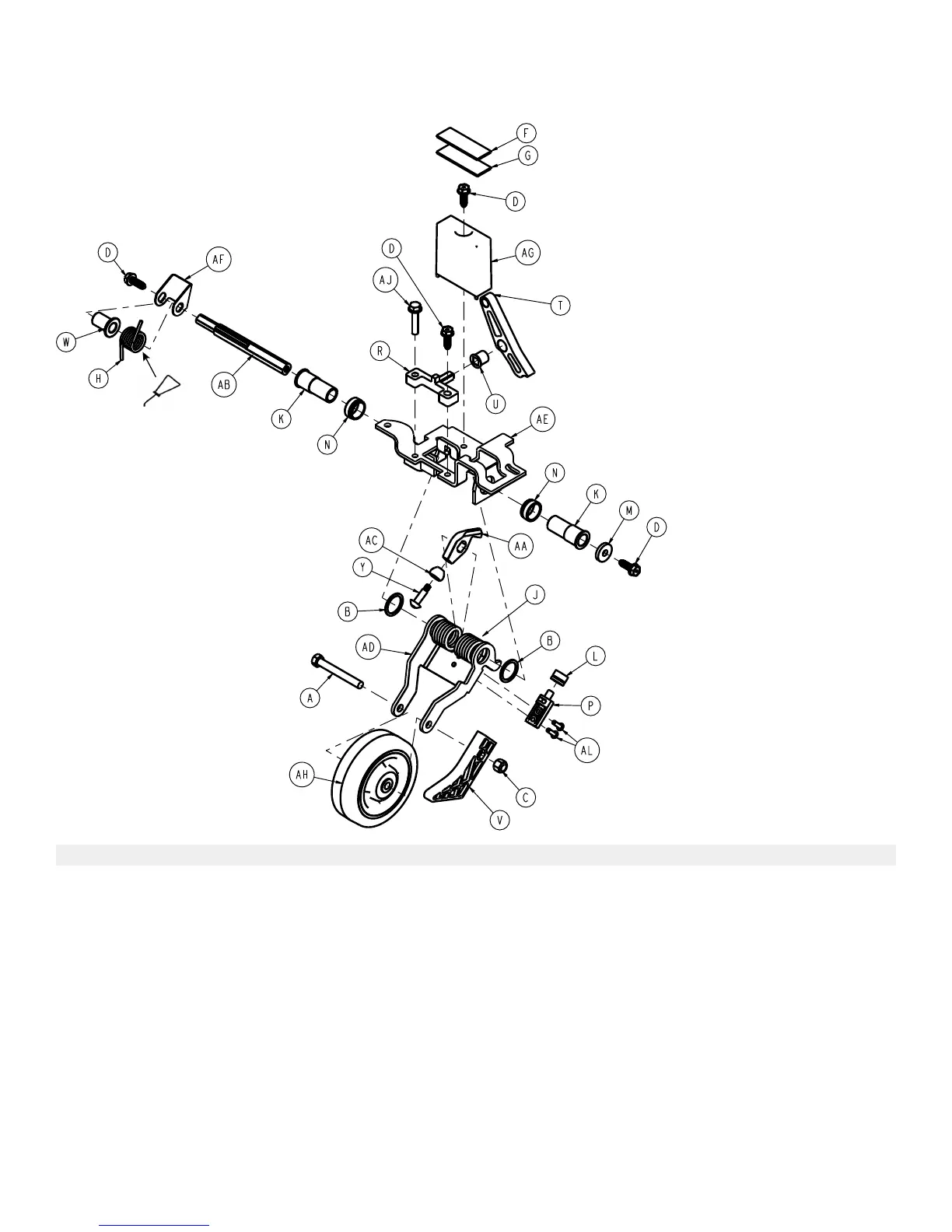

FFiifftthh wwhheeeell aasssseemmbbllyy -- 11110055--000066--113300
Rev E (Reference only)
Torque item D
to 13 ± 2 ft-lb
Torque item D
to 13 ± 2 ft-lb
Torque item AJ
to 13 ± 2 ft-lb
Torque item D
to 13 ± 2 ft-lb
Torque item Y
to 80 ± 15 in-lb
Torque item D
to 13 ± 2 ft-lb
IItteemm NNuummbbeerr NNaammee QQuuaannttiittyy
A 0003-083-000 Hex head cap screw 1
B 0011-360-000 Washer 2
C 0016-035-000 Nylock hex nut 1
D 0023-288-000 Hex washer head screw 4
F 0029-007-000 Dual lock 1
G 0029-009-000 Dual lock 1
H 0753-006-074 Torsion spring 1
J 0753-006-075 Torsion spring 1
K 0753-006-097 Drive shaft bearing 2
L 0753-006-106 Dampener 1
M 0753-006-108 Thrust washer 1
N 0753-006-115 Bearing race 2
EN 48
0747-109-002 Rev A.3
