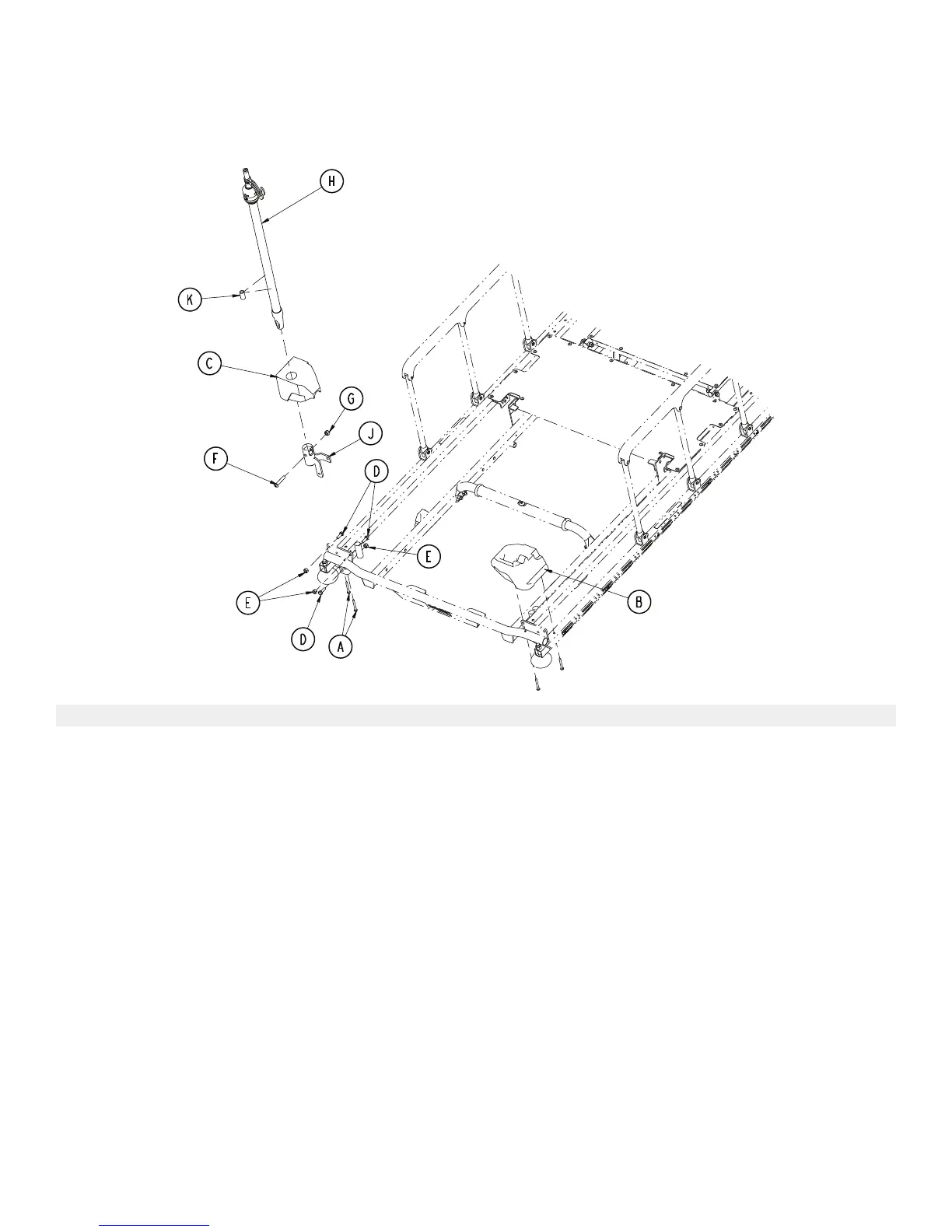

CCoorrnneerr ccoovveerr aasssseemmbbllyy wwiitthh ooppttiioonnaall ttwwoo--ssttaaggee IIVV ppoollee
0744-035-020 Rev A (Head) (Reference only)
0744-035-070 Rev A (Foot) (Reference only)
IItteemm NNuummbbeerr NNaammee QQuuaannttiittyy
A 0023-283-000 Self-tapping screw 4
B 0742-201-238 Corner cover, slot 1
C 0742-201-239 Corner cover, hole 1
D 0003-050-000 Hex head cap screw 3
E 0016-028-000 Fiberlock hex nut 3
F 0004-199-000 Button head cap screw 1
G 0016-036-000 Nylock hex nut 1
H 1211-210-010 Two-stage IV pole assembly 1
J 0748-259-103 IV pivot weldment 1
K 1001-259-042 IV plug 1
0747-109-002 Rev A.3
83 EN
