AAttttaacchhiinngg aann ooxxyyggeenn bboottttllee ttoo tthhee rreettrraaccttaabbllee hheeaadd sseeccttiioonn ooxxyyggeenn bboottttllee hhoollddeerr
WWAARRNNIINNGG -- Do not pinch your fingers between the fowler bracket and the oxygen bottle if your cot is equipped with the
optional retractable head section oxygen bottle holder.
CCAAUUTTIIOONN
• Do not load the oxygen bottle holder above the safe working load of 15 lb (6.8 kg).
• Do not use two head end oxygen bottle holders at the same time.
To attach an oxygen bottle to the retractable head section oxygen bottle holder (Figure 34):
1. Center the oxygen bottle on the cradled surface of item (A).
2. Tighten both straps (B) around the oxygen bottle.
3. Secure the slack on the straps to the VVeellccrroo® on the straps.

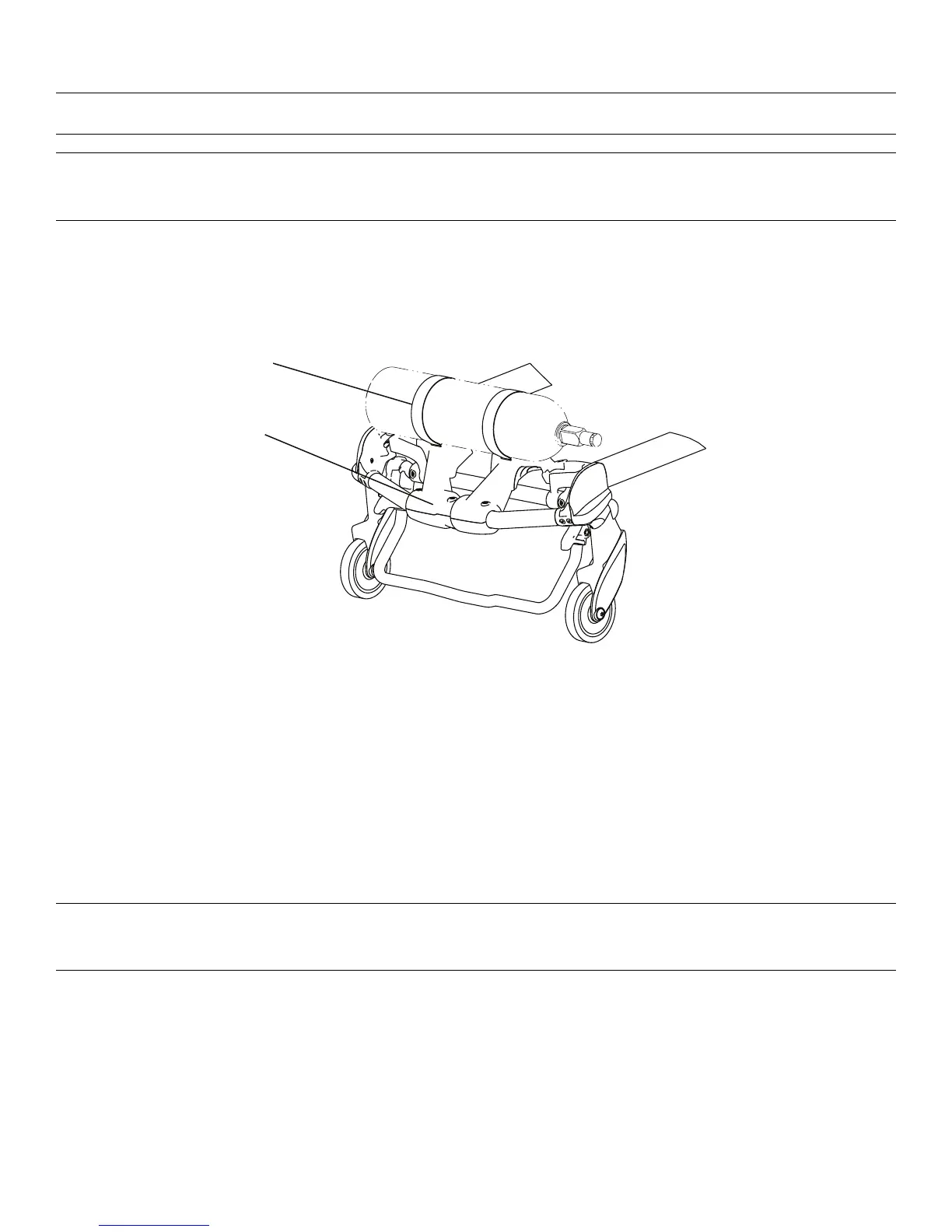

FFiigguurree 3344 –– OOxxyyggeenn bboottttllee aattttaacchhmmeenntt
NNoottee
• The optional fowler oxygen bottle holder (6500-241-000) is not compatible with the optional retractable head section
oxygen bottle holder (6085-046-000).
• Do not use the oxygen bottle holder to hold an oxygen bottle holder when the transport vehicle is in motion. Always place
the oxygen bottle holder in an appropriate storage location when the transport vehicle is in motion.
• Inspect the straps and clips for wear between use. Replace the strap if it no longer holds the oxygen bottle.
IInnssttaalllliinngg tthhee ooppttiioonnaall bbaassee ssttoorraaggee nneett
CCAAUUTTIIOONN
• Do not load the base storage net above the safe working load of 20 lb (9 kg).
• Always be careful when you retract the base to avoid damaging items that are stored in the base storage net.
To install the base storage net, wrap the VVeellccrroo® straps around the base tubes.
6086-209-001 Rev F.2 41 EN
