101176 REV E 21
Functional Check
FUNCTIONAL CHECK - INTERNAL REQUIRED EQUIPMENT
WARNING
• Only qualified service personnel should perform this Functional Check. Improperly fol-
lowing the test procedure may result in equipment damage.
• Do not perform this Functional Check with an empty reservoir. Damage to the T/Pump may result.
• Read through and understand each step before performing the test.
• After any field service, the functional check must be completed to ensure operation.
To assure optimum performance, dependability and safety, the following Functional Check should be performed once
per year (or as specified in the facility's preventive maintenance program).
•TPT9 is used to measure the temperature and the flow of the water entering the pad. (To use quick
disconnects, also order adapter hose P/N 77926000)
•Stop Watch
•Mul•T•Pad
•Test Probe, T/Pump P/N:100925000
•Current Leakage meter
•Ohm Meter
Note:ToorderaTPT9,TestProbeandMul•T•Pad,contactyourdealerorStryker'sCustomerServiceDepartment.

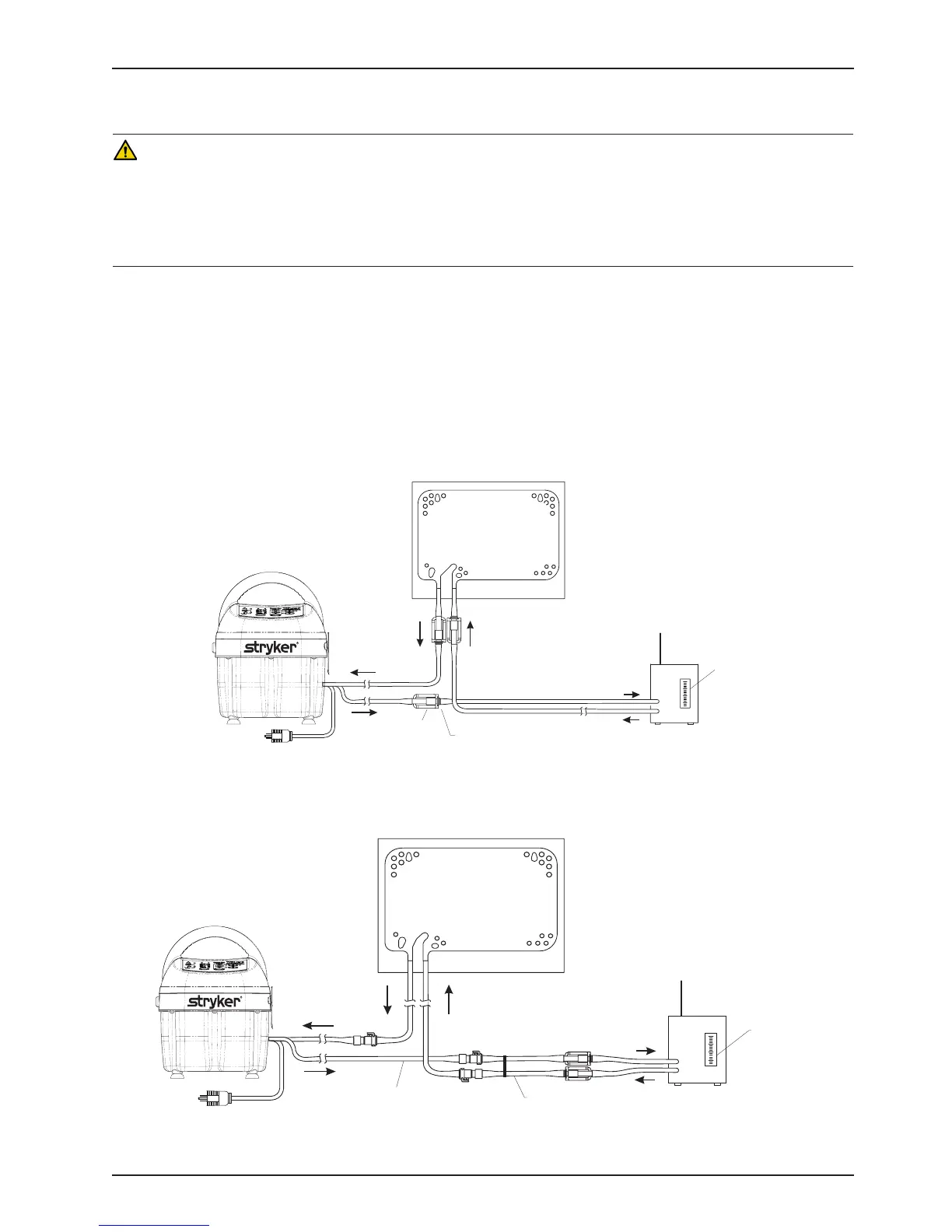

Figure 9b: Functional Check Setup (quick disconnects)
NOTE: If the ow meter is
connected in reverse, the
ow meter will indicate no
ow. Reverse the pump hose
connections to change the
direction of ow.
T/Pad, size "12" or
"22": Be sure pad is at
and at same level as
pump.
TPT9:
7 gph (26.5 lph)
minimum.
Read at top
of oat.
Fitting and tube closest
to front of T/Pump
Plug into a properly
grounded outlet.
Adaptor Hose
Assembly
TPT9:
7 gph (26.5 lph)
minimum.
Read at top
of oat.
Figure 9a: Functional Check Setup (Clik-Tite)
NOTE: If the ow meter is
connected in reverse, the ow
meter will indicate no ow.
Reverse the pump connections
so that the male tting (with black
O ring) is on the supply side.
T/Pad, size "12" or
"22": Be sure pad
is at and at same
level as pump.
Male Clik-Tite
connector
(black O ring)
Fitting and tube
closest to front of
T/Pump
Plug into a properly
grounded outlet.
To Next Page
