www.stryker.com 101515 REV E 1-9
Operation
Connecting single or multiple pads
The Mul-T-Pad products provide the interface for delivering temperature therapy. The unique button design allows water
to flow and provides trouble-free operation when the pad is folded to form a customized fit. You apply the pads to the
part of the body that require therapy. The circulating water maintains the pad at the setpoint temperature.
The pad is connected to the pump with Clik-Tite or Colder connectors.
You can interconnect the Mul-T-Pad (Figure 1-1 on page 1-9 ) by using the Clik-Tite or Colder style connectors to
provide therapy to more than one body part at a time (Figure 1-2 on page 1-9).

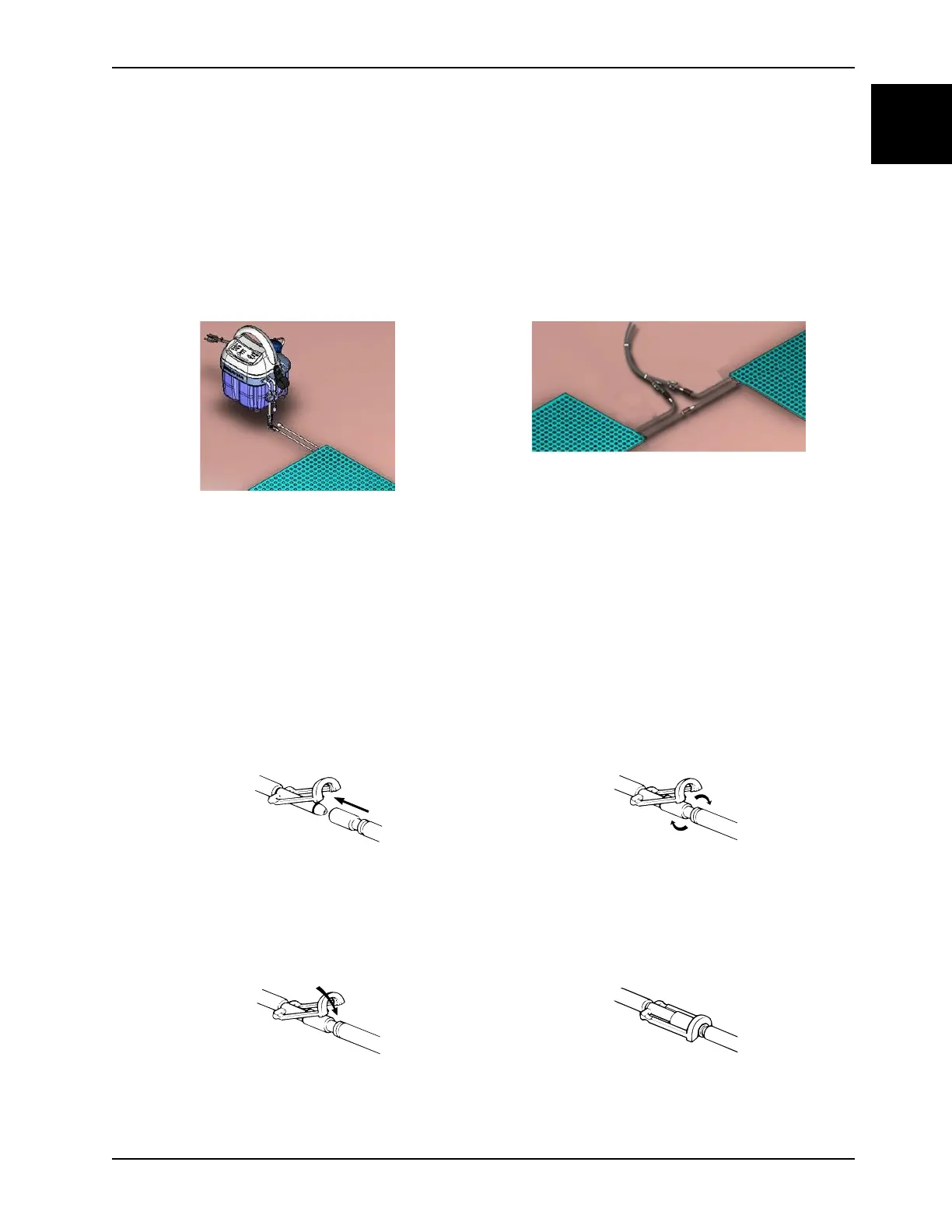

Figure 1-1: Localized temperature system with single
pad
Figure 1-2: Localized temperature therapy system with
multiple pads
Connecting and disconnecting the Clik-Tite connectors
TP700 has Clik-Tite style connectors.
To connect the Clik-Tite connectors from the hose to the pad:
1. Insert the male fittings into the female fittings with a twisting motion (Figure 1-3 on page 1-9 and Figure 1-4 on page
1-9).
Figure 1-3: Connecting fittings
Figure 1-4: Twist fittings
2. After you insert fittings (Figure 1-5 on page 1-9), snap the lock ring into place (Figure 1-6 on page 1-9).
Figure 1-5: Insert fittings
Figure 1-6: Lock ring
