Connecting and disconnecting the Clik-Tite connectors (Continued)
3. To disconnect, reverse the procedure.
Connecting and disconnecting the Colder Connectors
TP700C has Colder style connectors
To connect Colder connectors from the hose to the pad:
1. Insert the male coupling into the female coupling (Figure 1-7 on page 1-10). When you hear an audible click, you
have joined the connectors.

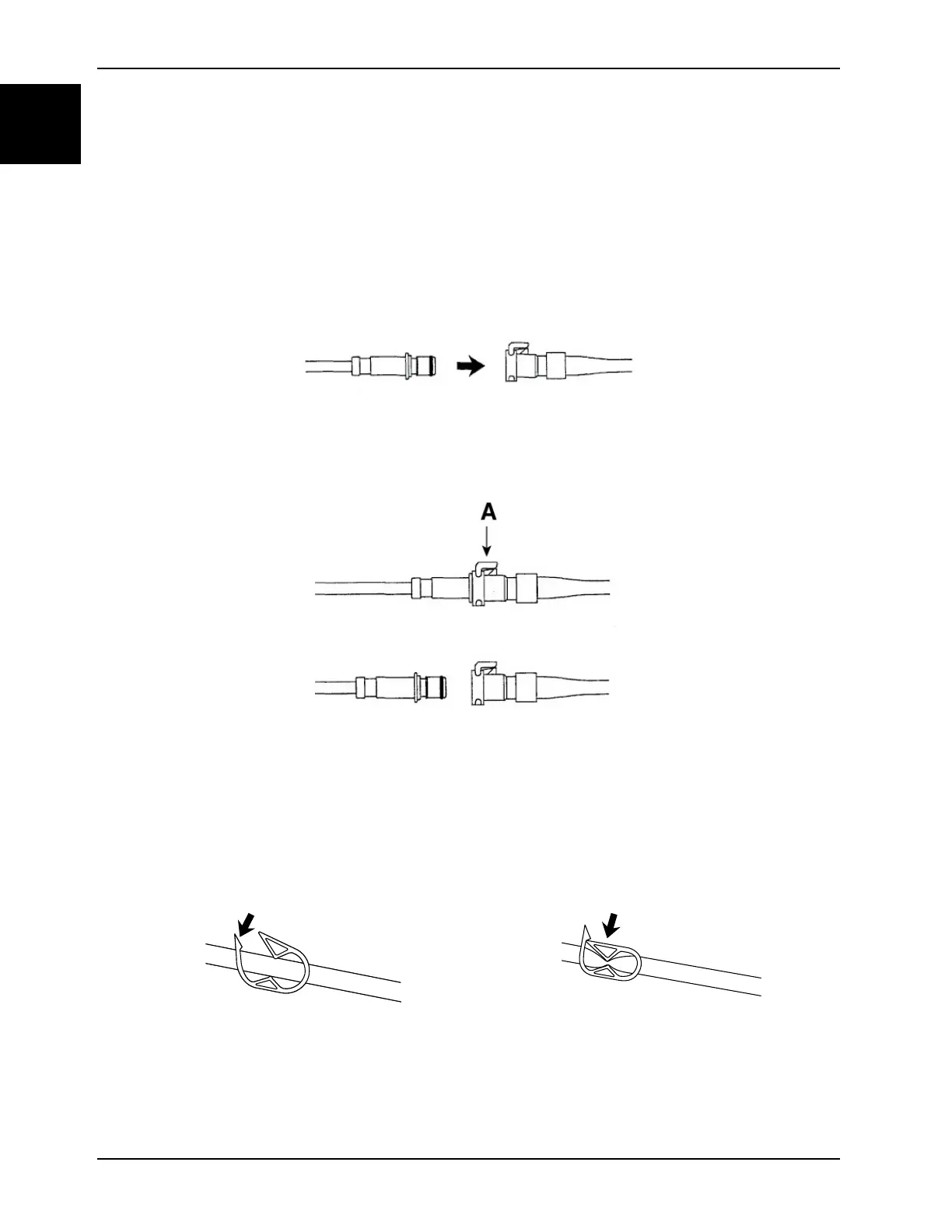

Figure 1-7: Connecting couplings
2. To disconnect, press down on the thumb tab (A) of the female coupling. The couplings will partially disconnect.
3. Pull the mail coupling out to disconnect (Figure 1-8 on page 1-10).
Figure 1-8: Disconnecting couplings
Opening and closing hose pinch clamps
To open or close the hose pinch clamps:
1. Open the clamp by pushing on the serrated end (Figure 1-9 on page 1-10).
Figure 1-9: Open the clamp
Figure 1-10: Close the clamp
2. Close the clamp by pressing the clamp together (Figure 1-10 on page 1-10).
