Quick guide RCC-02/-03
Quick guide V 6.1.0 5
5 SYSTEM CONFIGURATION
After installation, the system must be configurated to integrate the properties of elements outside
the devices such as a battery and a possible voltage source (i.e the grid or a genset), depending
on the desired application and wiring.
5.1 CONFIGURATION ASSISTANT
1 minute. Thanks to the Configuration Assistant, that’s all the
time you will need to set-up a new Xtender/Vario system.
Using an RCC-02/-03 remote control, simply answer a few
questions and all Studer devices in the system will be
configured to ensure optimum performance.

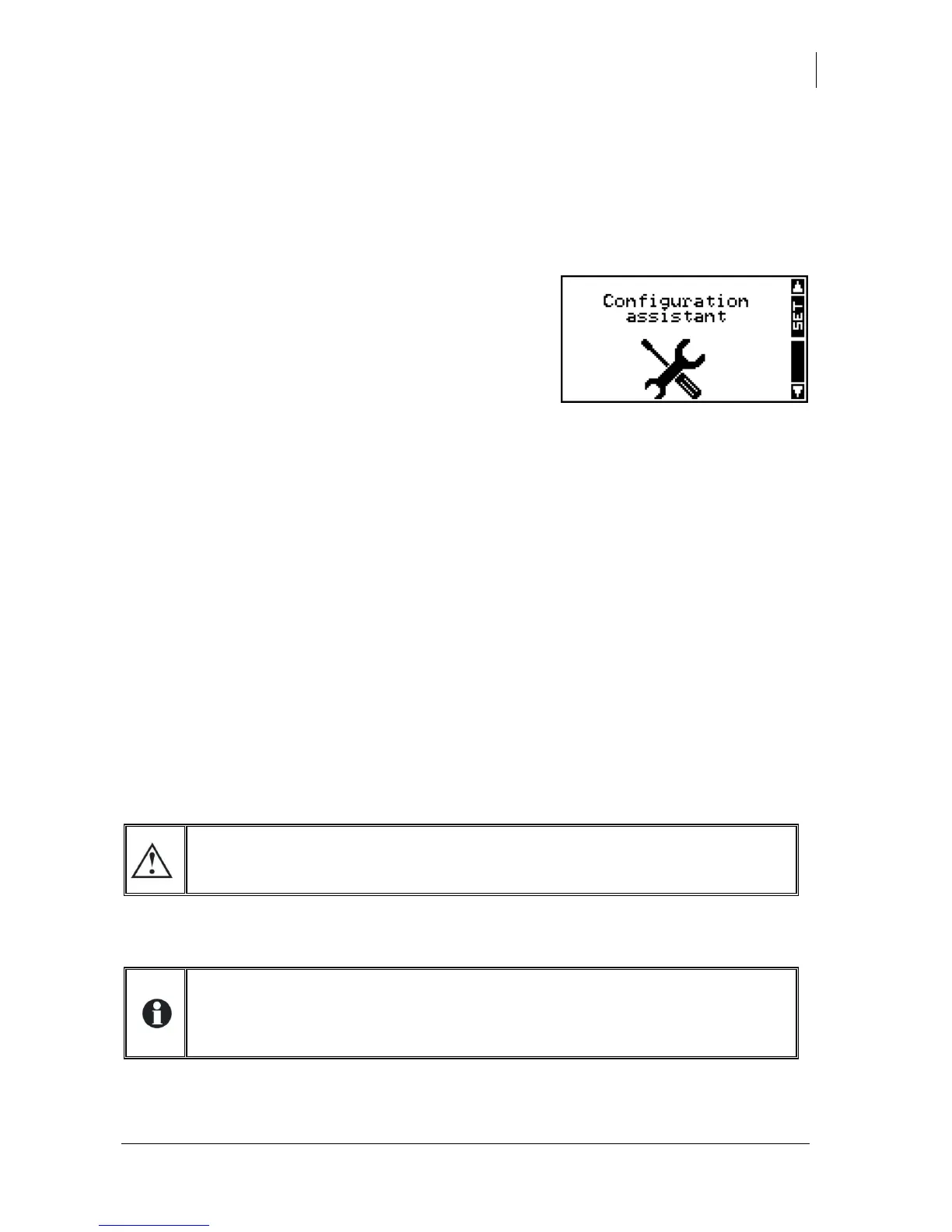

When the system is switched on, the Configuration Assistant
window will appear on the RCC-02/-03. If this is not the case
and you still want to use this function, press the down (↓) key repeatedly until the “Configuration
Assistant” window appears.
Press the SET key and follow the instructions displayed.
5.2 ADVANCED FUNCTIONS AND APPLICATIONS
Many other advanced functions and applications are possible with Xtender/Vario systems, but
are not supported by the configurator, including the following:
 Battery settings as per specific manufacturer recommendations or specific applications
 Special functions of the auxiliary relays and remote entry
 AC coupling of grid-tie inverters (via frequency control)
 Injection of AC current to the grid
 Three-phase installations with different phase capacities
 Functions described in application notes
 Split phase installation
If more advanced functions or different settings are desired, many parameters can be accessed
via the parameter settings windows of each device (XT, VT, VS, BSP, etc.). Detailed information for
each parameter, user info and message (listed in the Quick Guide) can be found in the RCC user
manual on the SD card included in this package.
For more information on RCC-02/-03 features, see also the "accessories" chapter of the Xtender,
VarioTrack, or VarioString user manuals.
An understanding of each parameter and its impact on the system is required when
a change is made.
The functions of the auxiliary contacts are not modified by the Configuration Assistant
and retain their factory functions as described in Chap. 7.5 of the Xtender manual:
AUX1 = start of generator (or load shedding),
AUX2 = inverter stopped (alarm)

Studer RCC-02 Specifications

General

Brand	Studer
Model	RCC-02
Category	Remote Control
Language	English
