VarioString parameter description
Delay to deactivate (AUX 2)
Deactivate if battery in floating phase (AUX 2)
Contact active according to battery temperature (AUX 2)
With BSP or BTS
Contact activated with the temperature of battery (AUX 2)
Contact activated over (AUX 2)
Contact deactivated below (AUX 2)
Only activated if the battery is not in bulk phase (AUX 2)
Contact active according to SOC (AUX 2) Only with BSP
Contact activated with the SOC 1 of battery (AUX 2)
Contact activated below SOC 1 (AUX 2)
Contact activated with the SOC 2 of battery (AUX 2)
Contact activated below SOC 2 (AUX 2)
Contact activated with the SOC 3 of battery (AUX 2)
Contact activated below SOC 3 (AUX 2)
Contact deactivated over SOC (AUX 2)
Delay to deactivate (AUX 2)
Deactivate if battery in floating phase (AUX 2)
Reset all settings (AUX 2)
7 USER INFORMATION

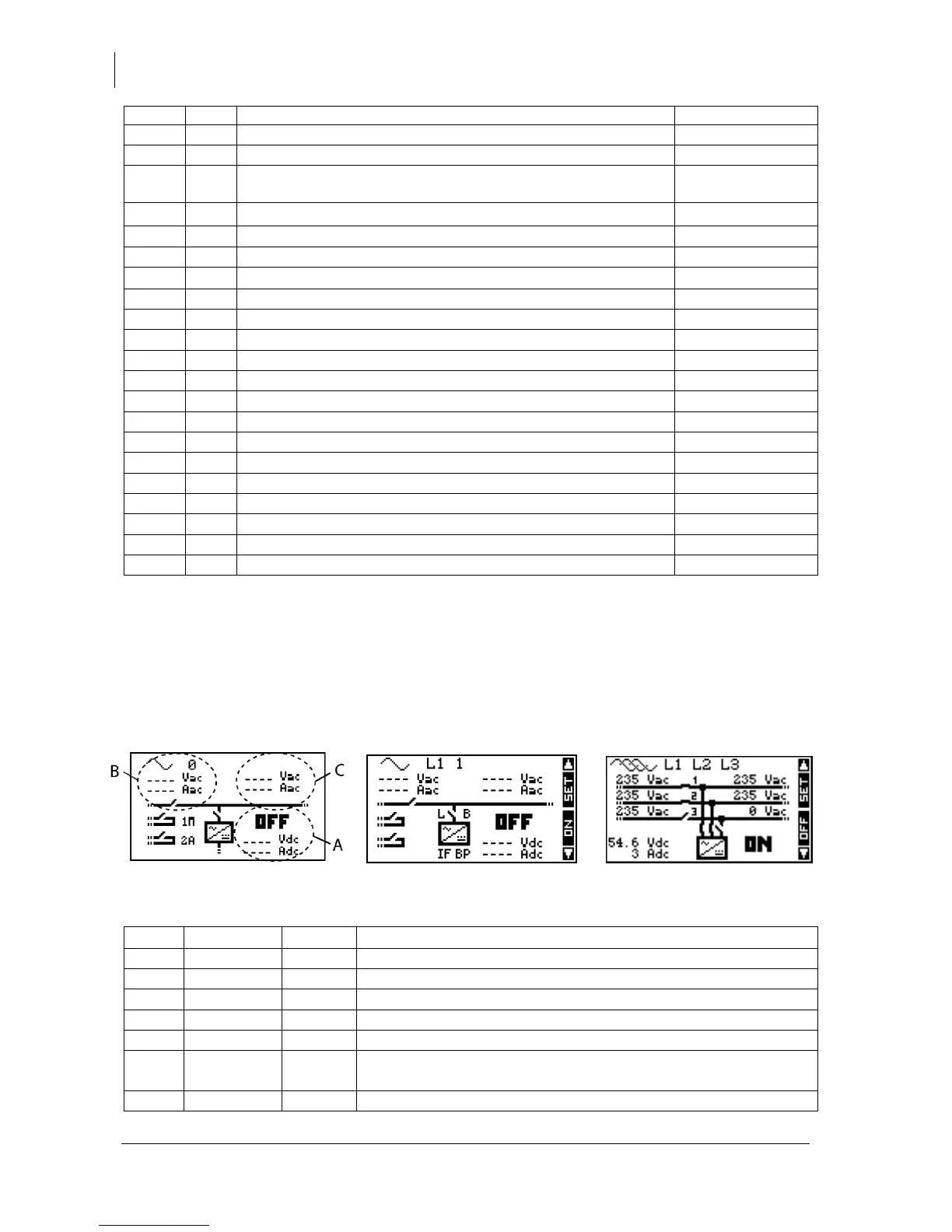

Information regarding an installation's performance is shown on the RCC remote control's different
product displays, representing each system equipment (XT, VT, VS, Xcom-CAN/BMS). Every user
can choose which values to display and the selection procedure is explained in chapter 11 of the
RCC product manual, available on the SD card delivered with the RCC remote control.
7.1 USER INFORMATION ON XTENDER DISPLAYS
A = battery information, B = grid input information (AC-In), C = grid output information (AC-Out)
Xtender information description
Wanted battery charge current
Battery cycle phase (----, Bulk, Absorpt., Equalise, Floating,
R.float., Per.abs., Mixing, Forming)
To Next Page
