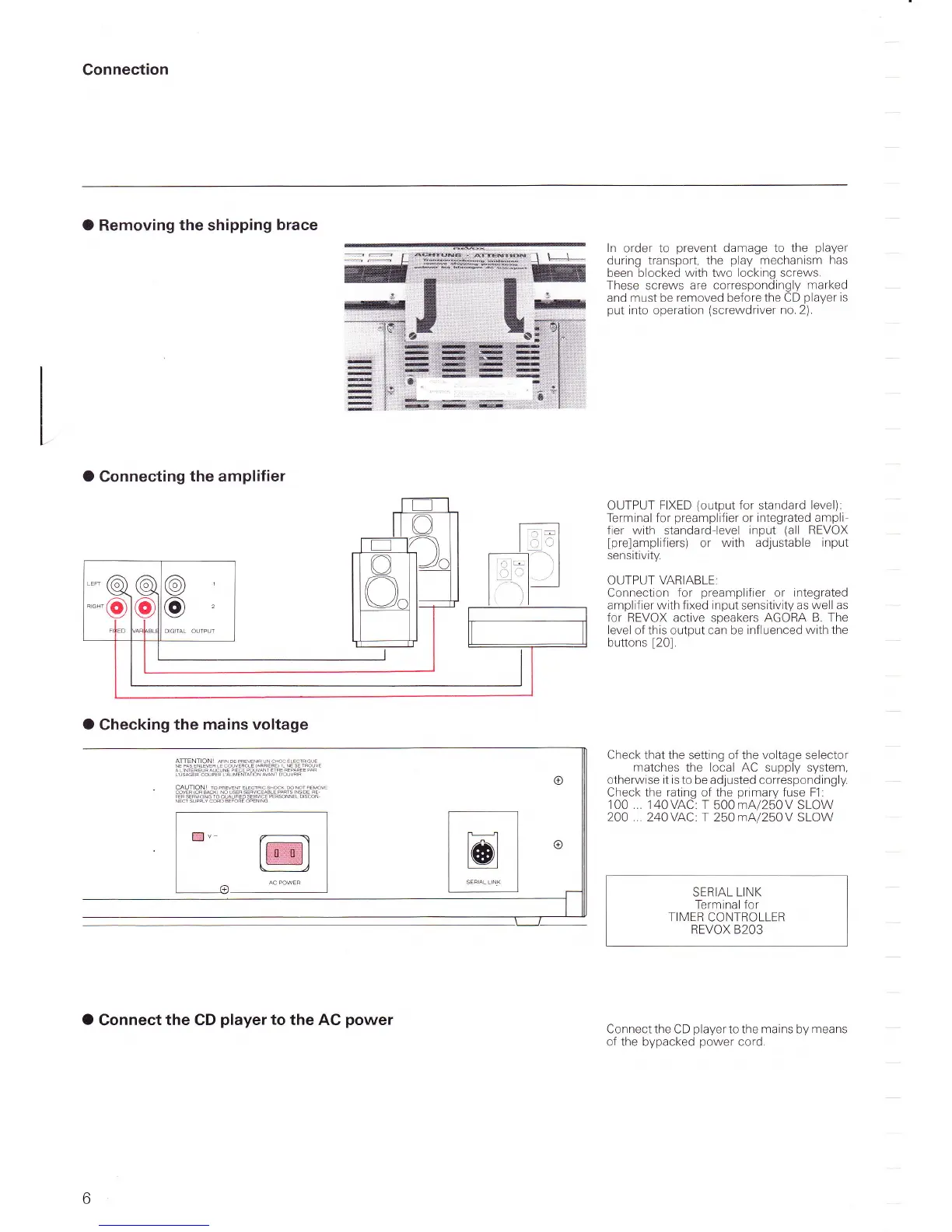

Connection
O Removing
the
shipping
brace
O Connecting
the amplifier
O
Checking
the mains voltage
AfrENTIONL
ÄL NTERTEUR^ucuNEprEcEpolvANTETFEFEPAFEEpan
QAUTON
ToPFEVENTELE
In
order to
prevent
damage
to the
player
during transport. the
play
mechanism
has
been blocked with two locking
screws.
These
screws
are correspondingly
marked
and must be
removed
before
the CD
player
is
put
into
operation
(screwdriver
no.2).
OUTPUT
FIXED
(output
for standard
level):
Terminal for
preamplifier
or
integrated ampli
fler with standard level
input
(all
REVOX
Ipre]amplif
iers)
or
with adjustable
inpul
sensitivity.
OtJTPLJT VARIABLE:
Connection
for
preamplifier
or integrated
amplifier with fixed input sensitivity as
well as
for REVOX active
speakers
AGORA B. The
level
of this output can be
influenced with the
buttons
[20].
Check
that the setting of the
voltage
selector
matches the local AC supply system.
otherwise it is
to be adjusted correspondingly.
Check the rating of the
primary
fuse F1:
100.. 140VAC:T
500mA/250V SLOW
200 24OVAC: T 250mA/250V SLOW
SERIAL LINK
Terminal for
TIMER CONTROLLER
REVOX B2O3
Connect the CD
player
to the mains by
means
of the bvpacked
power
cord.
@l
v-
r_\
tffil
L-,
O
Connect
the
CD
player
to
the AC
power
