/11.2015/G17D
19
Baugröße Anzahl
1 - 3 2
4 3
5 4
7 5
EN
The heat exchanger unit and fan unit may be bolted
together, to prevent a move of both parts to each other
(e.g. in case of a shock from the front).
The screws and washers are included, drill holes are
existant, appropriate cage nuts are already installed in
the fan unit.
The M10 screws must be inserted in the lower cross bar
on the front side of the heat exchanger unit from above.
The number of screws varies with the size:
Size Number

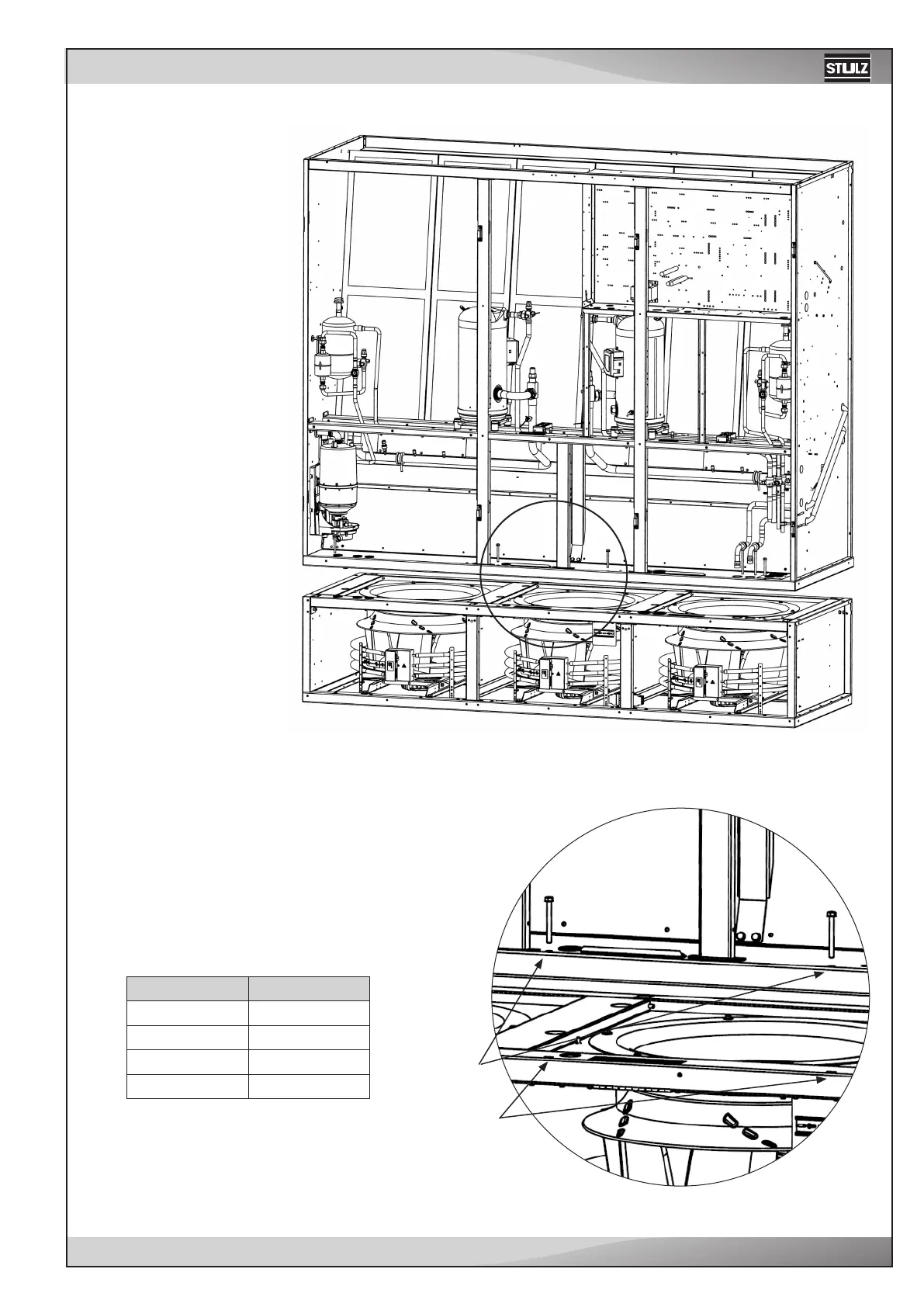

Detail drawing
Bolting of heat exchanger unit and fan unit
drill hole
cage nut
