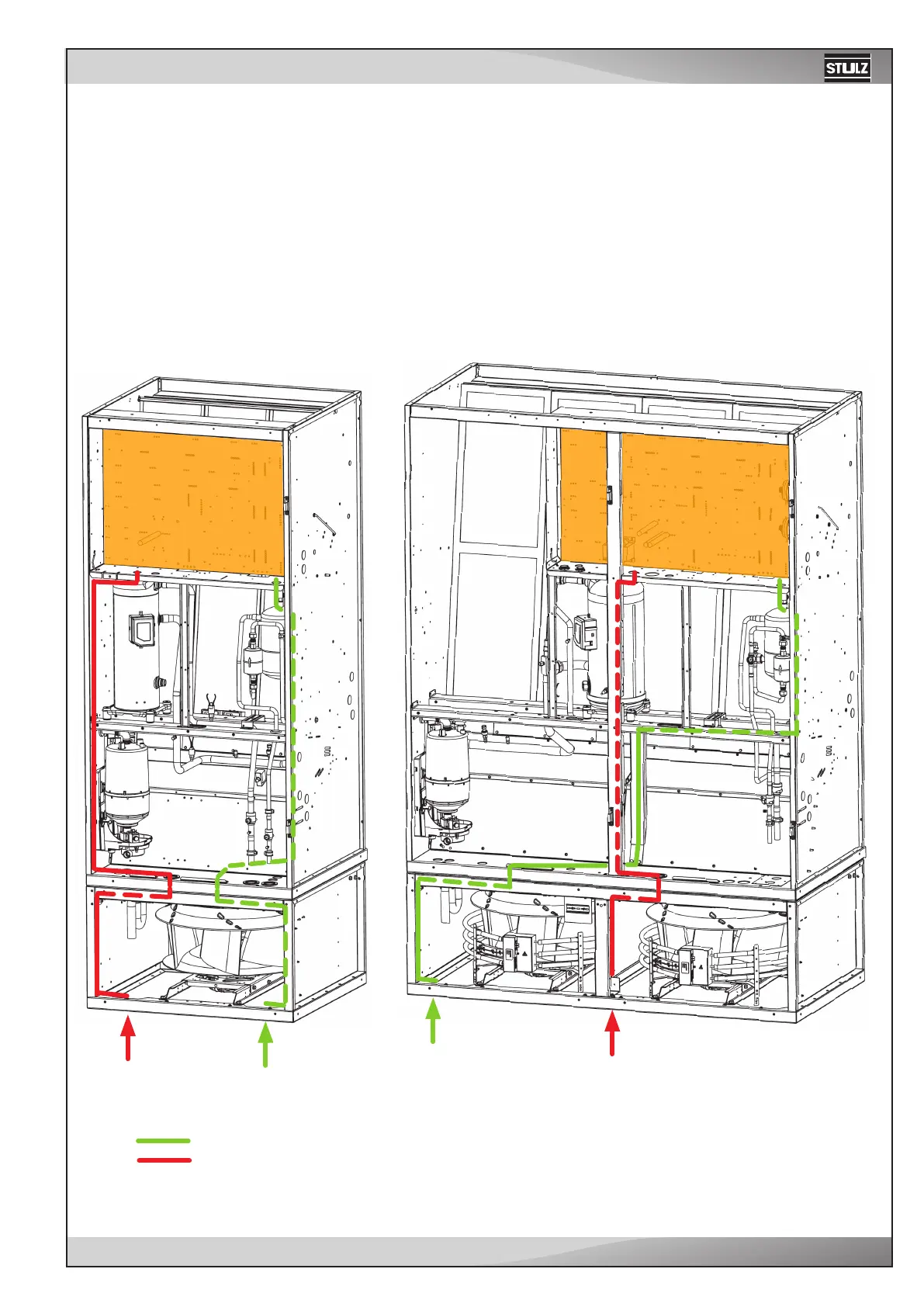

Insertion of the power supply cable
control line
power supply cable
In the bottom of the heat exchanger unit and in the fan unit frame there 2 knock-out holes each, with a diameter of
59 mm (in size 1 and 2 there is only one knock-out hole).
9. Knock out the necessary quantity of holes for the power supply cable and provide the openings with suitable
rubber grommets.
10. Now route the power supply cable as outlined on the drawing.
Sizes 1 and 2
Sizes 3 and 4
