11. Screw the cable feedthrough plates in the fan unit after you have placed the rubber grommets around the cables.
12. Now screw the cable feedthrough plates in the heat exchanger unit.
13. Tie the excess cable lengths together and stow them away in the frame of the fan unit.
14. Re-install the fan protection grilles/front panels of the fan unit.

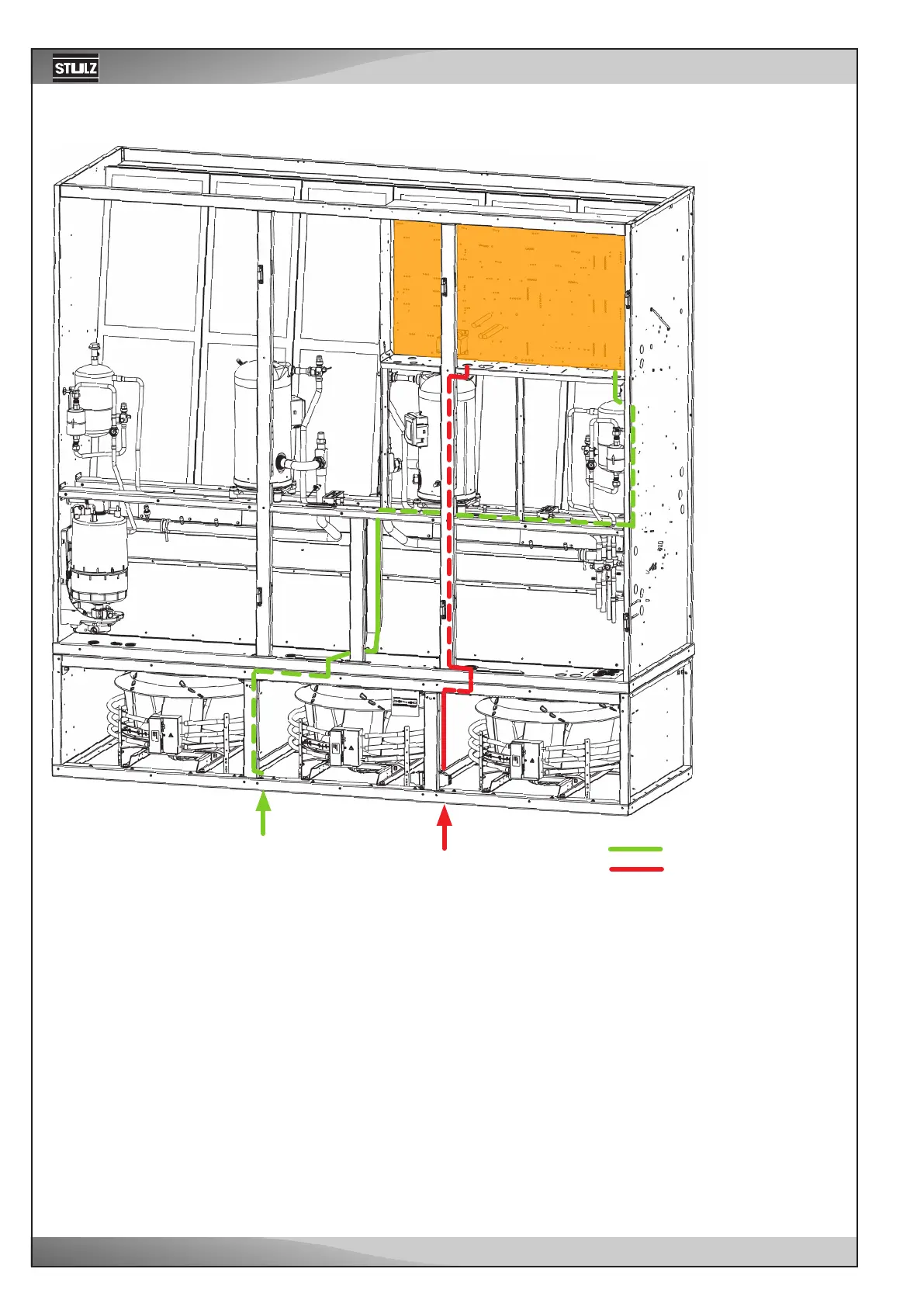

Size 5
control line
power supply cable
