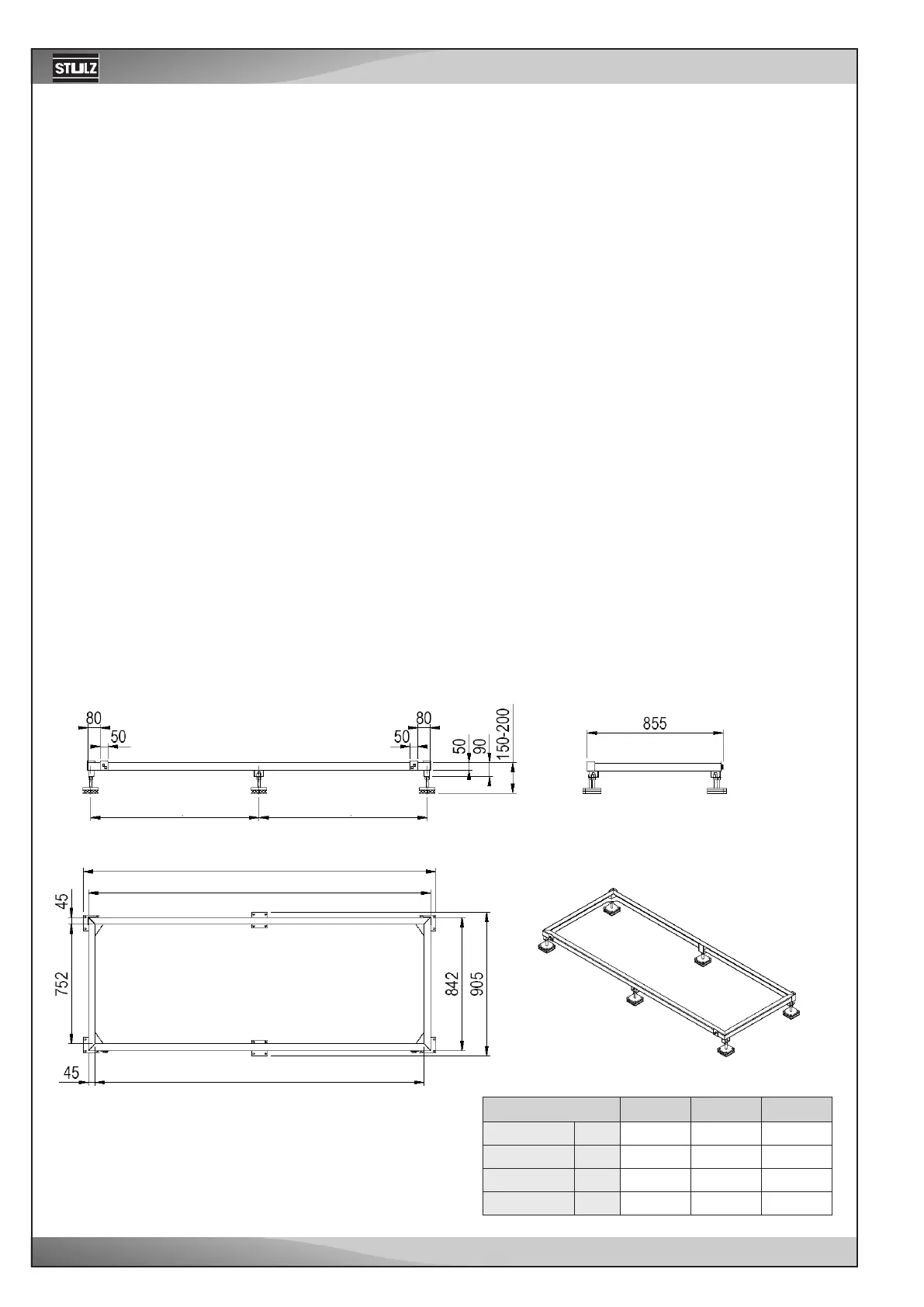

Stulz ASR 682 A2 - Drawings

2
/05.2015/raisedfloor
A A
B
C
D
Baugröße 2 3 4
A mm 662,5 837,5 1062,5
B mm 1425 1775 2225
C mm 1362 1712 2162
D mm 1272 1622 2072
EN
Size
Height 150 - 200 mm
Size 1
Size 2 - 4
drawing not yet available
