Syphon installation
- If you have not already done it, remove the four screws of the grille before the fan next to where the syphon must
be installed and remove the grille
- Knock out the perforated opening for the condensate line.

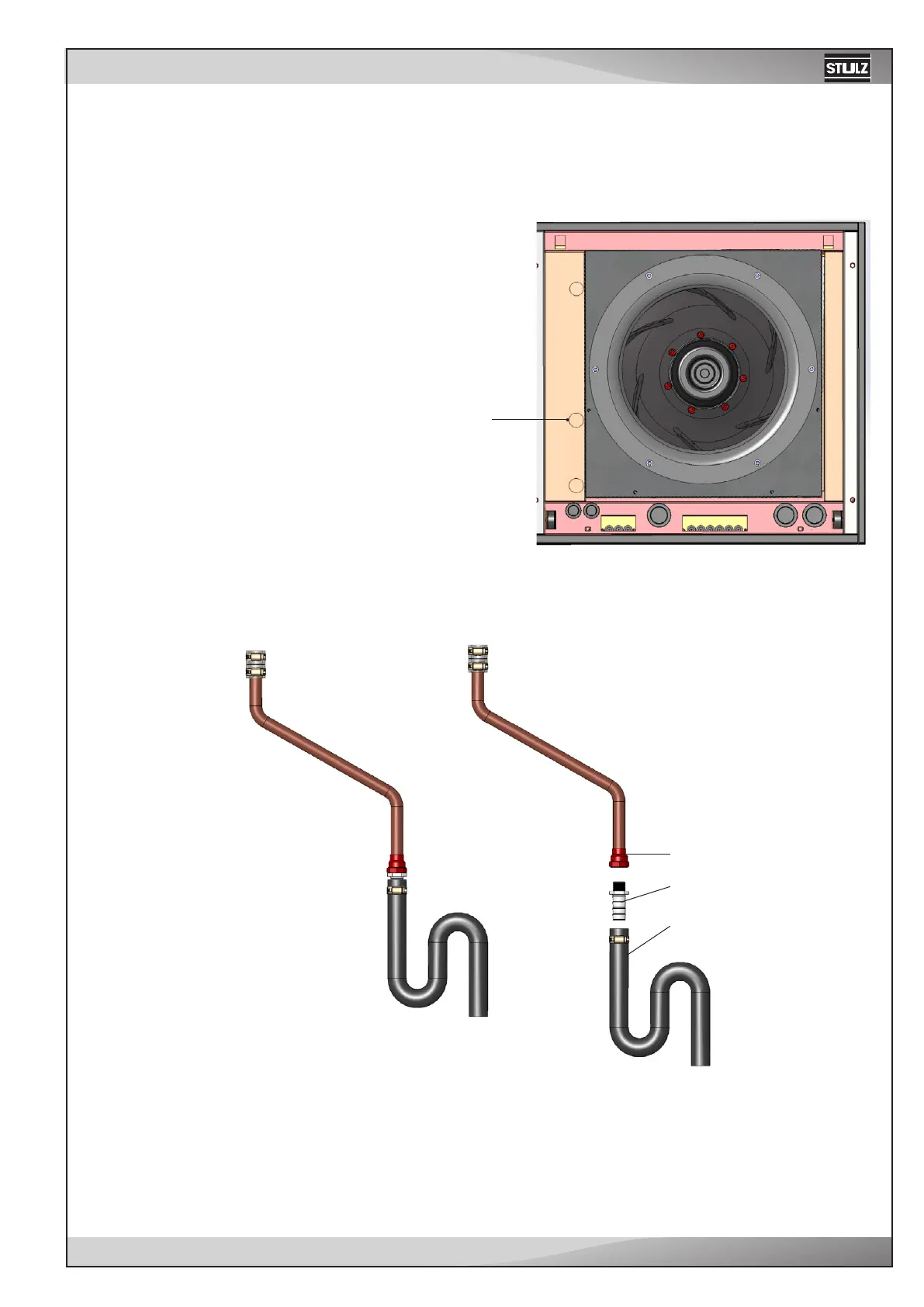

Top view of fan unit
Knock-out opening
for condensate line
- Put the connection piece from the bottom through the
opening into the threaded part of the condensate pipe und
screw it tight.
- Put the syphon over the connection piece and fix it with the
hose clamp.
condensate line
connection piece
syphon
- If the condensate pipe is installed too high, the above described procedure is not feasible.
- Follow the instructions on the next page.
