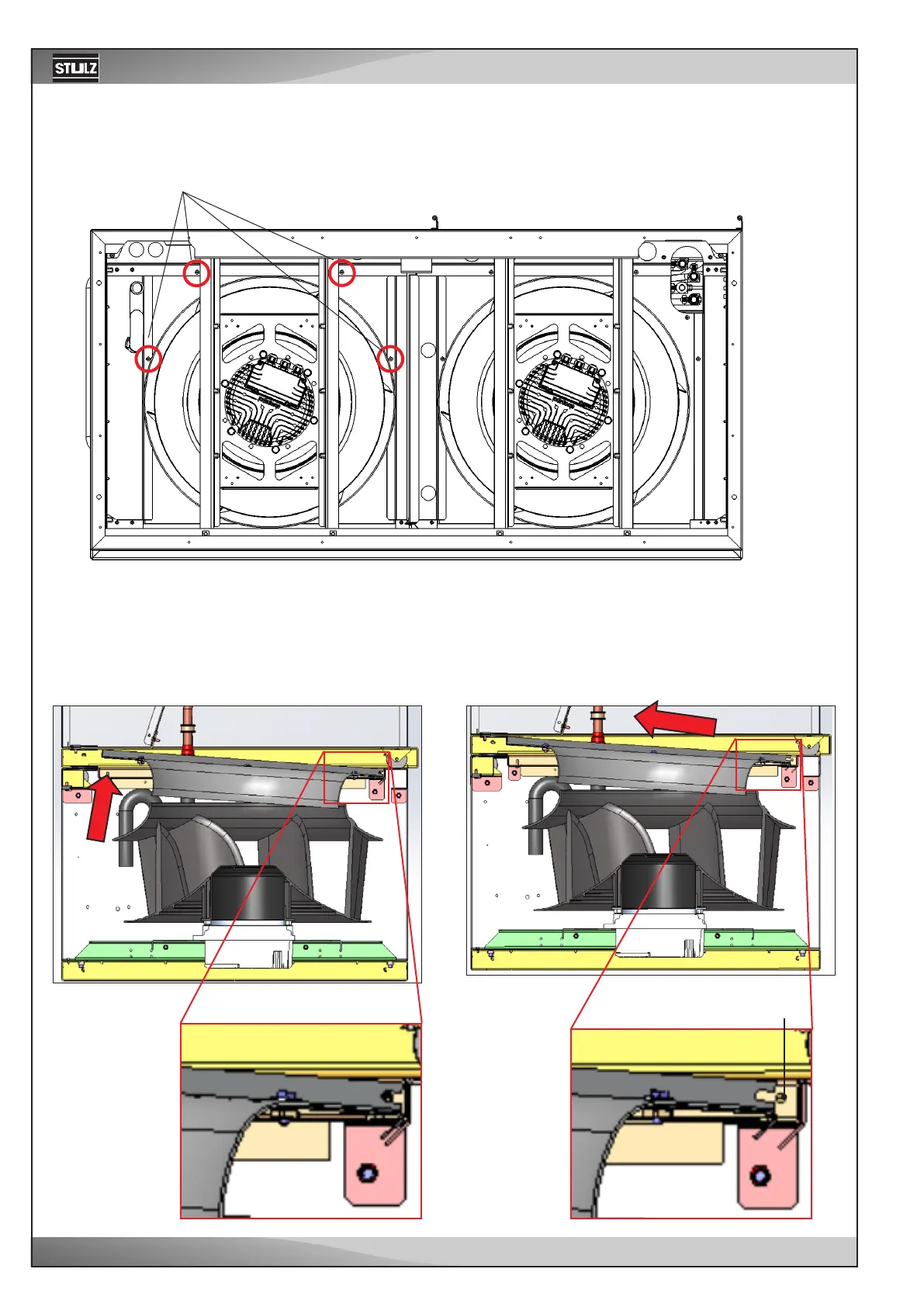

Bottom view of fan unit
Screws, 4 x M8
- Remove the four screws (marked in the drawing shown below) of the plate on which the inlet cone of the fan is
mounted.
- Push the cone support plate at the unit front upwards (A) and pull it from the rear latching (B).
Latching
