/11.2015/G17D
27
85
145
*(165)
Durchmesser
[mm]
Außengewinde
[Zoll]
28 1
35 1 ¼
42 1 ½
54 2
Gerät 201 291 331 381 431 551 271 401 511
Leitung - GE 1¼ 1¼ 1½ 1½ 1½ 1½ - - -
Leitung - GES - - - - - - 1¼ 1½ 1½
Gerät 422 532 572 722 822 1082 1252
Leitung - GE 1½ 1½ 2 2 2 2 2
Gerät 432 542 552 732 832 1092 1302
Leitung - GES 1½ 1½ 2 2 2 2 2
EN
Diameter
[mm]
ext. thread
[inch]

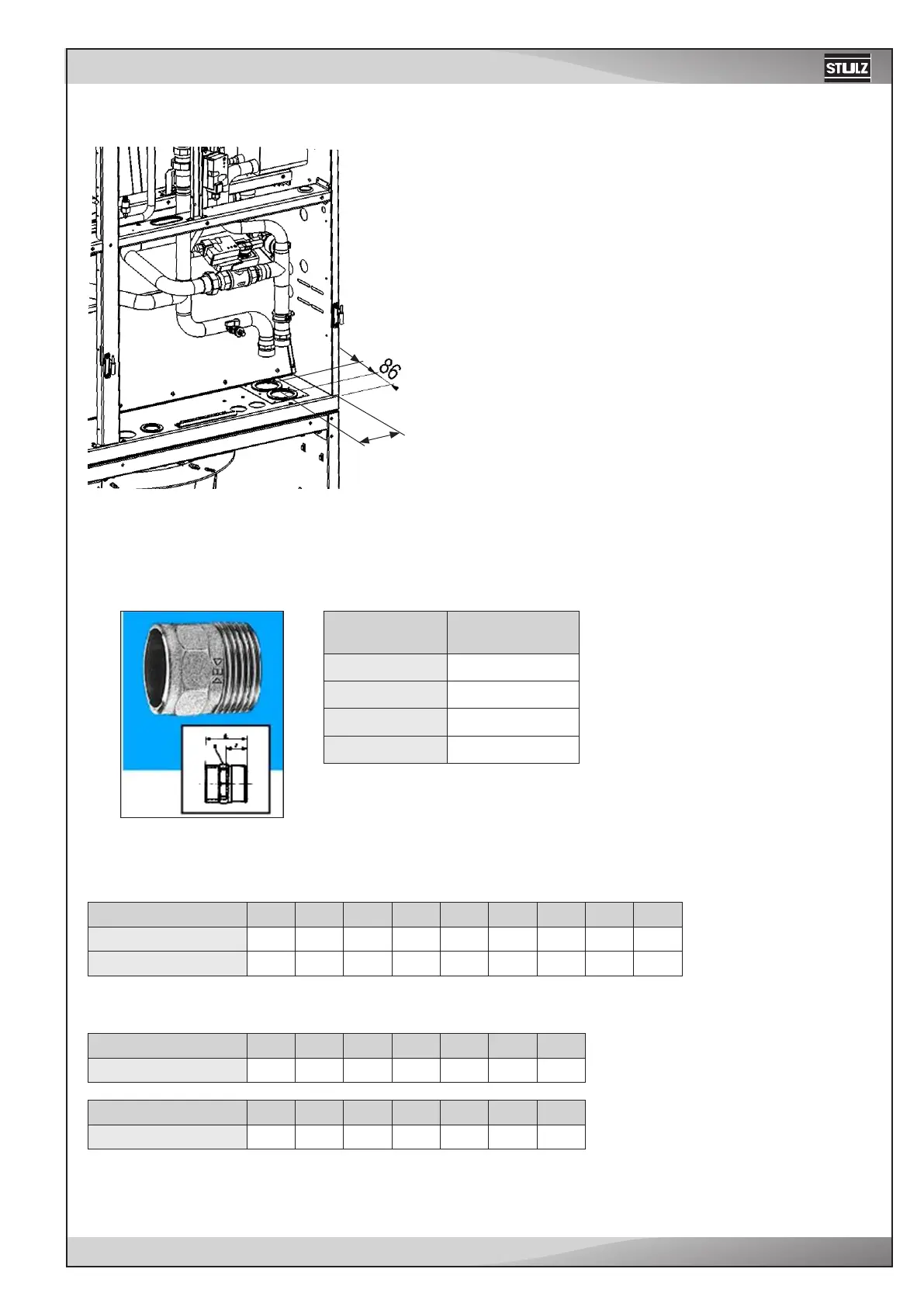

Water pipe connection (1 ref. circuit) in inches
Water pipe connection (2 ref. circuits) in inches
Unit
GE pipes
GES pipes
Unit
GE pipes
To connect the piping notice the labels on the pipe ends.
GE, GES version
*distance from the exterior side of the side panel to the zone of introduction.
This dimension is decisive if several units are installed fitting exactly side by side.
Unit
GES pipes
