Stulz CompTrol 1002 - 6 Control Diagram for CW-Units

E/0310/50/25
Numbers refer to the menu items.

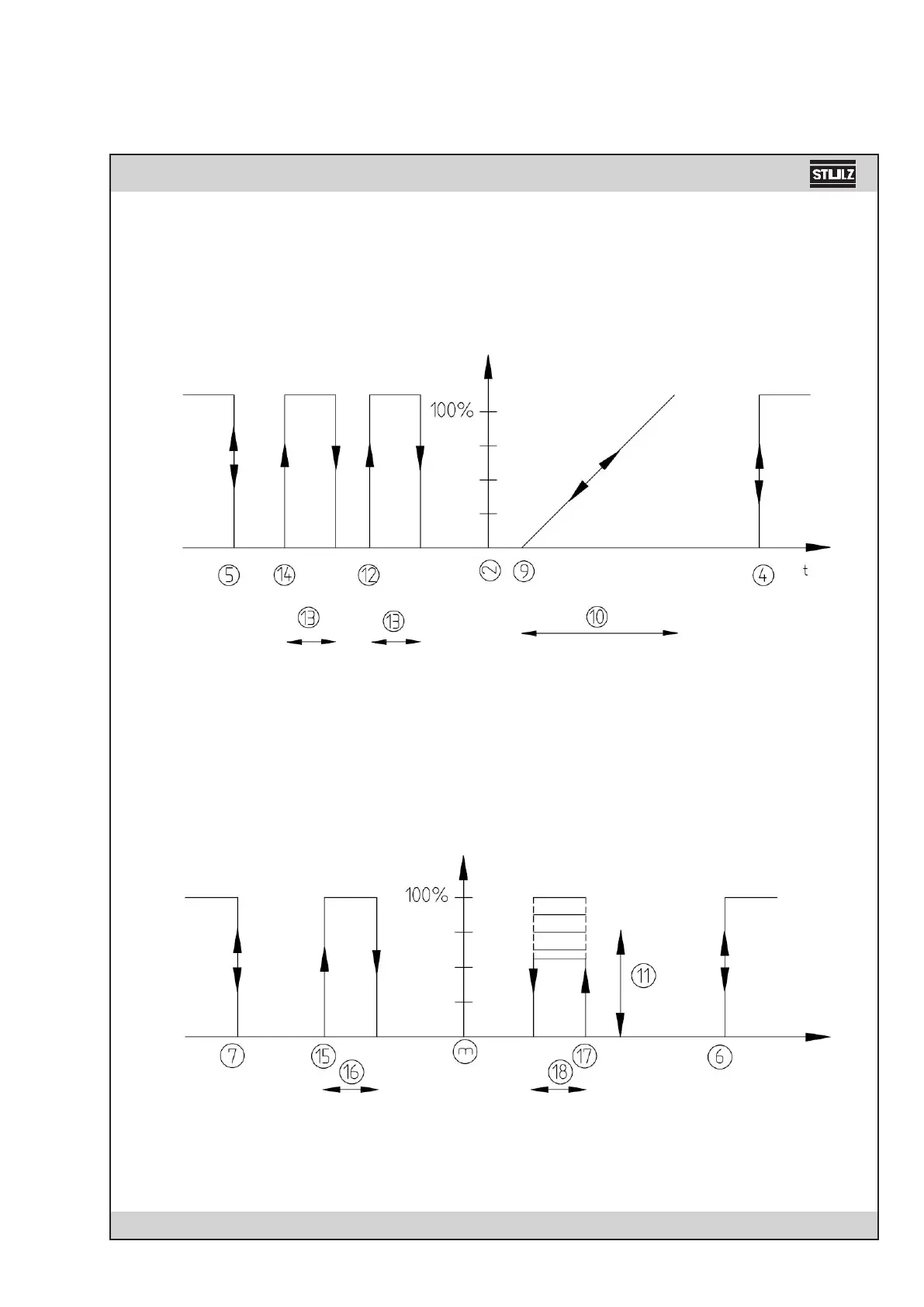

6. Control Diagram for CW-Units
Temperatur Control Diagram
Temperature
too low
Temperature
too highCW-Cooling
Setpoint
Humidity Control Diagram
Humidity
too high
Setpoint
Humidity
too low Humidification Dehumidification
rel. hum.
Reheat 1Reheat 2
