cybercool 2 screw original insTrUcTions
The outside air temperature sensor is located in the bottom section of the chiller.
The location of the sensor must be checked plant-specifically and if necessary be transferred out of the chiller
unit. In this case the sensor cable must be correspondingly extended (max. 30 m). A remote outside tempera-
ture sensor is also available as an option.
Outside temperature sensor
Free cooling valves
Longer storage and standstill periods (more than 1 month)
lead to the bonding of the valve discs.
The free cooling valves are located in the vicinity of the
compressor cabinet centered below the air heat exchang-
ers. An access is possible via the rear side of the chiller.
the chiller.
During operation, a forced movement of the free cooling
valve is configured by default.

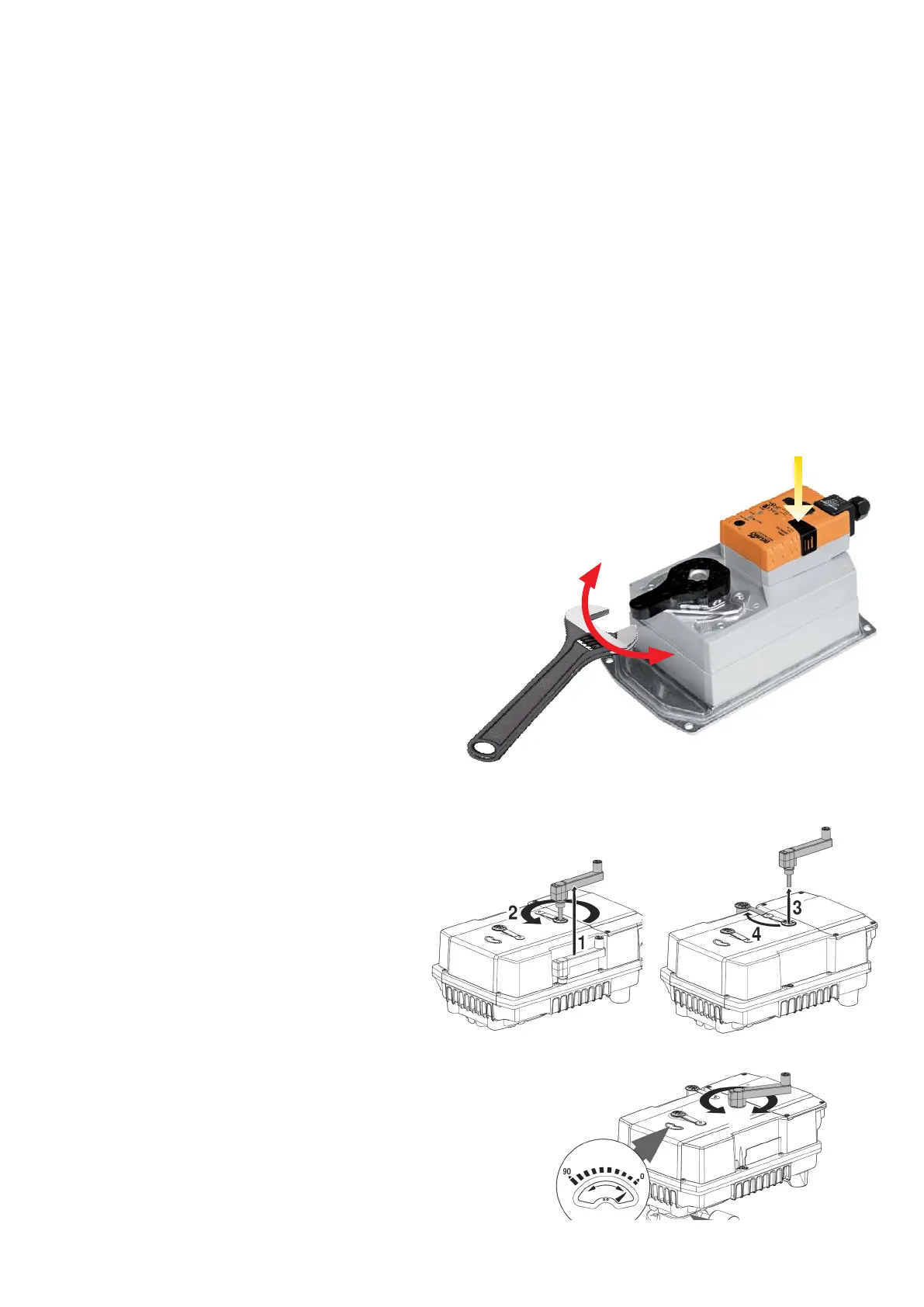

1. Press the release
button.
2. Apply the adjustable
wrench and move it
in the direction of the
arrow.
opening.
the side.
opening again and move the valve disc
by means of the crank handle.
for water pipes with DN 100125:
for water pipes with DN 150200:
