cybercool 2 screw original insTrUcTions
Opening the electric cabinet
The switched on main switch prevents opening the left door of the power section.
Only, if the main switch is in position "0" you can open the left door of the power
section.
The doors of the electric cabinet can be opened by the key which is delivered with
the chiller.

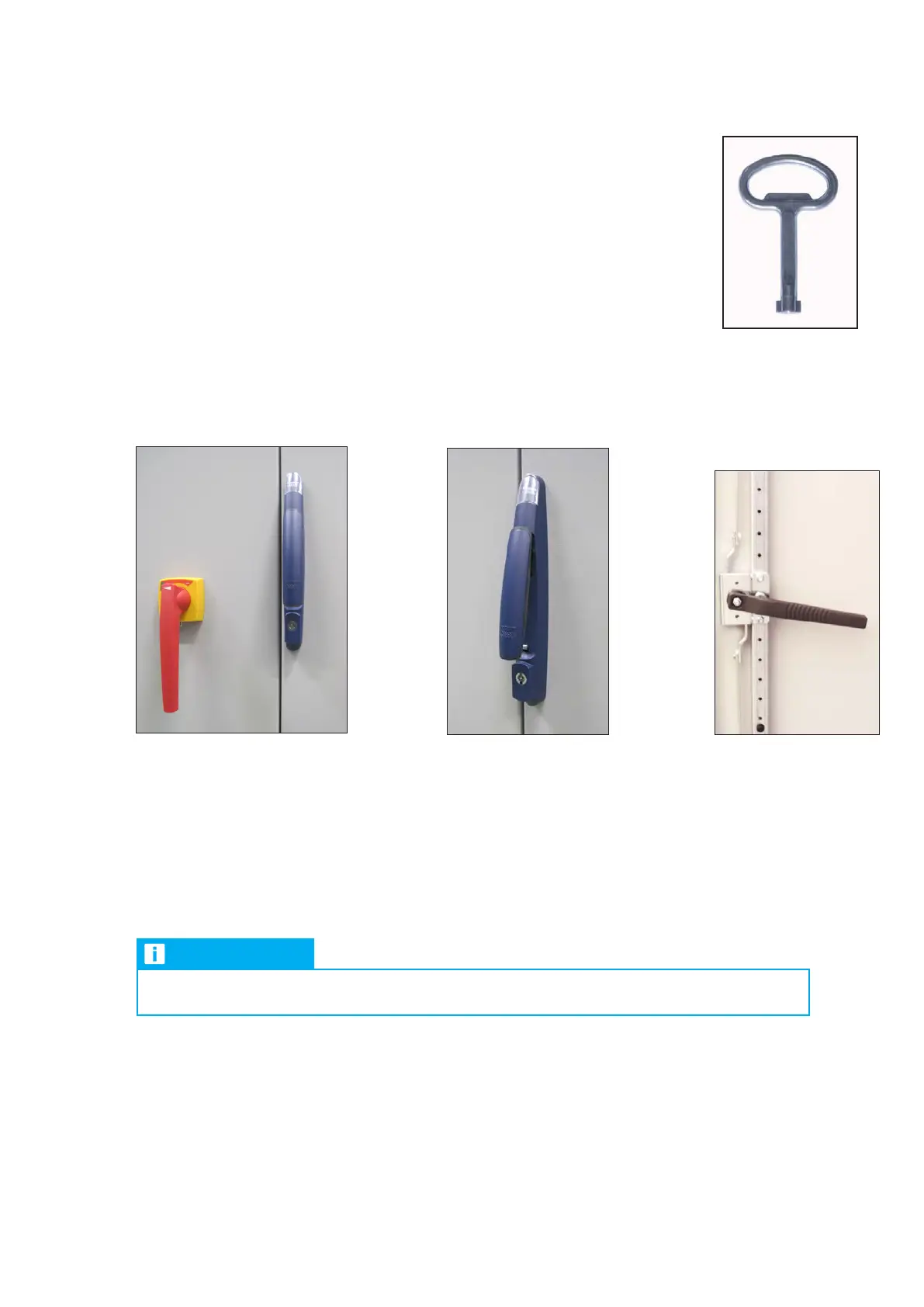

1. Insert the key into the lock and turn it by approximately 45 ° clockwise.
2. The handle pops out.
3. Pull out the handle. The door locking mechanism will be released in doing so.
4. The second door of the power section can be opened by turning the inner
locking lever counterclockwise.
Electric cabinet key
Connection of the power supply cable
neutral conductor at the neutral terminal and the three phases to the main switch, in accordance with the
wiring diagram (part of the unit documents).
NOTICE
The connection terminals are designed for copper cables.
