max. 115 mm min. 80 mm
EN/09.2019/G41 © STULZ GmbH – all rights reserved
cybercool 2 screw original insTrUcTions
Mounting
The easiest way to mount the anti-vibration mounts is to lift the chiller approximately 1.5 m above the ground
and keep it at this height while you x the mounts.
• The lower nut should be at the same height for all mounts.
• Mark the position in advance on the threaded rod.

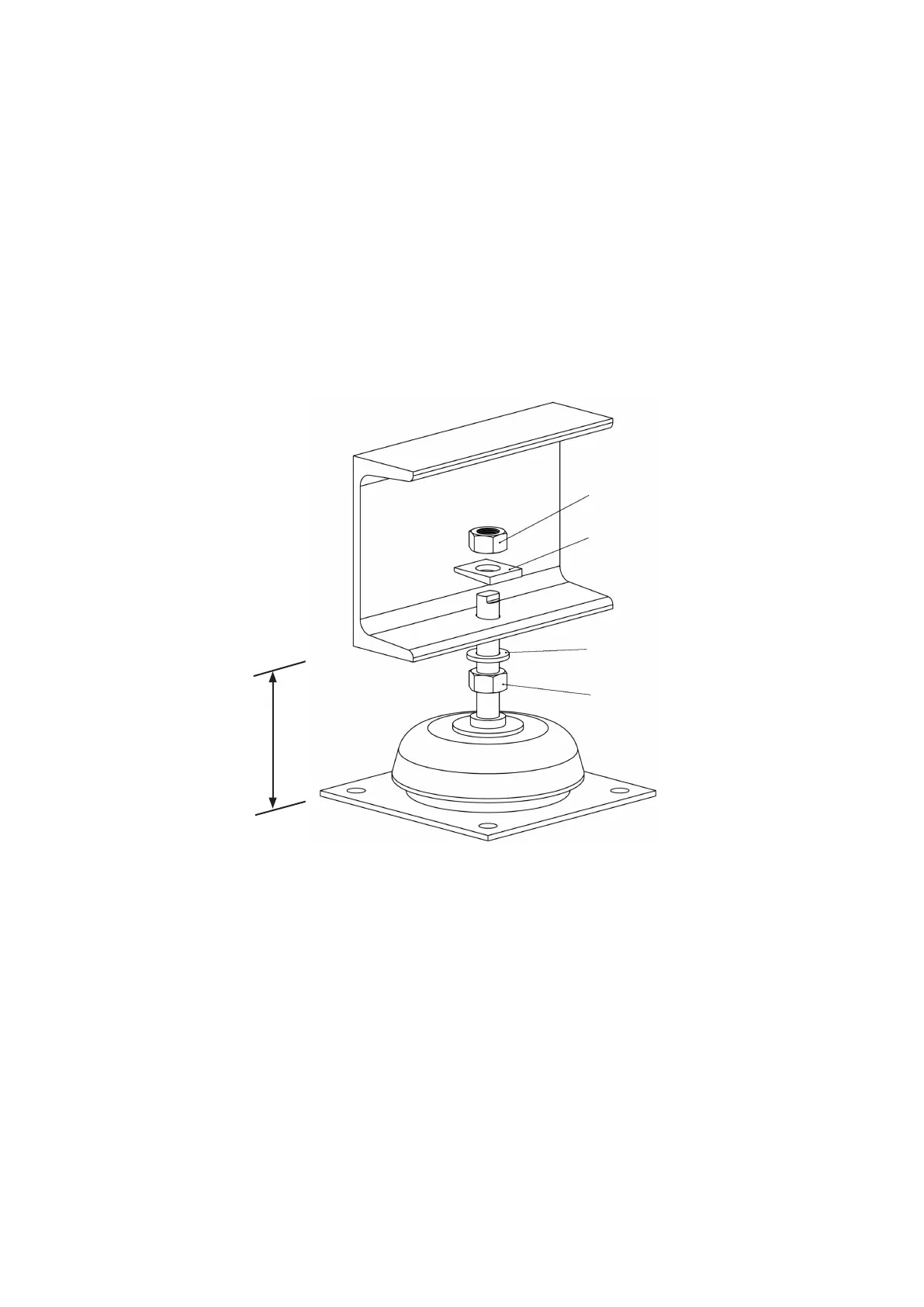

• Then attach the anti-vibration mount, in accordance with the drawing below.
• Keep in mind that the anti-vibration mounts under load yield up to 4 mm in height.
• Now position the chiller on the provided support frame and fasten the anti-vibration mounts on this frame.
nut
wedge plate
washer
nut
