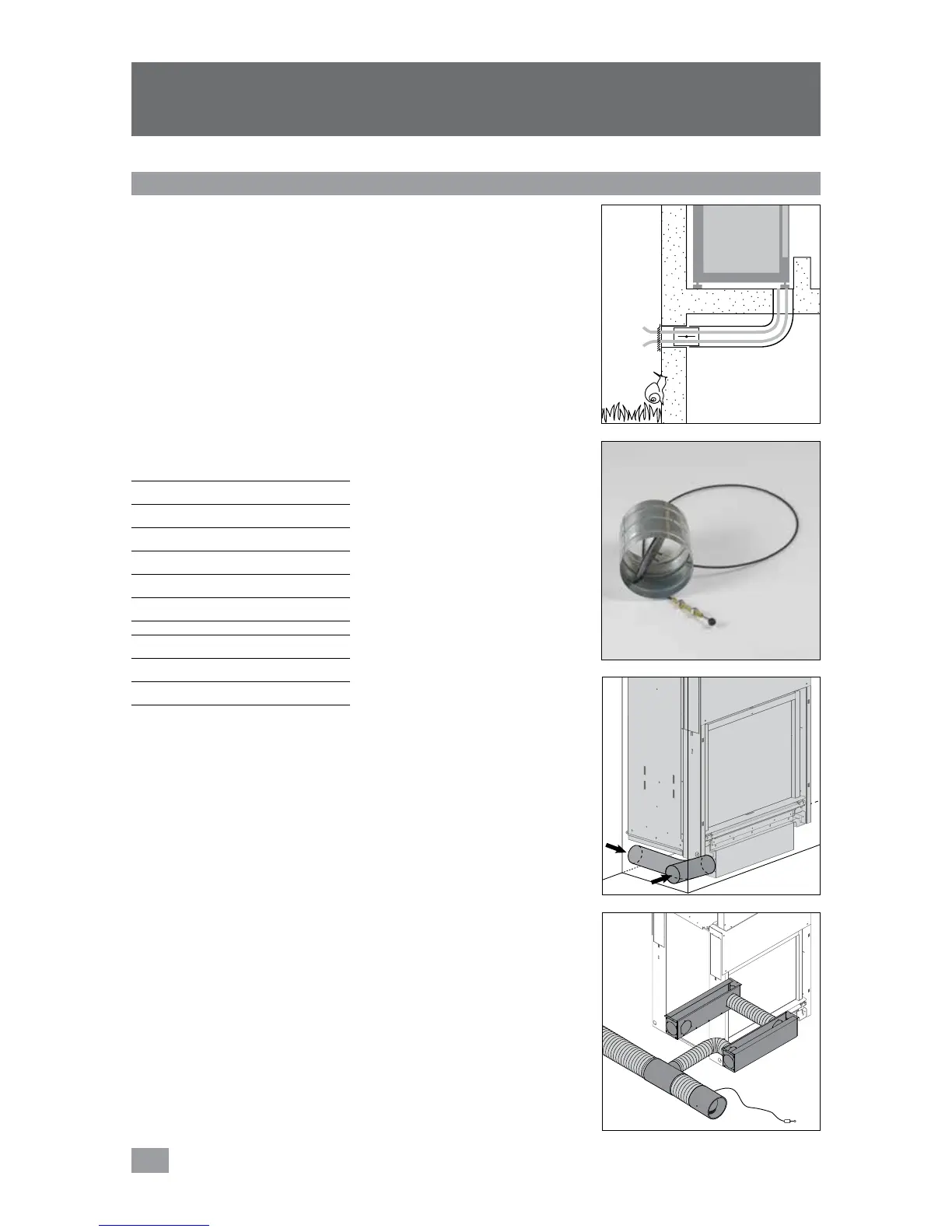

Combustion air inlet
The stove requires air for combustion.
A sufficient air inlet (see table) should
ideally be created under the stove, at
the front.
This air inlet comes from a ventilated
empty space, a ventilated room
(cellar) or from outside (mandatory
regulation in some countries)
[diagram1].
The figures given in the table below
are for information purposes only.
Please take account of applicable
local and national standards and
regulations.
Stûv 21/65c min. 1 dm²
Stûv 21/65H min. 1 dm²
Stûv 21/75 min. 1 dm²
Stûv 21/85 min. 1 dm²
Stûv 21/95 min. 2 dm²
Stûv 21/105 min. 1 dm²
Stûv 21/75 DF min. 2 dm²
Stûv 21/85 DF min. 2 dm²
Stûv 21/95 DF min. 2 dm²
The duct carrying this air...
... will be protected on the outside
by a grill the free passage section of
which is at least equivalent to the
section of the air inlet. Please note
that the infiltration of water and the
effect of the wind can damage the
system.
... will be as short as possible to
prevent pressure loss and to prevent
making the house cold.
... will ideally be fitted with a closure
valve [photo 2] to prevent the room
from becoming cold when the stove is
not in use. It should ideally be located
as close as possible to the outside
wall. It can be controlled from inside
if it is not too far away from the stove
(cable length= 120cm).
If it is not possible to bring in
outside air near the stove
(most unfavourable case)...
...ensure there is sufficient
replenishment of air in the room when
the stove is in use.
Please note
1) Be careful with air extraction
systems (kitchen hoods, air
conditioning, mechanically-controlled
ventilation, other stoves) in operation
in the same space or in an adjacent
room. They also use lots of air and
can cause a depression in the room
and prevent the stove from operating
correctly (risk of draughtback). They
can affect the operation of the stove
even if it is connected to an outside
air inlet.
2) If a forced convection system is
installed, it is strongly advised that air
is drawn in from the outside or from
the room (in all circumstances, outside
the fireplace mantel) [diagram 3].
3) Dans le cadre de l'installation d'un
Stûv 21 double face, veillez à bien
relier les 2 boites d'air [schéma 4]
PREPARATION OF THE AREA
