Stûv 21 - installation [en] - 04-2013

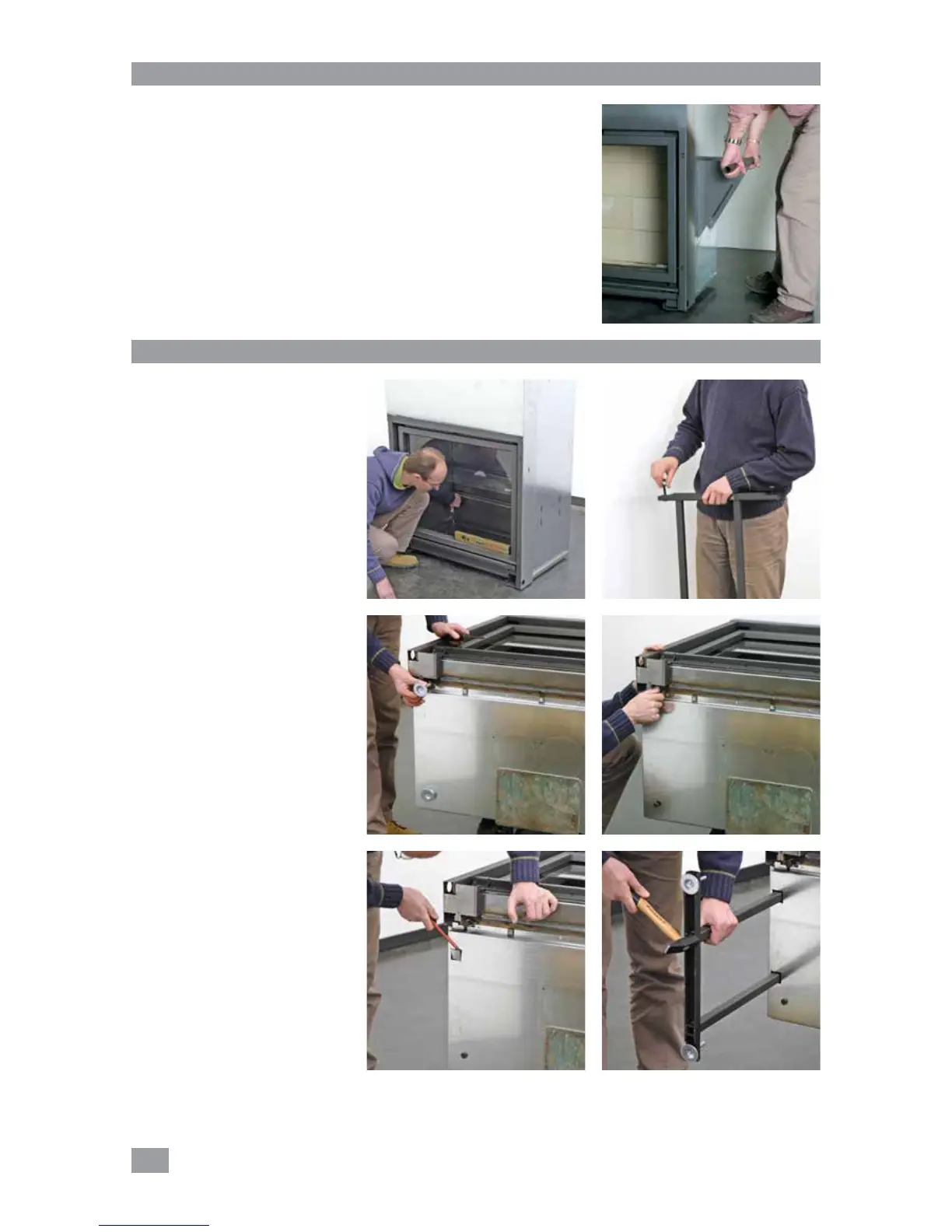

You can move the fireplace with :
– a forklift : leave it on its pallet ;
– a two-wheel hand trolley : tilt the
fireplace backwards and leave the
pallet ;
– the handles designed for this
purpose : they are reversible
[photo1].
We recommend that you remove all
items from within the combustion
chamber to make the stove lighter
and easier to move.
Moving
Positioning of the stove
The fireplace will rest :
> on the floor or a masonry base :
Level the fireplace with the four
adjustable struts accessed from inside
the combustion chamber.
Use the 5mm Allen key to set height
at the 4corners [photo 1].
> on the optional Stûv base :
Remove the M10x40 screws fitted
to each leg [photo 2].
Tilt the fireplace to lay on its back,
then remove the adjustable struts
[photo3] and screw them on the base
at full thread without locking them.
Caution : To prevent any unwanted
air flow inside the hearth, seal the
threads that held the adjustable struts
with the surplus M10x40 screws.
[photo 4].
Remove the four caps by levering
them off [photo 5].
Recut the base elements, if necessary,
so that the stove can be raised to
the desired height. Insert them into
the square holes [photo 6]. The base
elements are not symmetrical so place
the longer sides towards the front of
the stove.
If not cut they will raise the stove
by 44.3 cm; the opening of the
stove is then 60 cm above floor level
[photo 7]. If a fan is to be positioned
under the stove, allow at least 25
cm in height under the stove to
accommodate it.
