Stûv 21 - installation [en] - 04-2013
Lining the combustion chamber (continuation)

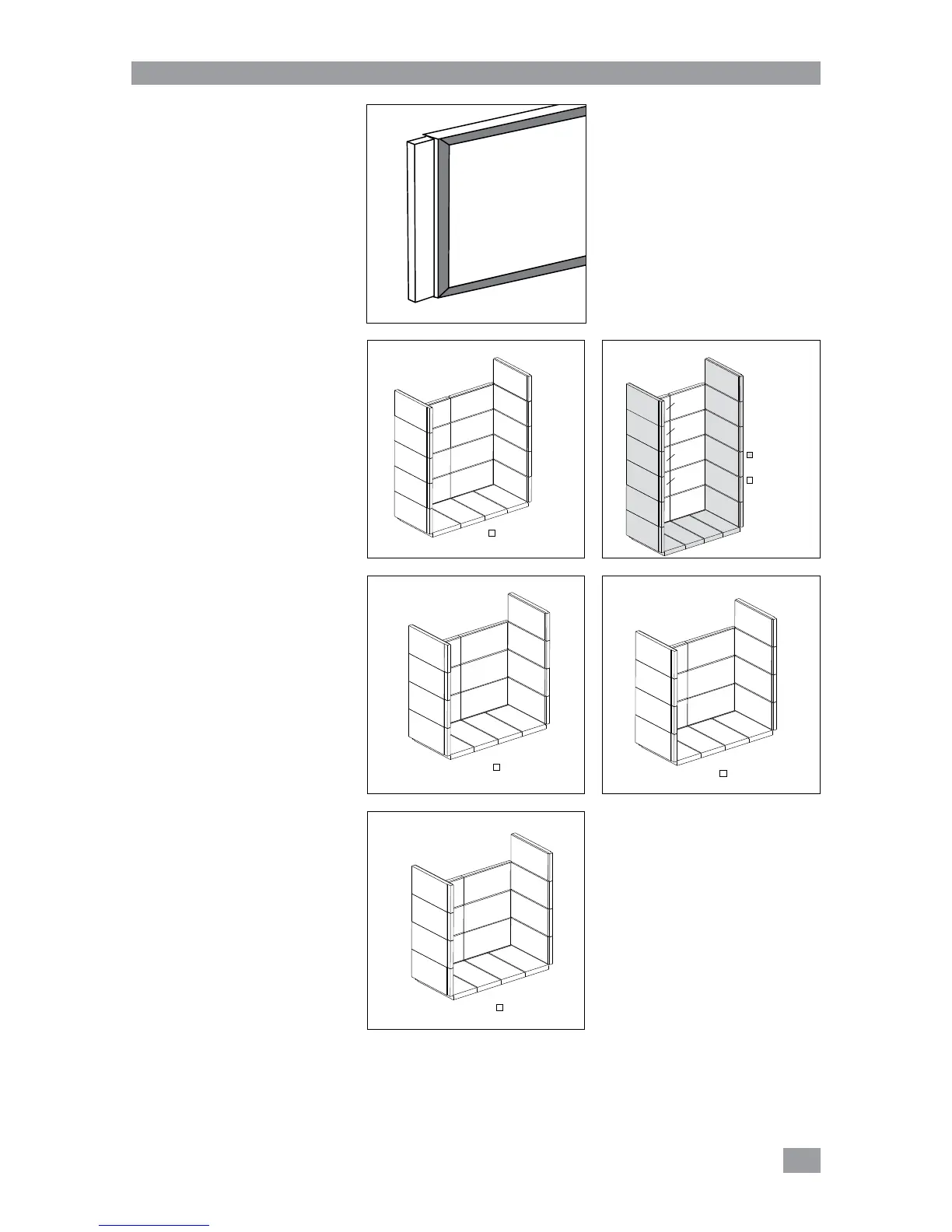

Positioning the refractor panels
Make sure you always position
chamfers towards the inside of the
hearth [diagram4].
Follow the sequence indicated,
depending on the model of fireplace
to be lined.
To fine-tune the alignment of the
refractors, lever them with a flat
screwdriver.
Stûv 21/65C SF, 21/65H SF,
21/75 SF, 21/85 SF & 21/95 SF
Lining the bottom : place the rebated
refractors to the far end (to receive
the back wall refractors).
Place the side refractors as far forward
as possible (with the rebate towards
the front of the fireplace) so as to be
able to fit the refractors lining the
back wall.
Place the back wall refractors as far
to the outside as possible then centre
them.
Finally push the side refractors
towards the back (to hold in place the
refractors lining the back wall).
Lining the combustion chamber (continuation)
Inside the stove
