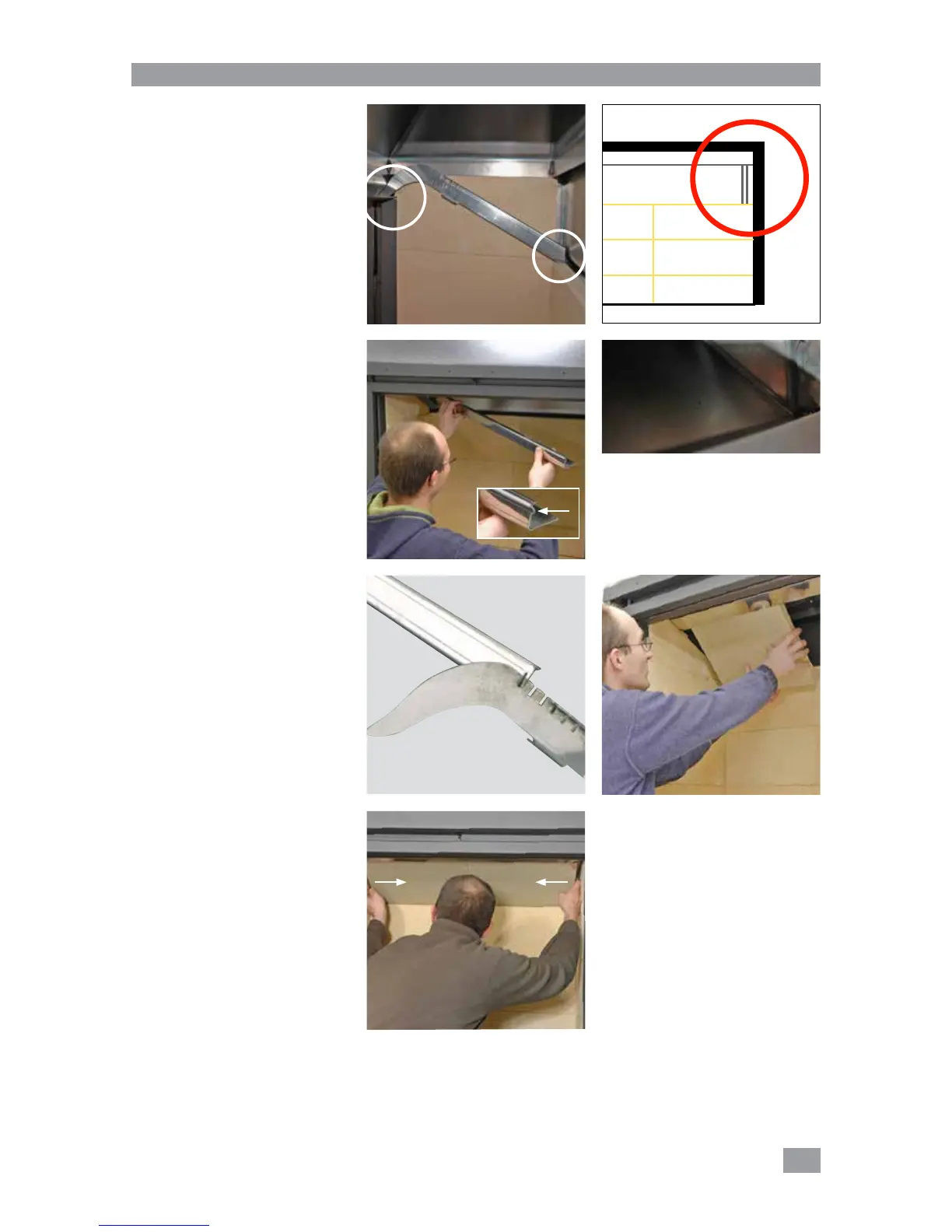

Fitting baffles (continuation)
These side supports should rest at the
bottom of the hearth on the edge of
the rearmost refractor plate and in the
metal groove in front [photo 8].
These supports must run perfectly
parallel to the side refractor plates
[diagram9].
Check that the tip of support is well
lodged in the groove and that it is not
stuck between the tip of the groove
and the hearth wall.
Place the front crosspiece [photo 10].
Its lug should rest in the front notch
of the side support [photos 11 & 12].
Fit 2, 3 or 4 vermiculate plates
according to model [photo 13].
Secure and centre the whole
assembly : stainless steel supports and
vermiculate plates [photo 14].
If the draught is still inadequate, the
front crosspiece should be moved
towards the rear of the hearth. Insert
the lugs into the corresponding
notches [photo 12].
Réglage de la chicane suivant le
tirage
If the draught is still inadequate, the
front crosspiece should be moved
towards the rear of the hearth. Insert
the lugs into the corresponding
notches [photo 12].
