Wine Storage
Wine Storage
(400-
(400-
2
2
)
)
Series
Series
Installation Information
2-5
#3758410 - Revision C - May, 2014

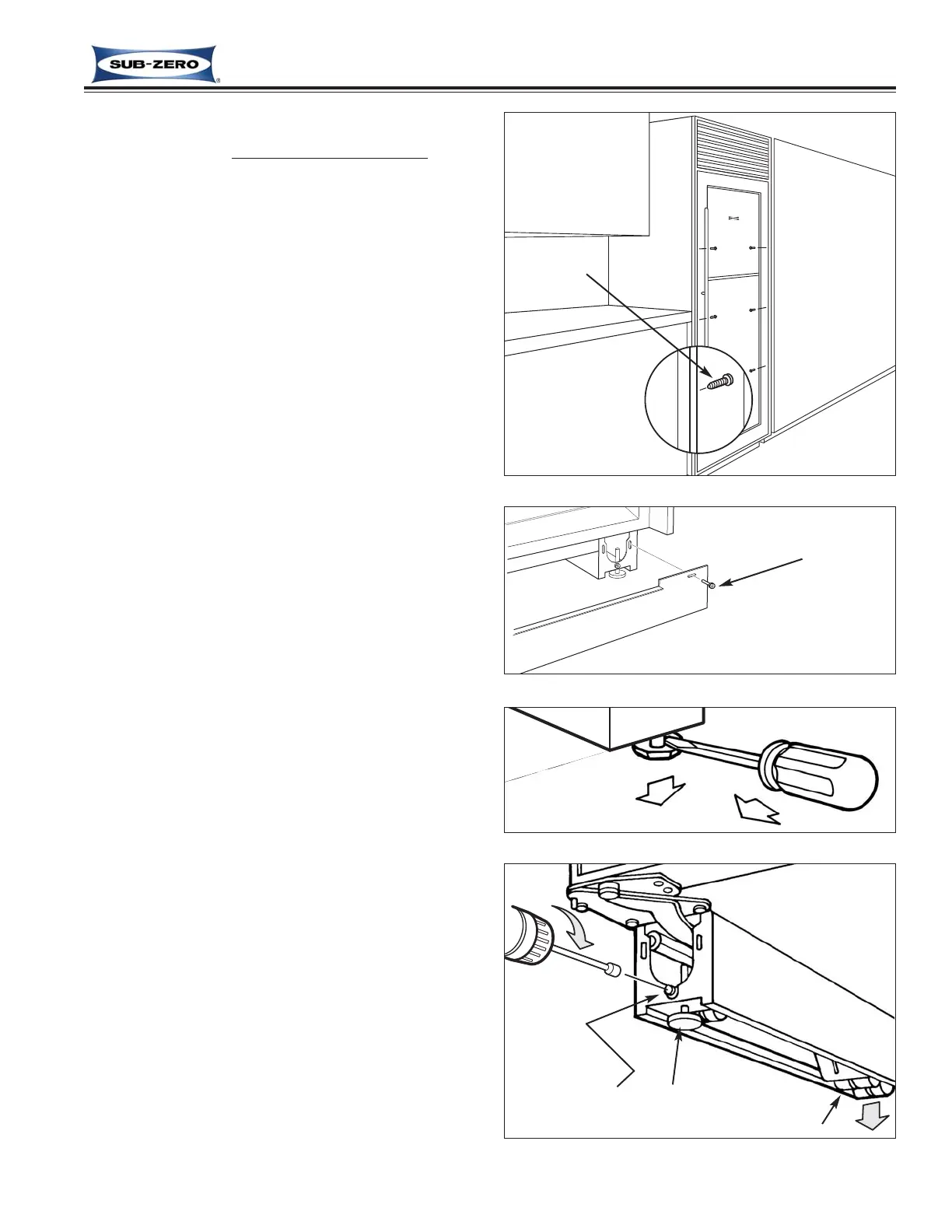

Figure 2-11. Kickplate Removal
Figure 2-13. Adjusting Rear Levelers
Kickplate
Screw (2)
Unit Leveling (430-2)
NOTE: Unit must be installed before final leveling
. If
unit is anchored to cabinets, remove anchor screws
before leveling, reinstalled after (See Figure 2-10).
1. Remove kickplate (See Figure 2-11).
2. To raise front, turn front leveler legs counterclock-
wise, clockwise to lower (See Figure 2-12).
3. At front of unit base is an adjusting screw that reach-
es to rear leveler/roller assembly. To raise unit rear,
use 5/16” socket wrench to turn adjusting screw
clockwise to raise, counterclockwise to lower (See
Figure 2-13).
NOTE: Level is best checked at top & side mainframe.
Figure 2-12. Adjusting Front Leveling Legs
Figure 2-10. Anchoring Screws Removal
Screw
Rear Leveler
Adjusting Screw
Front Leveling Leg
Rear Leveler Assy
To Next Page
