Wine Storage
Wine Storage
(400-
(400-
2
2
)
)
Series
Series
Installation Information
2-7
#3758410 - Revision C - May, 2014
Door Stop Adjustment (427-2 & 427R-2)
Models 427-2 and 427R-2 have a 90° door stop cam
built into the hinge system. The 90° door stop cam is
located in the center portion of the hinge.
To adjust the stop, use a standard straight-blade screw-
driver to rotate cam until stop point is reached. (See
Figure 2-17)
NOTE: Door stop adjustment must be performed at
both bottom and top hinges.
Door Stop Installation (430-2)
For the model 430, optional 90° and 105° door stops
are available, free of charge from Parts Distributors
and/or Product Distributors. The part number for the
90° stop is #DS90, and the part number for the 105°
stop is #DS105.
To install a door stop, the door must be closed, then
(See Figure 2-18):
1. Slide door stop cam up onto bottom hinge pin.
2. Position stub on door stop into hole in cabinet
hinge.
3. Retain door stop by pushing E-Ring into groove at
end of bottom hinge pin, making sure E-ring is
clipped securely into groove.

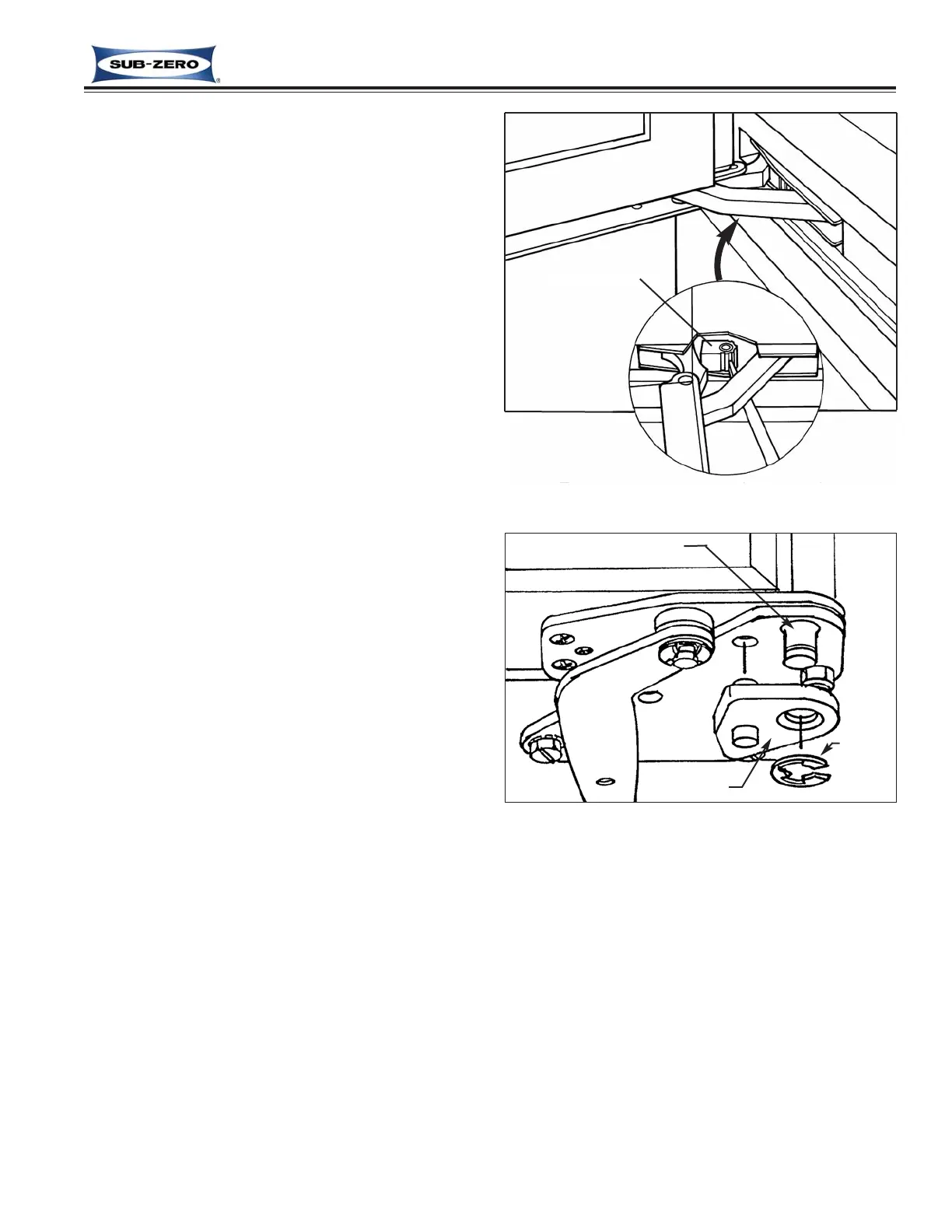

Figure 2-17. Door Stop Adjustment
Figure 2-18. Door Stop Installation
E-Ring
Door Stop
Hinge Pin
90° Stop Cam
