Wine Storage
Wine Storage
(400-
(400-
2
2
)
)
Series
Series
Electronic Control System
3-5
#3758410 - Revision C - May, 2014

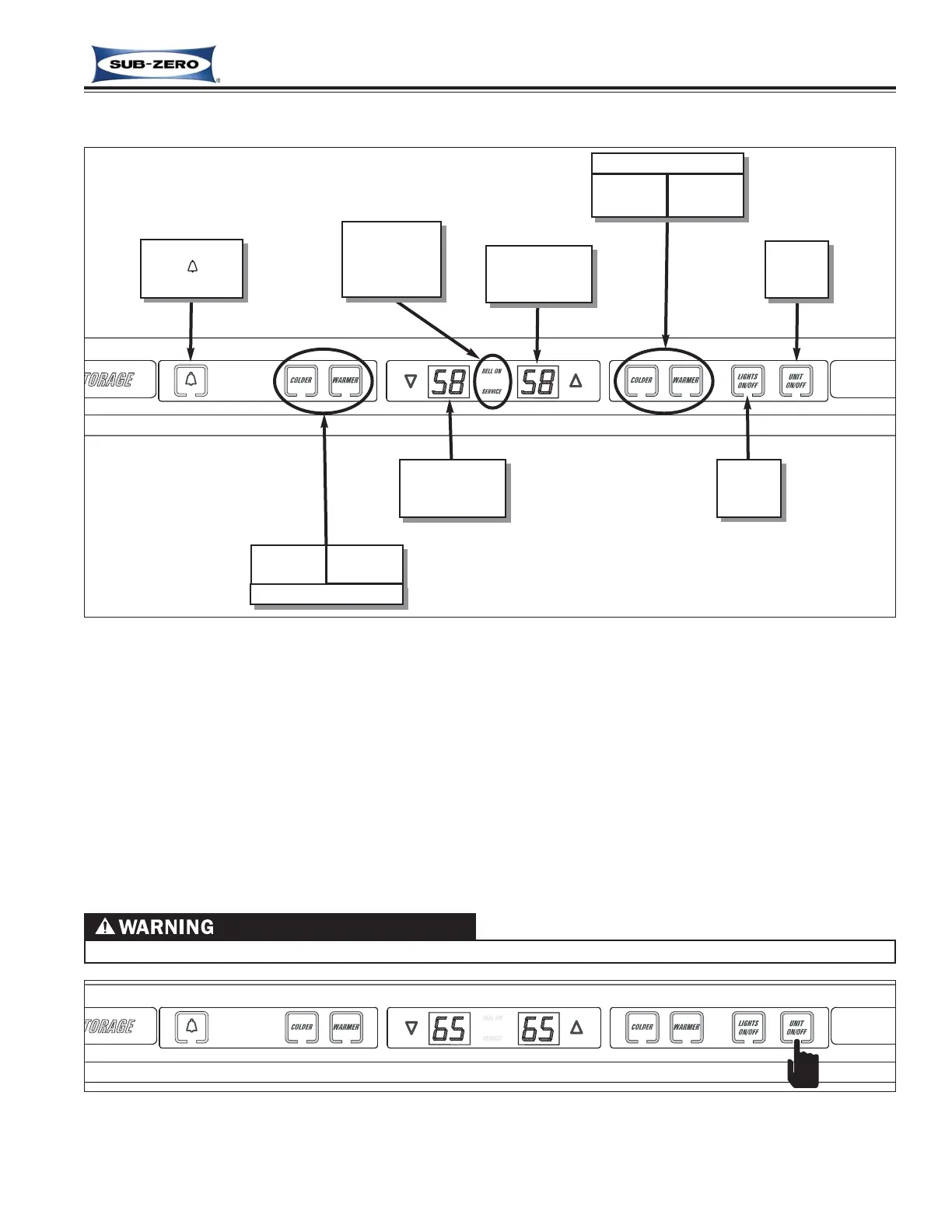

WINE STORAGE CONTROL PANEL LAYOUT
Figure 3-4. Wine Storage Control Panel Layout
WHEN IN OFF MODE, 115 VOLTS AC IS STILL PRESENT AT CONTROL BOARD.
Figure 3-5. Unit ON/OFF, Press UNIT ON/OFF Key
BASIC WINE STORAGE INPUT OPERATIONS
The following pages describe basic input operations performed at the control panel. The subjects covered are:
switching unit ON / OFF; adjusting set-point (temperature adjustment); switching lighting system ON / OFF, and
enabling and disabling temperature alarm feature. Please note that though possible to display temperatures in
Fahrenheit or Celsius, in most cases Fahrenheit readings are shown.
Unit ON/OFF
400-2 Series units are shipped in the Off Mode. By pressing and releasing the UNIT ON/OFF key, power is allowed
past the control board to the rest of the unit (See Figure 3-5).
BELL ON
&
SERVICE
indicators
Upper
Compartment
Temp Reading
Lower
Compartment
Temp Reading
Upper Compartment
COLDER
key
WARMER
key
Lower Compartment
COLDER
key
WARMER
key
Alarm Bell
ON/OFF key
UNIT
ON/OFF
key
LIGHTS
ON/OFF
key
