Built-In Installation 20
Door Adjustment
T
he doors for built-in side-by-side models and the upper
door on over-and-under models can be adjusted in three
ways: in and out, side to side tilt, and up and down
(except over-and-under models).
Regardless of the adjustment being made, start by slightly
loosening the two upper hinge bolts on the upper hinge
plate using a
1
/2" wrench. Refer to the illustration below.
IN AND OUT ADJUSTMENT
Refer to the illustration for location of the bolt for in and
out door adjustment. To adjust a left-hinge door; using a
5
/32" allen wrench, turn the bolt clockwise to bring the
handle side of the door inward, and counterclockwise to
move the handle side of the door outward. Reverse the
directions for a right-hinge door.
SIDE TO SIDE TILT ADJUSTMENT
Refer to the illustration for location of the bolt for side to
side tilt door adjustment. To adjust a left-hinge door; using
a
3
/8" wrench, turn the bolt clockwise to raise the handle
side of the door up and counterclockwise to tilt the handle
side of the door down. Reverse the directions for a right-
hinge door.
DOOR HEIGHT ADJUSTMENT
To adjust a left-hinge door; using a
1
/4" allen wrench, turn
the bolt clockwise to raise the door and counterclockwise
to lower the door. Refer to the illustration above. Reverse
the directions for a right-hinge door.

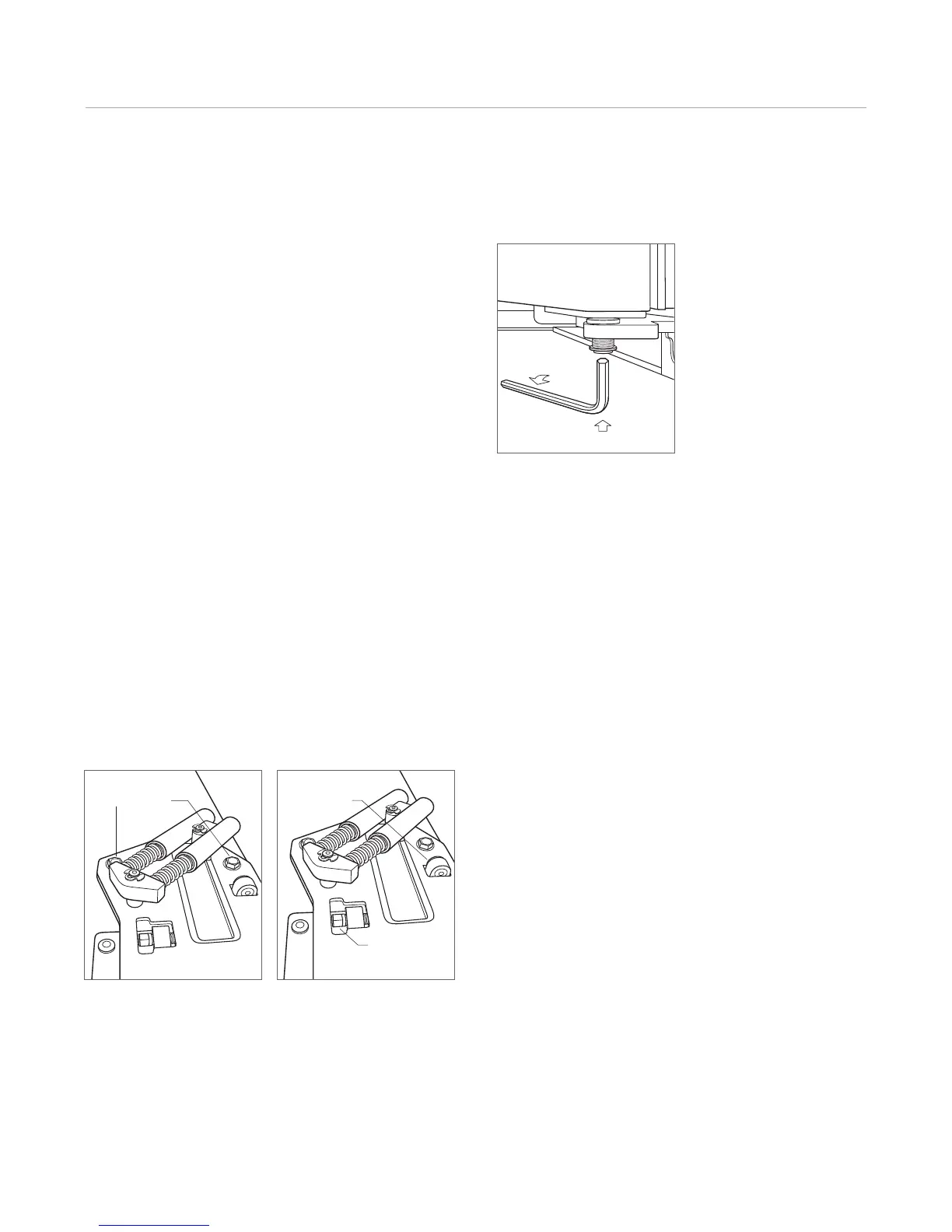

Upper hinge bolts. Door adjustment bolts.
SIDE TO SIDE
TILT ADJUSTMENT
IN AND OUT
ADJUSTMENT
Door height adjustment.
