Built-In Installation 21
subzero.com

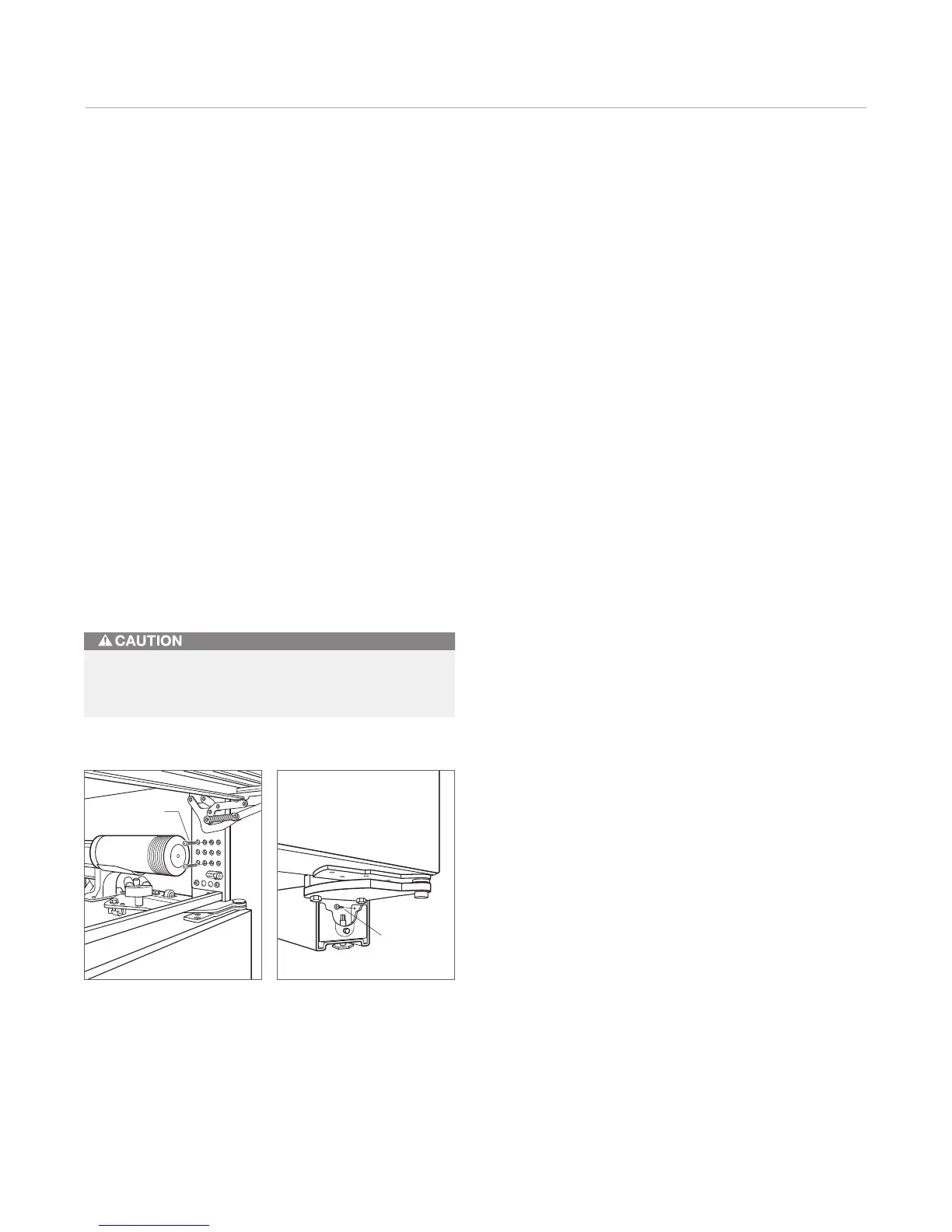

Top anchoring. Bottom anchoring.
Anchoring
A
fter door and side panels have been installed, the unit
has been leveled and door adjustment completed, anchor
the built-in unit to the opening. This will assure a proper fit
and a secure installation.
IMPORTANT NOTE: Be sure to level and square the unit
before anchoring it.
To anchor the top of the unit to cabinetry, open the grille,
and install the screws provided through the grille frame
into the cabinetry. There are several hole locations
provided. Check for proper door clearance by fully
opening the door. Refer to the illustration below.
To anchor the bottom of the unit, drive a screw through
the side hole inside the roller base assembly. There is one
on each side. The screw will need to go in at an angle in
order to attach properly. Refer to the illustration below.
Additional material may be needed behind the cleat to
ensure sufficient anchoring.
If the screws provided are not suitable for your
application, you must provide adequate screws.
Complete the Installation
B
efore installing the kickplate, be sure to reinstall the drain
pan. Once the drain pan is in place, screw the kickplate
the to brackets attached to the inside surface of each
roller base.
IMPORTANT NOTE: The kickplate must be removed for
servicing. The floor cannot interfere with removal. Refer to
the label mounted on the kickplate support for height
clearance.
Reinstall the grille following the instructions on page 15.
Turn power back on to the electrical outlet.
