Door Panel
Custom Panel

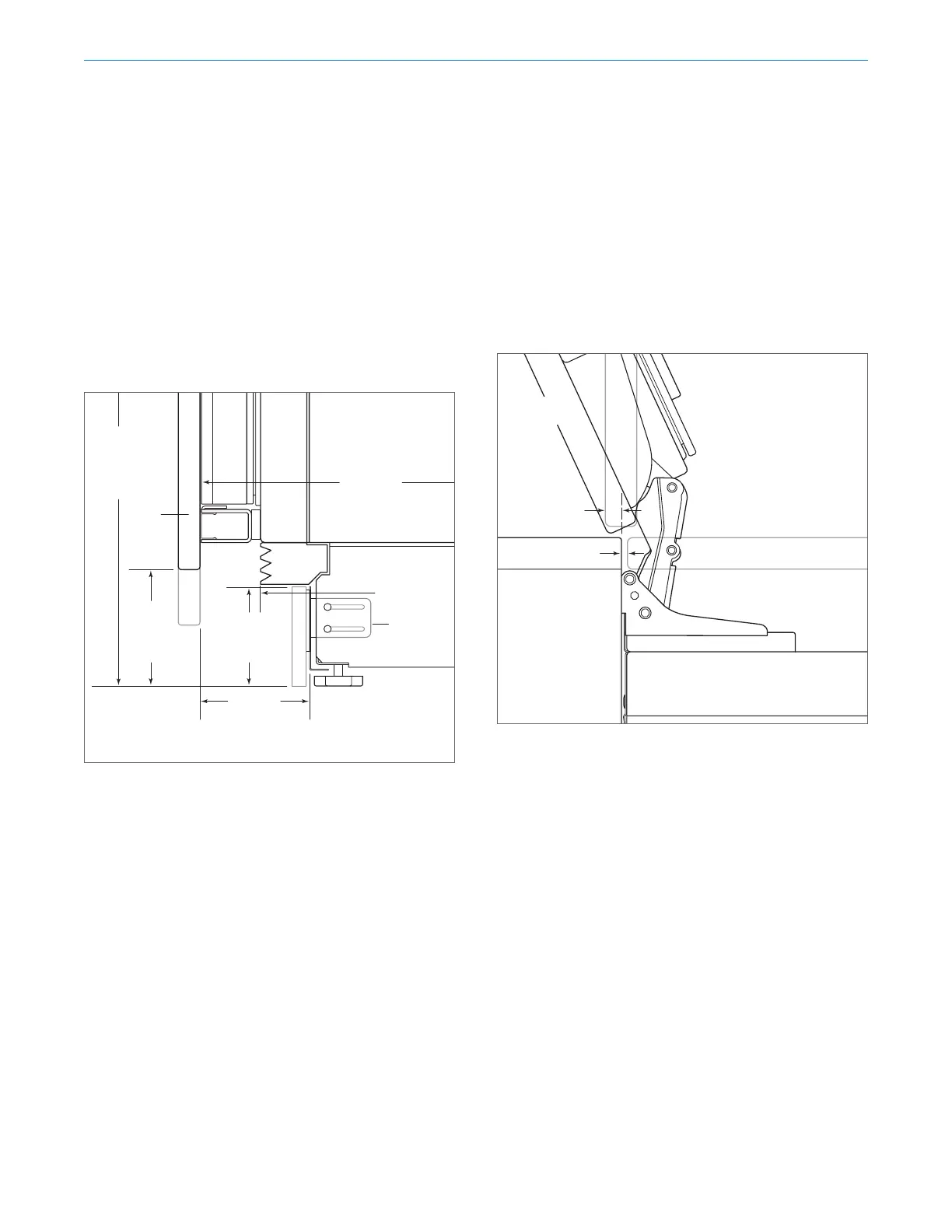

TOE KICK CLEARANCE
The height of the toe kick area can extend beyond the
typical toe kick height, provided it does not exceed the
dimensions in the illustration below. For questions
regarding the installation, call Sub-Zero Customer Care
at 800-222-7820.
MAXIMUM DOOR OPENING
As the panel width and/or depth increases, so does the
potential for panel interference. Interference may be
minimized by using the 90° door stop.
3
/8" (10)
DOOR CLOSED
3
/4" (19) PANEL
1
/
8
"
(3) REVEAL
ADJACENT
CABINETRY
DOOR
OPEN
90°
DOOR OPEN
MAXIMUM 115°
Maximum door opening (top view)
DOOR
PANEL
HINGE
23
1
/8" (587)
TO BACK OF UNIT
2" (51)
TO
4
1
/
2
"
(114)
FROM
FLOOR
3
1
/2" (89)
MAX DEPTH
1
1
/8" (29)
KICKPLATE
ADJUSTMENT
34
1
/2" (876)
OR
32
1
/2" (826)
TYPICAL
PRODUCT
HEIGHT
DECORATIVE KICKPLATE
CANNOT EXTEND
BEYOND THIS
POINT
3
3
/8" (86)*
DECORATIVE
KICKPLATE
HEIGHT
*Not included. Dimension will vary as the product height increases or decreases
from the typical product height.
Toe kick clearance (side view)
