KICKPLATE INSTALLATION
The kickplate must be removable for service. The floor
cannot interfere with removal. Finger-tighten the adjust-
ment bracket nuts. Refer to the illustration below. Make
in-and-out adjustments, then wrench-tighten the bracket
nuts. Install the kickplate with the provided screws.
A decorative kickplate can be attached to the factory-
installed kickplate. The three rows of vented louvers
cannot be covered.
To install a decorative kickplate, remove the paper backing
from the magnets and attach the decorative kickplate to
the magnets. The magnets allow the decorative kickplate
to be removed if necessary.
Installation
IN-AND-OUT
ADJUSTMENT
SCREW
MAGNET

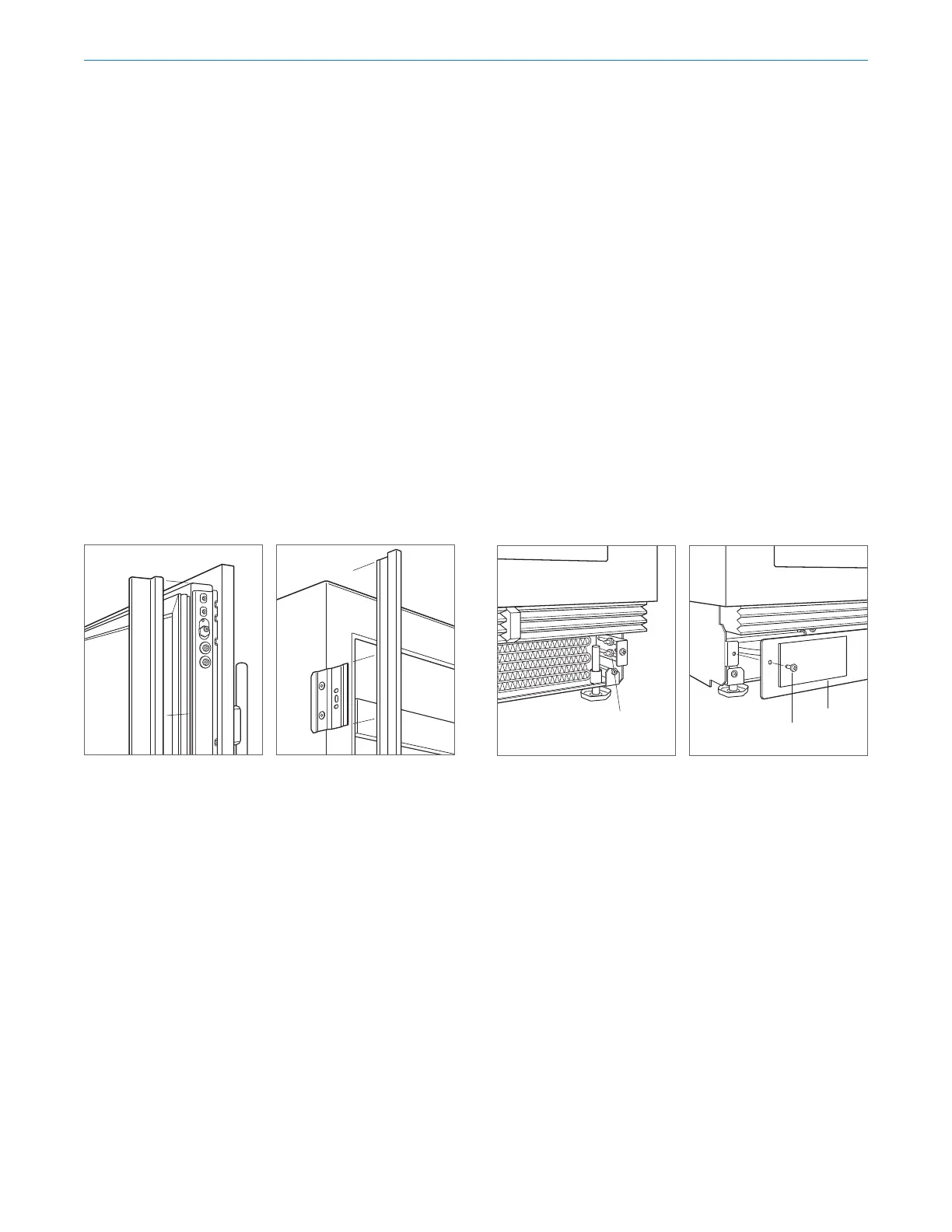

Kickplate adjustment Kickplate installation
Completion
DOOR TRIM INSTALLATION
After the door panel has been adjusted, install the deco-
rative side trim to the door. To install, start at the top
and align the trim with the front and rear flanges on the
bracket, then snap into place by pushing the trim toward
the back of the panel. Once the top is secure, continue the
installation downward until the remaining trim is com-
pletely secure. Refer to the illustration below.
SIDE TRIM INSTALLATION
Install the decorative trim strip to the handle side of the
unit. The side trim snaps over the brackets attached to the
handle side of the unit. Refer to the illustration below.
Door side trim Unit side trim
