Panel Installation
DOOR PANEL ADJUSTMENT
Close the door. Make any necessary adjustments to align
the panel and reveals.
For side-to-side adjustment, move the panel side to side,
then install and tighten all mounting screws.
For up-and-down and in-and-out adjustments, slightly
loosen the bracket screws. Depending on the level of
adjustment required, it may be helpful to loosen all of the
bracket screws which will allow for maximum adjustment.
Once the bracket screws are loosened, use a wrench to
rotate the cams to make adjustments. After the adjust-
ments have been made, tighten all bracket screws. Refer to

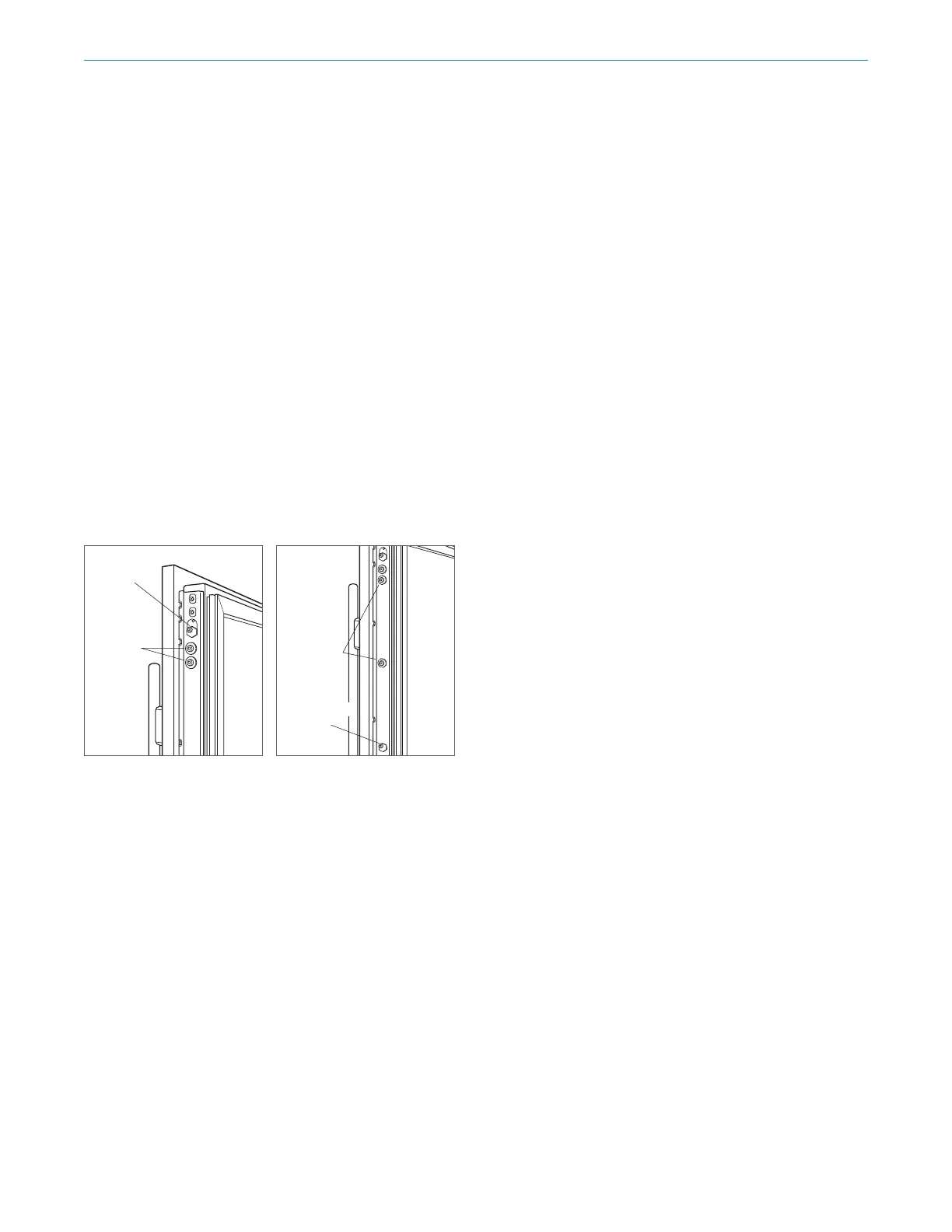

the illustrations below.
Panel Installation
BRACKET
SCREWS
IN-AND-OUT
CAM
BRACKET
SCREWS
UP-AND-DOWN
CAM
In-and-out adjustment Up-and-down adjustment
