12 | Sub-Zero Customer Care 800.222.7820
Panel Installation
Panel Installation

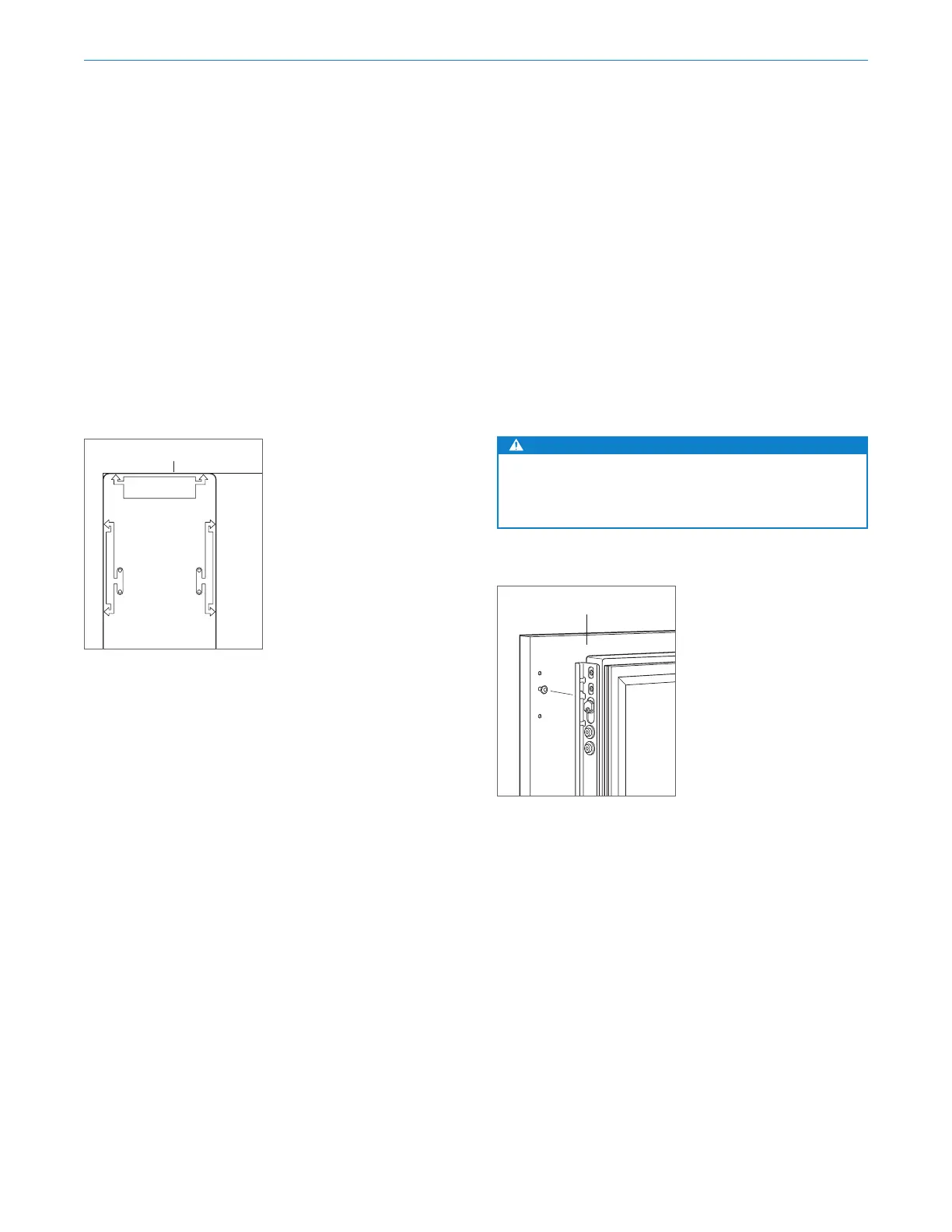

DOOR PANEL INSTALLATION
Placement of the template must be adjusted for panels
exceeding the typical dimensions.
Place the panel face down on a protected work surface.
Position the template flush with the top and sides of the
panel. Verify the correct side of the template is being used,
then mark and drill pilot holes. Refer to the illustration
below.
Use a Torx drive to partially insert a #8 x ⁄" screw into the
second hole from the top on each side of the panel. The
screws should be approximately ⁄"
(4) proud of the panel
and will support the weight of the panel during installation.
Align the support screws on the back of the panel with the
slotted holes on both door mounting brackets. Refer to
the illustration below. Opening the door slightly may help
with alignment. Once the panel is supported by the screws,
partially insert a #8 x ⁄" screw into the second hole from
the bottom on each side of the panel, but do not tighten.
CAUTION
As reveals between cabinetry and the unit decrease,
severe finger pinching can occur while the door is
closing.
BACK OF PANEL
Door panel mounting
TOP OF DOOR PANEL
TOP OF DOOR PANEL
USE THIS SIDE ON ALL
STANDARD HEIGHT DOORS
FLIP TEMPLATE
OVER FOR ADA
HEIGHT DOORS
LEFT SIDE DOOR PANEL
RIGHT SIDE DOOR PANEL
Door panel template
