Subaru Forester 2003 - Drive Belt(S) Inspection; Drive Belt(S) Replacement

PM-10
PERIODIC MAINTENANCE SERVICES
DRIVE BELT(S)
6. Drive Belt(s)
A: INSPECTION
1) Replace the belts, if cracks, fraying or wear is
found.
2) Check the drive belt tension and adjust it if nec-
essary by changing the generator installing position
and/or idler pulley installing position. <Ref. to PM-
10, REPLACEMENT, Drive Belt(s).>

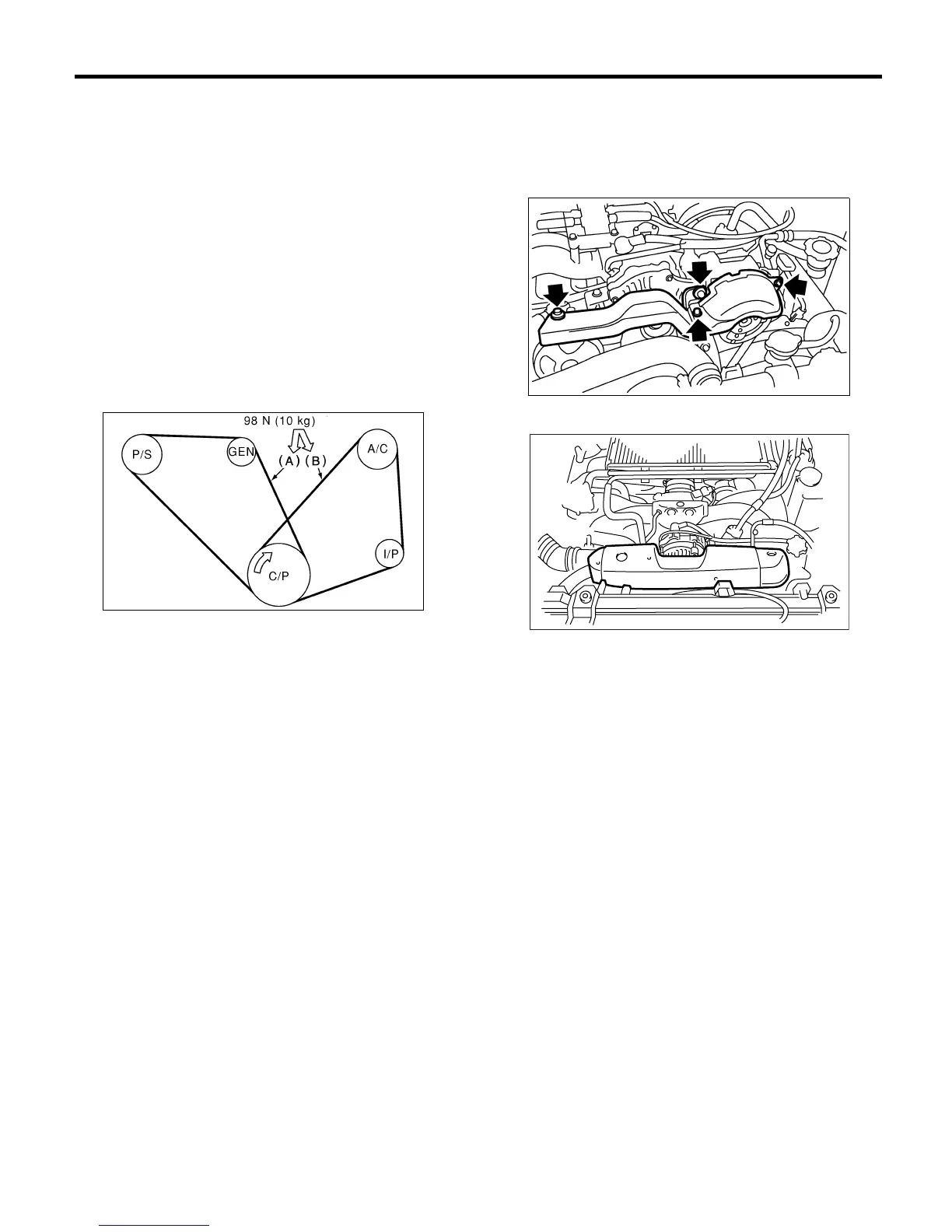

Belt tension
(A)
Replaced: 7 — 9 mm (0.276 — 0.354 in)
Reused: 9.0 — 10.0 mm (0.354 — 0.394 in)
(B)
Replaced: 7.5 — 8.5 mm (0.295 — 0.335 in)
Reused: 9.0 — 10.0 mm (0.354 — 0.394 in)
B: REPLACEMENT
1. V-BELT COVER
1) Remove the V-belt cover.
NON-TURBO MODEL
TURBO MODEL
2. FRONT SIDE BELT (DRIVING POWER
STEERING OIL PUMP AND GENERATOR)
NOTE:
Wipe off any oil or water on the belt and pulley.
1) Loosen the lock bolt (A).
2) Loosen the slider bolt (B).
3) Remove the front side belt (C).
4) Install a new belt, and tighten the slider bolt so as
to obtain the specified belt tension.
5) Tighten the lock bolt (A).
(A) Front side belt
(B) Rear side belt
C/P Crankshaft pulley
GEN Generator
P/S Power steering oil pump pulley
A/C Air conditioning compressor pulley
I/P Idler pulley
PM-00002
PM-00003
SC-00096
