PM-17
PERIODIC MAINTENANCE SERVICES

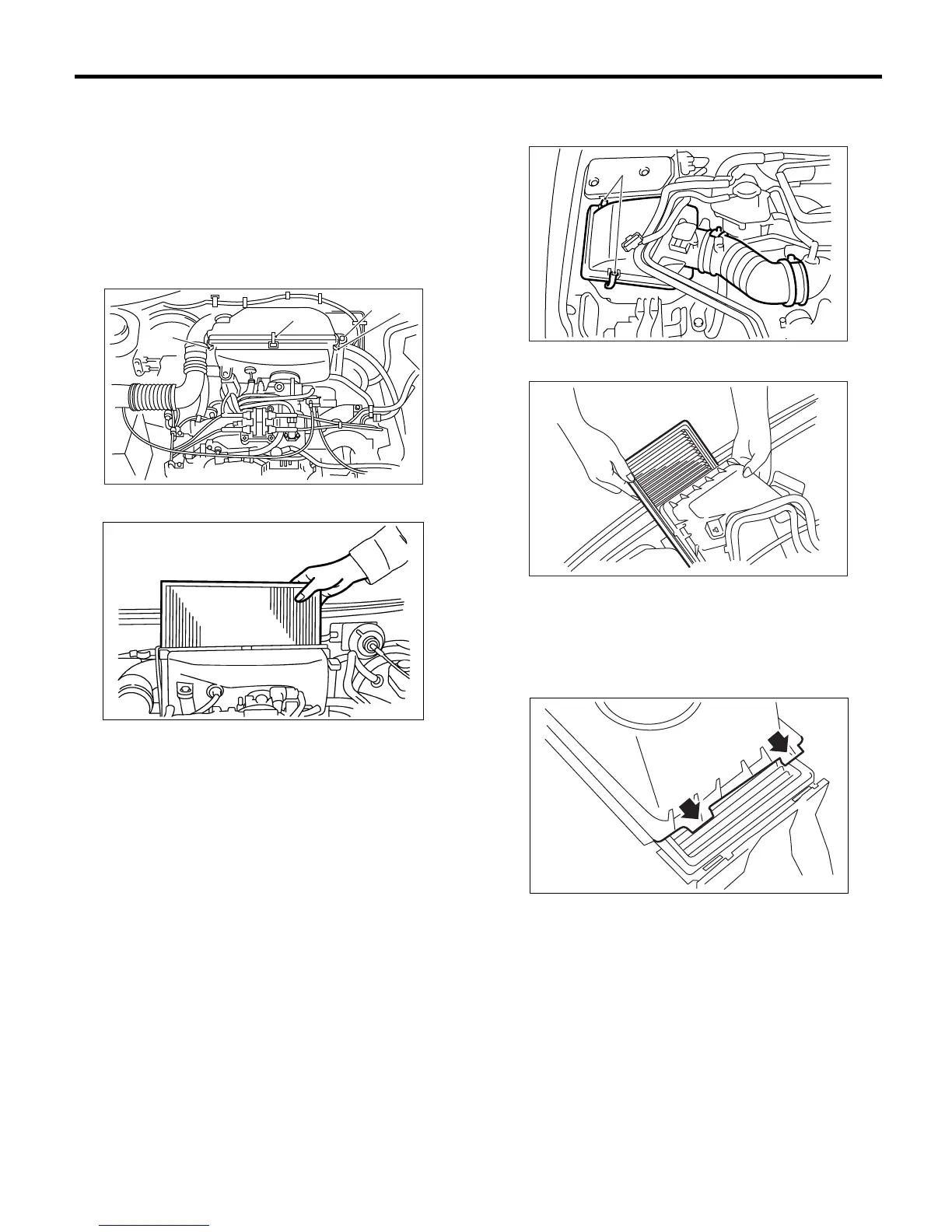

AIR CLEANER ELEMENT
10.Air Cleaner Element
A: REPLACEMENT
1. NON-TURBO MODEL
1) Remove the air intake duct from air cleaner
case.
2) Remove the bolt (A) which installs air cleaner
case to stays.
3) Remove the clip (B) above the air cleaner case.
4) Remove the air cleaner.
5) Install in the reverse order of removal.
CAUTION:
Fasten with a clip after inserting the lower tab
of the case.
2. TURBO MODEL
1) Remove the clip (B) above the air cleaner case.
2) Remove the air cleaner.
3) Install in the reverse order of removal.
CAUTION:
Align the protruding portion of air cleaner up-
per cover with holes of air cleaner lower case,
then secure upper cover to case.
IN-00039
(B)
(B)
(B)
(A)
PM-00142
(B)
PM-00099
PM-00098
PM-00100
