PM-22
PERIODIC MAINTENANCE SERVICES
TRANSMISSION OIL
14.Transmission Oil
A: REPLACEMENT
1. MANUAL TRANSMISSION

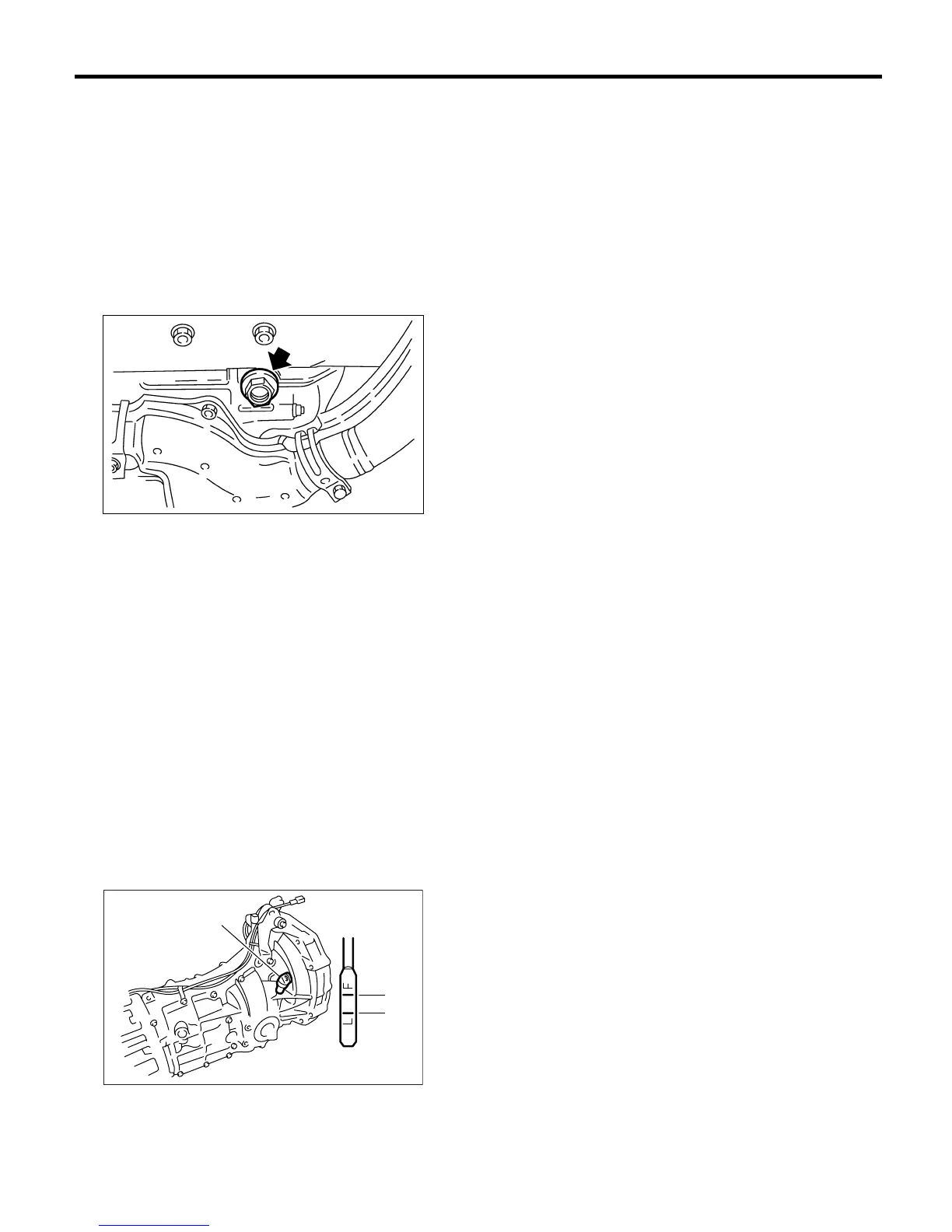

1) Drain the gear oil by removing drain plug after al-
lowing the engine to cool for 3 to 4 hours.
NOTE:
• Before starting work, cool off the engine well.
• If transmission gear oil adheres to the exhaust
pipe, wipe it off completely.
2) Replace the gasket with new one, and then tight-
en it to the specified torque.
Tightening torque:
44 N·m (4.5 kgf-m, 32.5 ft-lb)
3) Fill transmission gear oil through the oil level
gauge hole up to the upper point of level gauge.
NOTE:
Each oil manufacturer has its base oil and addi-
tives. Thus, do not mix two or more brands.
Gear oil capacity:
Non-turbo model
4.0 2 (4.2 US qt, 3.5 Imp qt)
Turbo model
Without oil pump
3.5 2 (3.7 US qt, 3.1 Imp qt)
With oil pump
3.9 2 (4.1 US qt, 3.4 Imp qt)
(A) Oil level gauge
(B) Upper level
(C) Lower level
PM-00029
PM-00030
(B)
(C)
(A)
