Subaru Forester 2003 - Page 67

PM-13

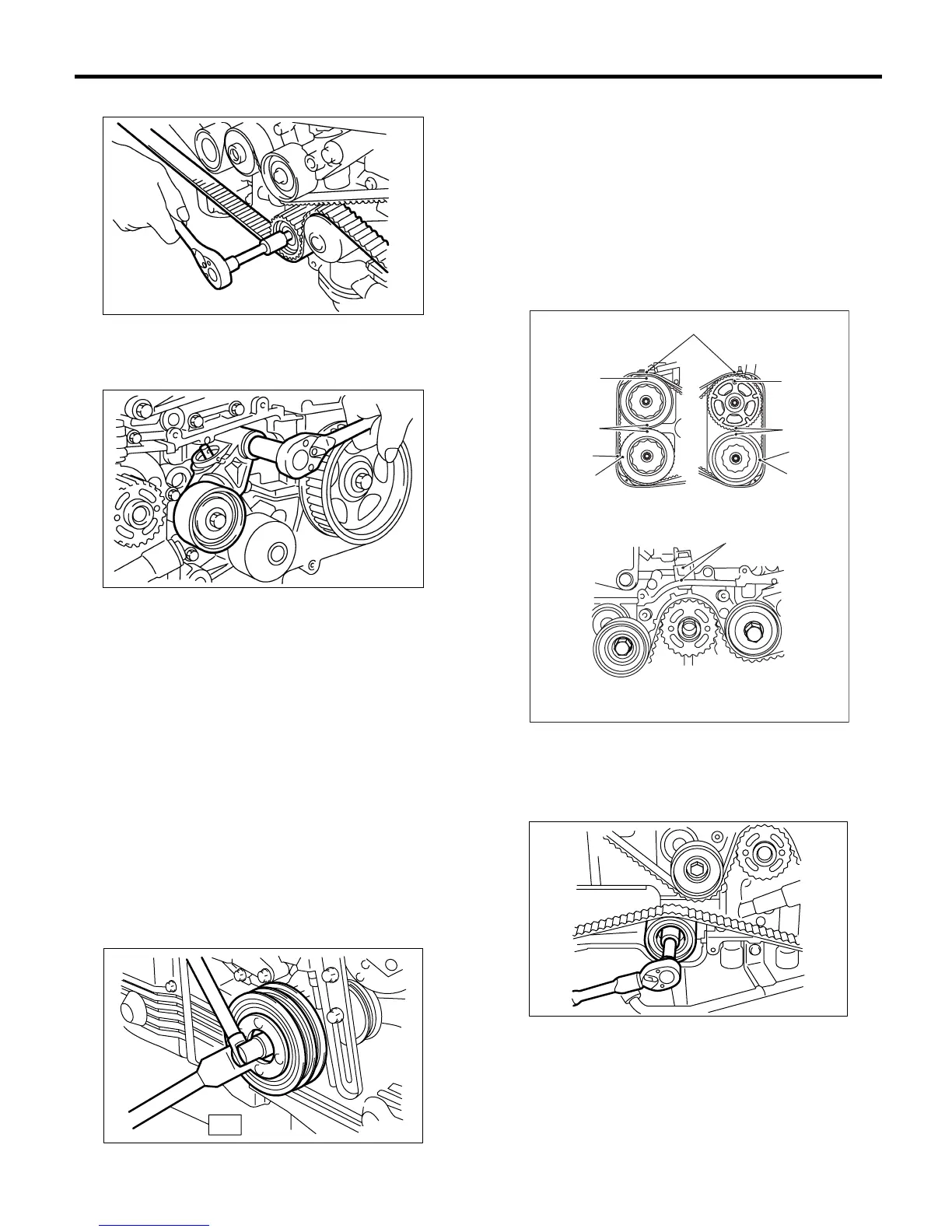

PERIODIC MAINTENANCE SERVICES
CAMSHAFT DRIVE BELT
13) Remove the belt idler (No. 2).
14) Remove the timing belt.
15) Remove the automatic belt tension adjuster as-
sembly.
16) Install in the reverse order of removal. <Ref. to
ME(SOHC)-47, INSTALLATION, Timing Belt As-
sembly.>
2. TURBO MODEL
1) Remove the radiator fan and air conditioner fan.
<Ref. to CO(SOHC)-34, Radiator Main Fan and
Fan Motor.>,<Ref. to CO(SOHC)-40, Radiator Sub
Fan and Fan Motor.>
2) Protect the radiator with cardboard and blanket.
3) Remove the V-belts. <Ref. to ME(TURBO)-44,
V-belt.>
4) Remove the air conditioning compressor drive
belt tensioner.
5) Remove the pulley bolt. To lock the crankshaft
use ST.
ST 499977300 CRANKSHAFT PULLEY
WRENCH
6) Remove the crankshaft pulley.
7) Remove the air conditioning compressor drive
belt tensioner.
8) Remove the belt cover (LH).
9) Remove the belt cover (RH).
10) Remove the front belt cover.
11) Turn the crankshaft and align alignment marks
on crankshaft, and right and left camshaft sprock-
ets with notches of belt cover and cylinder block. To
turn the crankshaft, use ST.
ST 499987500 CRANKSHAFT SOCKET
12) Remove the belt idler.
13) Remove the timing belt.
PM-00010
PM-00011
ST
PM-00093
(A) Notch
(B) Alignment mark
PM-00094
(A)
(B)
(B)
(B)
(A)
(B)
(B)
(B)
(A)
(B)
PM-00095
