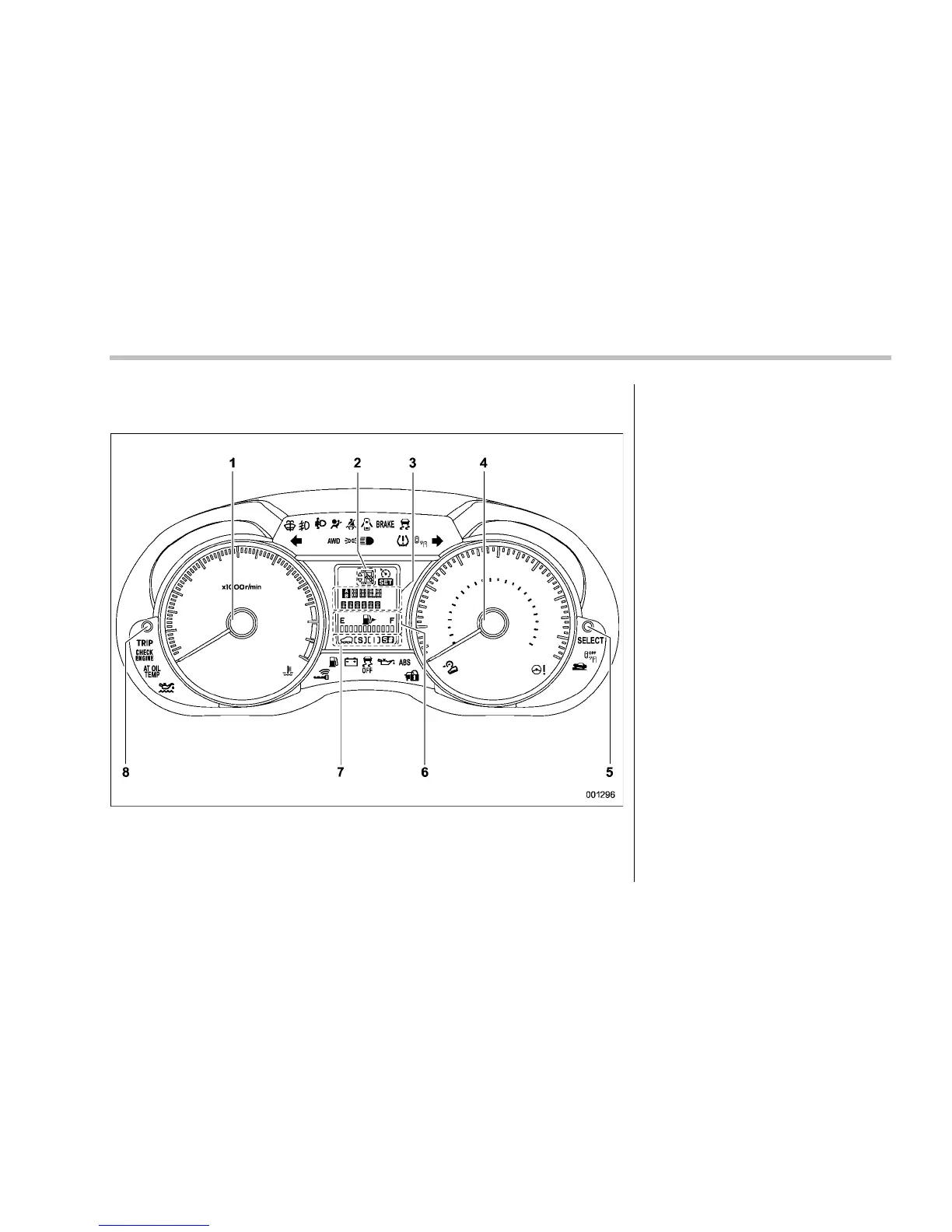

& Combination meter
! U.S.-spec. models (type A)
The illustration above is a typical example. For some models, the combination meter
may be slightly different than that shown in the illustration.
1) Tachometer (page 3-11)
2) Select lever/gear position indicator
(page 3-31)
3) Trip meter and odometer (page 3-10)
4) Speedometer (page 3-10)
5) Information display selection knob
(page 3-34)
6) Fuel gauge (page 3-12)
7) X-mode (if equipped) (page 7 -42)/SI-
DRIVE (if equipped) (page 7-32)
8) Trip meter A/B selection and trip meter
reset knob (page 3-10)
– CONTINUED –
19
