Subaru LEGACY 2004 - Starter

SC(H4SO 2.0)-6
STARTING/CHARGING SYSTEMS
Starter

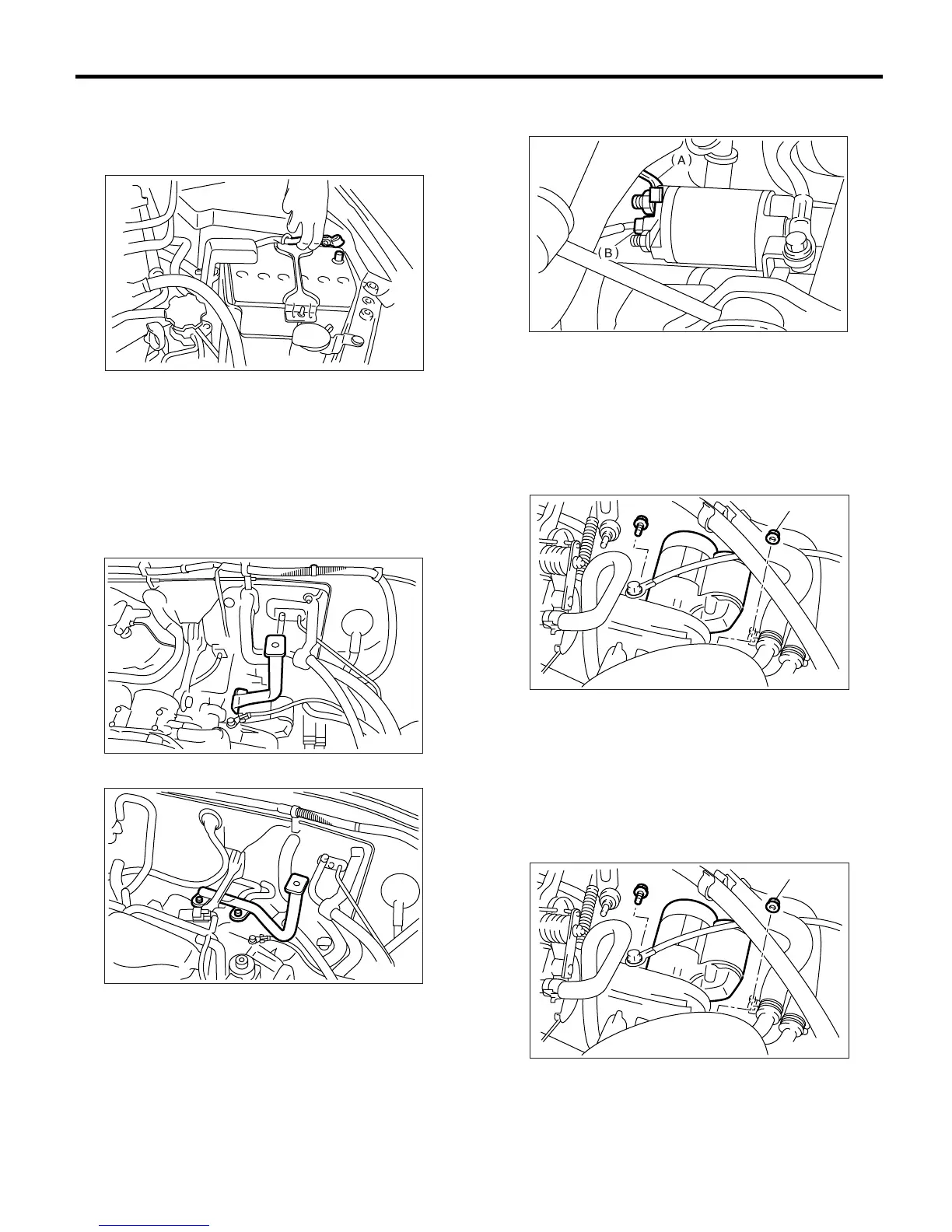

2. Starter
A: REMOVAL
1) Disconnect the ground cable from battery.
2) Remove the air intake chamber. (Non-turbo
model) <Ref. to IN(H4SO 2.0)-8, REMOVAL, Air In-
take Chamber.>
3) Remove the intercooler. (Turbo model)
<Ref. to IN(H4DOTC)-12, REMOVAL, Intercool-
er.>
4) Remove the air intake chamber stay LH. (Non-
turbo model).
• MT model
• AT model
5) Disconnect the connector and terminal from
starter.
6) Remove the starter from transmission.
NOTE:
In case of MT model, the bolt is used in place of nut
(A) shown in the figure.
B: INSTALLATION
Install in the reverse order of removal.
NOTE:
In case of MT model, the bolt is used in place of nut
(A) shown in the figure.
Tightening torque:
50 N
⋅ m (5.1 kgf-m, 37 ft-lb)
IN-00203
SC-00176
SC-00177
(A) Terminals
(B) Connector
SC-0000
6
SC-00184
(A)
SC-00184
(A)
