Subaru LEGACY 2004 - Tumble Generator Valve Assembly

FU(H4SO 2.5)-28
FUEL INJECTION (FUEL SYSTEMS)
Tumble Generator Valve Assembly
12.Tumble Generator Valve As-
sembly
A: REMOVAL
NOTE:
This component is installed to EC, EK and K4 mod-
el.
1) Release the fuel pressure.
<Ref. to FU(H4SO 2.5)-40, RELEASING OF FUEL
PRESSURE, PROCEDURE, Fuel.>
2) Open the fuel filler flap lid, and remove the fuel
filler cap.

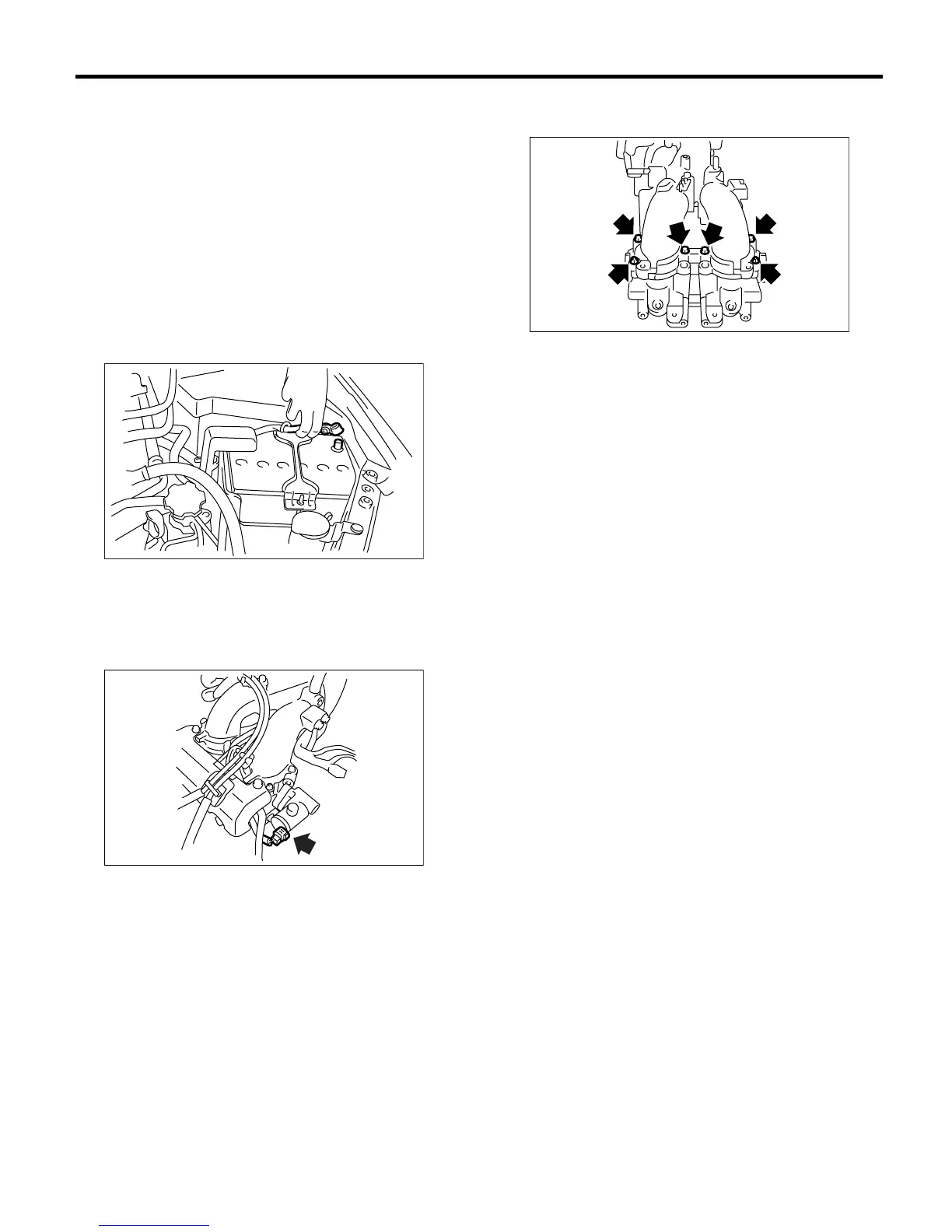

3) Disconnect the ground cable from battery.
4) Remove the intake manifold.
<Ref. to FU(H4SO 2.5)-12, REMOVAL, Intake
Manifold.>
5) Disconnect the connector from tumble generator
valve actuator.
6) Remove the fuel injectors.
<Ref. to FU(H4SO 2.5)-31, REMOVAL, Fuel In-
jector.>
7) Remove the tumble generator valve body from
intake manifold.
B: INSTALLATION
Install in the reverse order of removal.
NOTE:
Use a new gasket.
Tightening torque:
8.75 N
⋅ m (0.89 kgf-m, 6.5 ft-lb)
IN-00203
FU-01107
FU-01104
