Subaru LEGACY 2004 - Air Intake System

FU(H4SO 2.0)-4
FUEL INJECTION (FUEL SYSTEMS)
General Description
2. AIR INTAKE SYSTEM
(1) Intake manifold (10) O-ring (19) PCV valve
(2) Gasket (11) Purge control solenoid valve
(3) Guide pin (12) Plug cord holder Tightening torque: N
⋅ m (kgf-m, ft-lb)
(4) EGR valve (EC, EK, K4 model) (13) Nipple (LHD model) T1: 1.5 (0.15, 1.1)
(5) Fuel pipe protector RH (14) Nipple (RHD model) T2: 6.4 (0.65, 4.7)
(6) Fuel pipe protector LH (15) Fuel pipe ASSY T3: 17 (1.7, 12.5)
(7) Fuel injector pipe (16) Fuel hose T4: 19 (1.9, 13.7)
(8) Fuel injector (17) Clip T5: 25 (2.5, 18.1)
(9) O-ring (18) Clamp T6: 23 (2.3, 17.0)

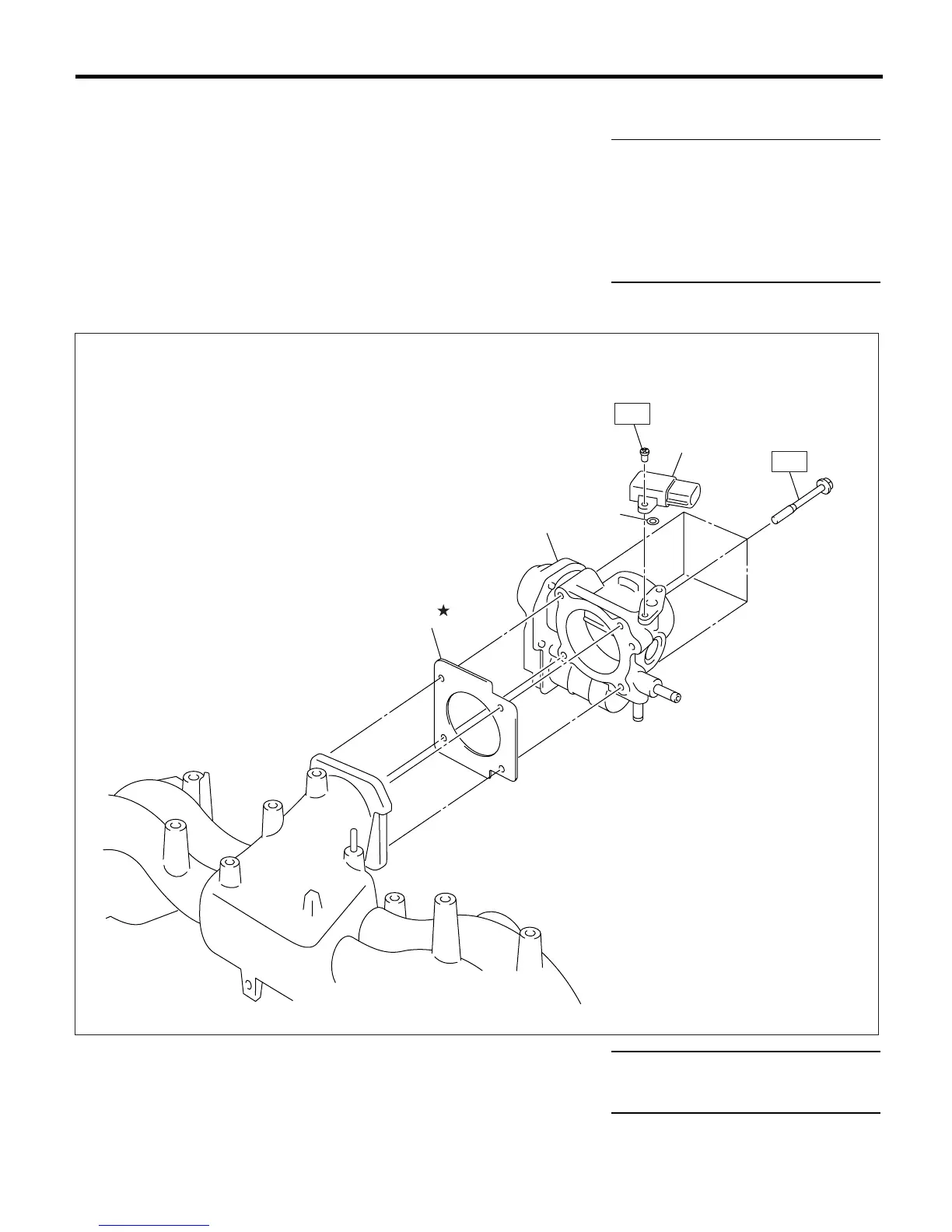

(1) Gasket (4) O-ring Tightening torque: N
⋅ m (kgf-m, ft-lb)
(2) Throttle body T1: 2.0 (0.20, 1.5)
(3) Manifold absolute pressure sensor T2: 8 (0.8, 5.8)
FU-02057
T2
(3)
(4)
T1
(2)
(1)
