SUBITO 314A / 314B: ASSEMBLY GUIDE
9. Rear Derailleur Hanger Adjustment

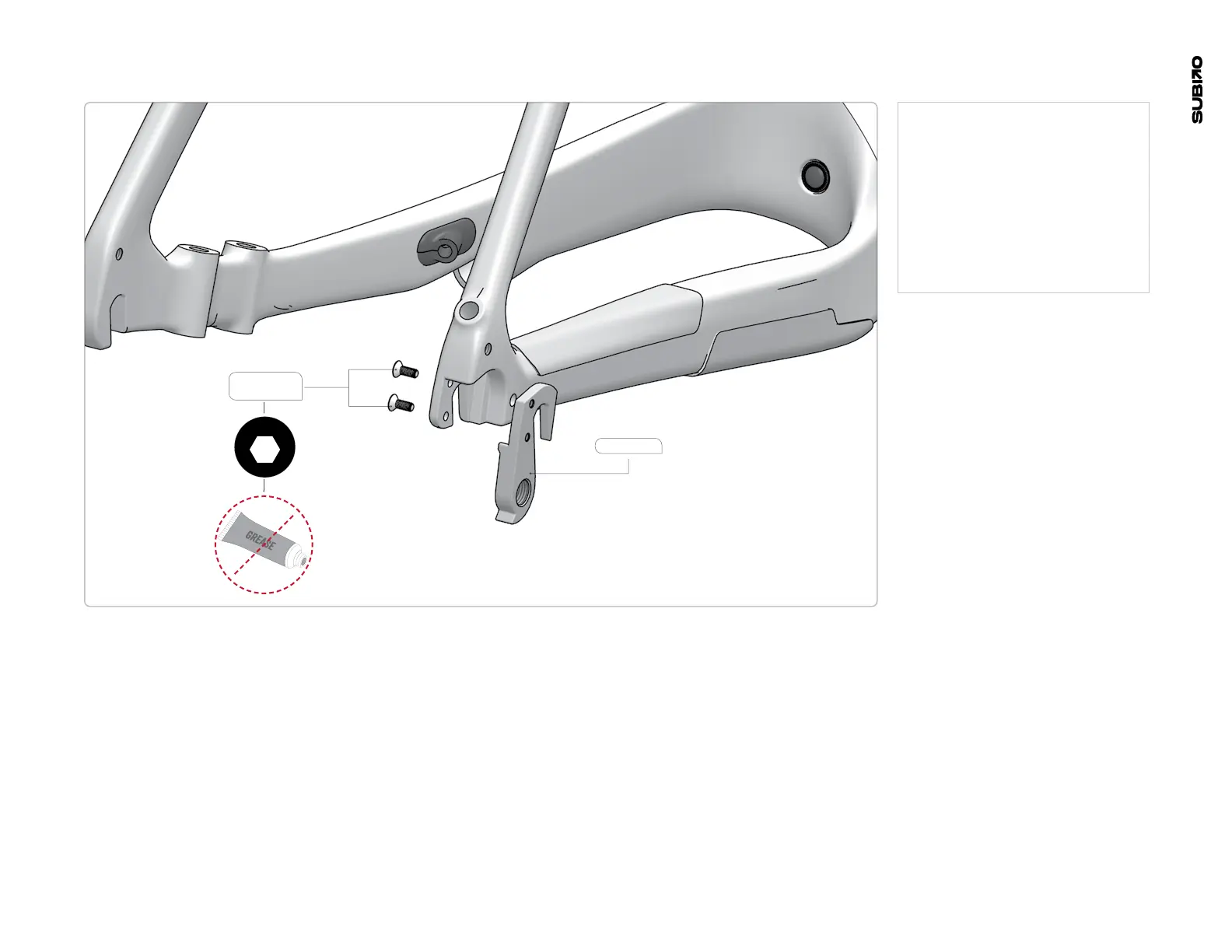

1. Assemble the rear derailleur
hanger (SKU: 81235) on the frame
with the two bolts (Flat head cap
screw M3 x 8mm SKU: 81253).
2. Tighten bolts to 2Nm, do not apply
grease on the thread.
3. Use a rear derailleur hanger
alignment gauge to align the
rear derailleur hanger.
For assistance, visit Park Tool’s
website at:
https://www.parktool.com/blog/repair-help/
rear-derailleur-hanger-alignment
