SUBITO ARGON 18 - Chain Catcher; Select Correct Chain Catcher; Position Chain Catcher Tip

46
SUBITO 314A / 314B: ASSEMBLY GUIDE

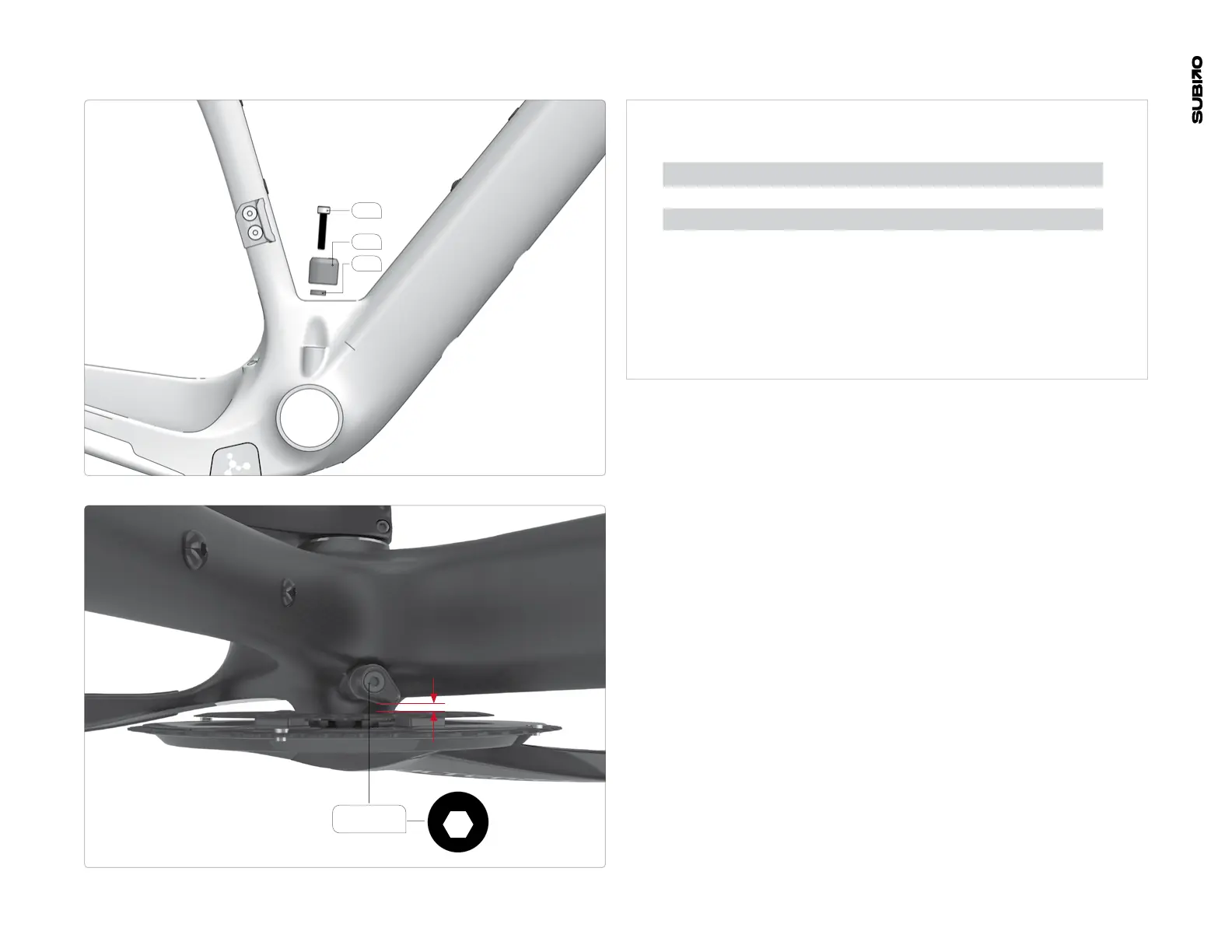

18. Chain catcher
1. Select the appropriate chain catcher (SKU: 80806). The selection of the correct
chain catcher is made according to the size of the small chainring.
2. Insert the M5 x 25mm screw (a) in the chain catcher (b) and place the lock
washer (c) between the frame and the piece. Secure the assembly pointing
forward, loose enough to be able to adjust the parts.
3. Install the crank according to manufacturer's specifications.
4. Place the tip of the chain catcher at approximately 2mm to the inner side
of the small chain ring and torque at 3Nm.
small chain ring size chain catcher
30-32 Small
34 and more Large
2mm
80806
M5 x 25mm
A
C
B
