SUBITO ARGON 18 - Front Derailleur Hanger Assembly; Mount Front Derailleur Hanger

17

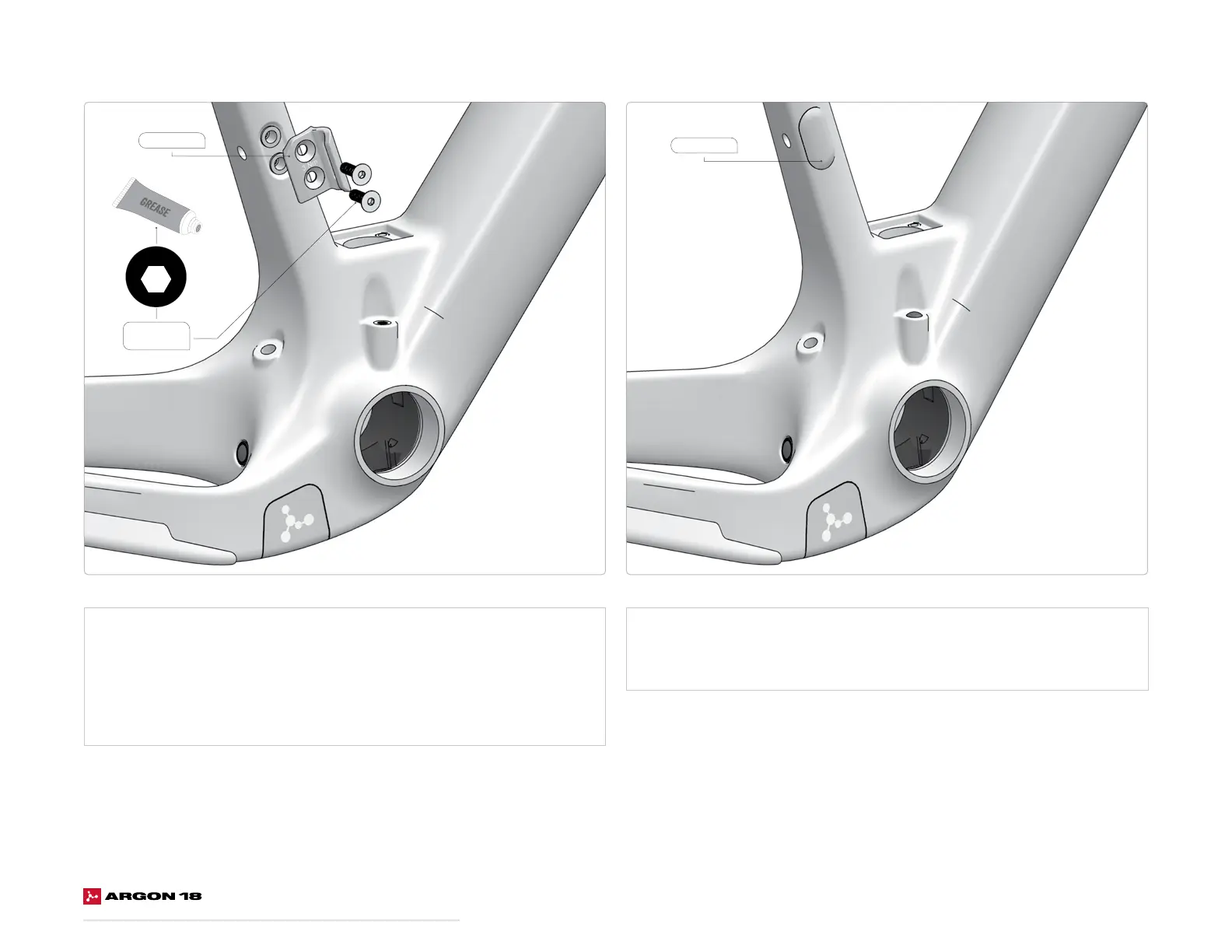

1. Apply grease on the thread
of both M5 x 16mm bolts (SKU: 81248).
2. Assemble the front derailleur hanger (SKU: 81238) on the frame with
the two bolts.
3. Tighten bolts to 3Nm.
Using a Single Chainring Set-Up:
1. Install the FD plug (SKU: 81240) to cover the hole.
81248
M5 x 16mm
81238
81240
